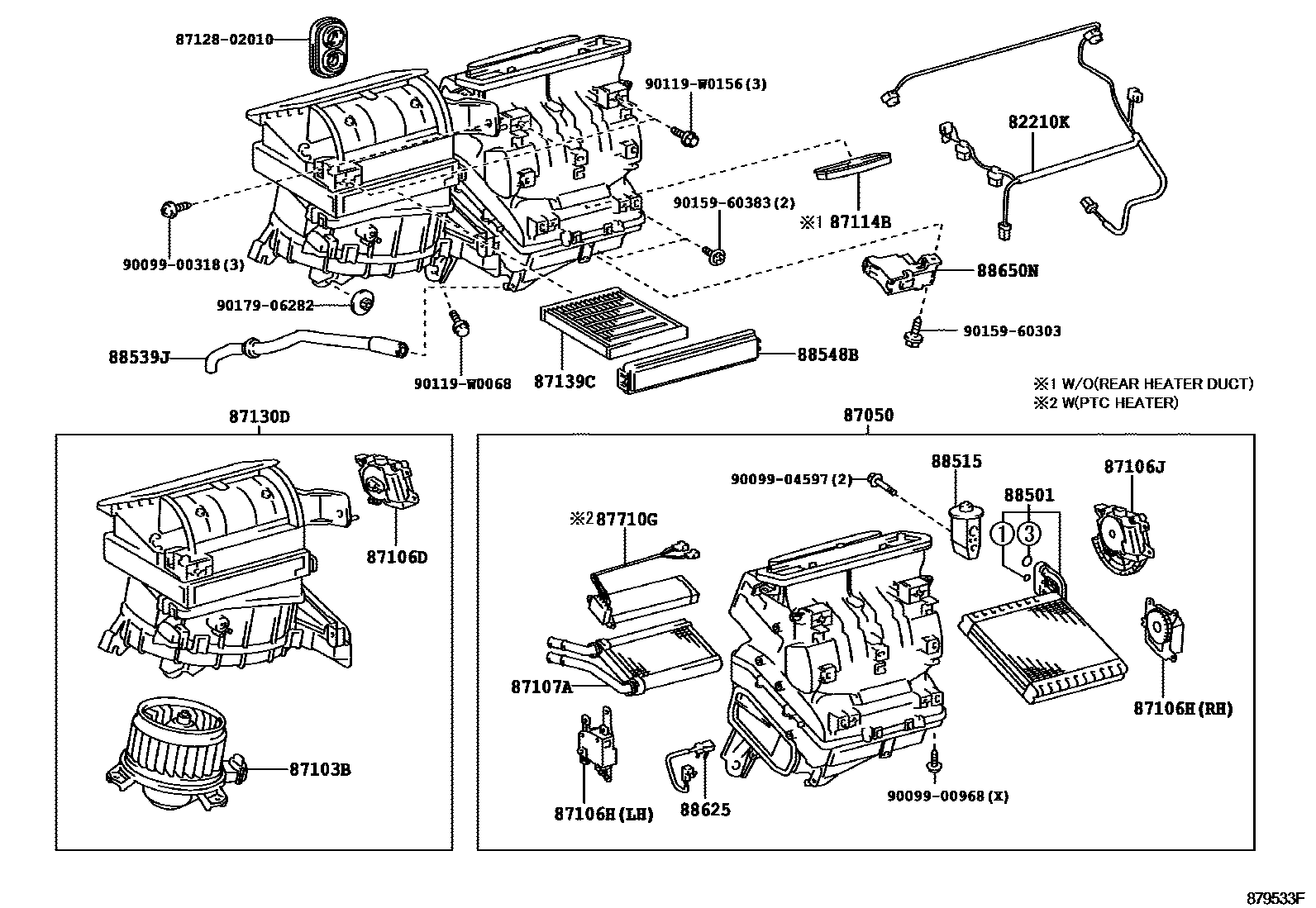

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO DUAL AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-02020iADE150,ZRE152..RX200706-201001

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02410iNRE150..TERRA;ZRE151..SOL,TERRA200706-201210

main87050-02420iADE150..RX200706-201210

main87050-02830iZRE152..RX200706-201001

main87050-02840iADE150..RX200706-200912

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02120iZZE150200706-201001

main87103-02130iZRE152..RX200706-201001

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-02150iADE150..RS200706-201207

sub87106-02300

main87106-02160iADE150..RX200706-201001

main87106-02300iADE150,NRE150,ZRE151201208-201210

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-02120iZRE152..RX200706-201001

RH

sub87106-02270

main87106-02130iADE150,ZRE152..RX200706-201001

LH

sub87106-02280

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-02140iADE150..RX200706-201001

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02150iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

87114BCOVER, HEATER

main87114-02010iZZE150200706-201001

87130DBLOWER ASSY

main87130-02250iZRE15#,ZZE150..RS,RT200706-200807

sub87130-02251

main87130-02251iZRE151..(6F,6FS)..(RS,RT);NRE150,ZRE152..RS,SOL,TERRA200808-201001

main87130-02260iADE150..RS200706-200807

sub87130-02261

main87130-02261iADE150..RX200808-201001

main87130-02270iZRE152..RX200706-200807

sub87130-02271

main87130-02271iZRE152..RX200808-201001

main87130-02280iADE150..RX200706-200807

sub87130-02281

main87130-02281iADE150..RX200808-201001

87139CFILTER, CLEAN AIR

main87139-02020iZZE150200706-201001

87710GQUICK HEATER ASSY

main87710-02010iADE150200706-201001

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02200iADE150,ZRE15#,ZZE150200706-200809

main88501-02201iZZE150200809-201107

sub88501-02202

main88501-02202iADE150,NRE150,ZRE151201108

88515VALVE, COOLER EXPANSION

main88515-02150iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201110

main88515-02520iADE150,NRE150,ZRE151201111

88539JHOSE, DRAIN COOLER

main88539-02100iZZE150200706-201111

main88539-02370iADE150,NRE150,ZRE151201112

88548BCASE, AIR FILTER

main88548-02060iZZE150200706-201001

88625THERMISTOR, COOLER, NO.1

main88625-02110iZRE15#200706-201001

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02400iZRE15#,ZZE150..RS,RT200706-200902

main88650-02410iADE150..RS200706-200903

main88650-02420iZRE152..RX200706-200902

main88650-02430iADE150..RX200706-200903

main88650-02630iNRE150..TERRA;ZRE151..SOL,TERRA200811-201001

main88650-02640iADE150..RS200903-201001

main88650-02650iZRE152..RX200902-201001

main88650-02660iADE150..RX200903-201001

8712802010GROMMET, HEATER

main87128-02010

9009900318

main90099-00318

9009900968

main90099-00968

9009904597

main90099-04597

90119W0068

main90119-W0068

90119W0156

main90119-W0156

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

26 parts on this diagram · 3 diagrams in section
