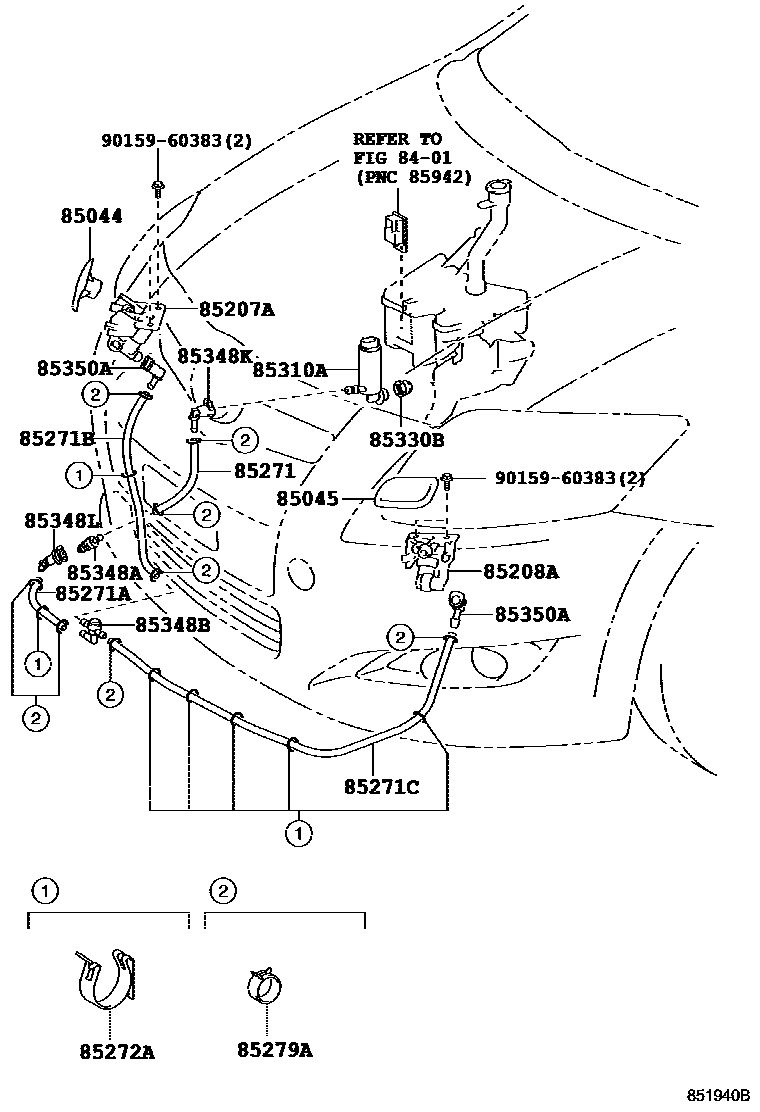

HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
main85044-02905
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
main85045-02906
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
85272ACLAMP, HEADLAMP CLEANER, NO.1
85279AJOINT, HEADLAMP CLEANER HOSE
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
9015960383
main90159-60383
19 parts on this diagram · 1 diagram in section
