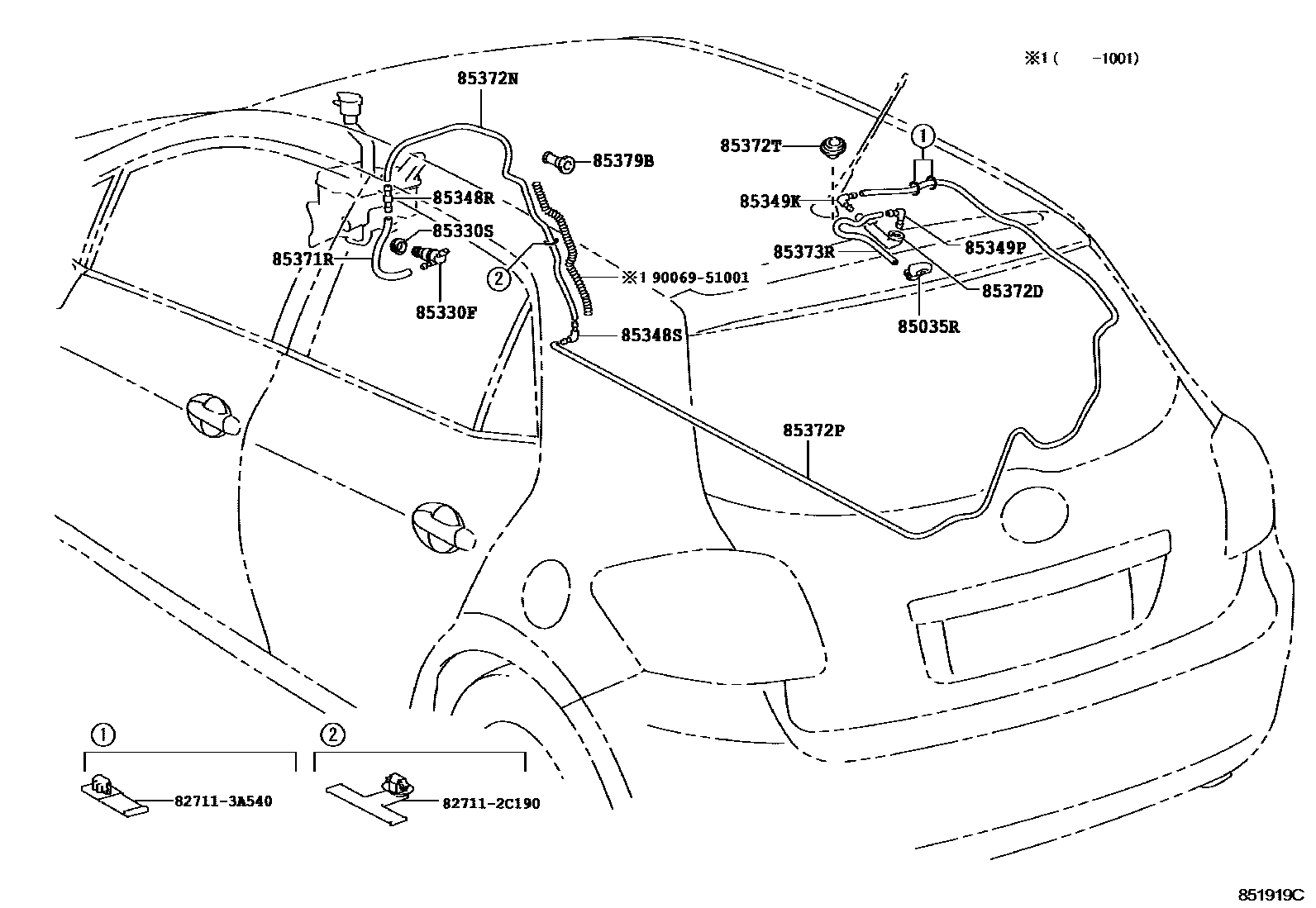

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-12070iZZE150200706-201001

sub85391-42020

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-02040iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

85330SBUSH, REAR WASHER JAR

main90069-20005iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-05050iZZE150200706-201001

85348SJOINT, REAR WASHER ELBOW, NO.1

main85395-05020iZZE150200706-201001

85349KJOINT, REAR WASHER ELBOW, NO.2

main85395-05020iZZE150200706-201001

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iZZE150200706-201001

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-16009iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH

main90069-16009iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

85372DGROMMET, REAR WASHER HOSE

main85373-0D020iADE150,ZRE15#,ZZE150200706-200710

sub85373-0D021

main85373-0D021iZZE150200711-201008

sub85373-0D022

main85373-0D022iADE150,NRE150,ZRE151201009

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-46012iZZE150200706-201001

L=3910

sub90069-16011

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90069-46012iZZE150200706-201001

L=3910

sub90069-16011

85372TGROMMET, WASHER

main85373-0D010iZZE150200706-201001

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iZZE150200706-201001

L=1000(*H,L=190)

85379BGROMMET, WASHER, A

main85379-12850iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C190

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

9006951001

main90069-51001

17 parts on this diagram · 1 diagram in section
