SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1COWL 0010 1INSTRUMENT PANEL 0011 1STEERING 0013 1STEERING 0014 1DOOR,ROOF,FLOOR & BACK DOOR

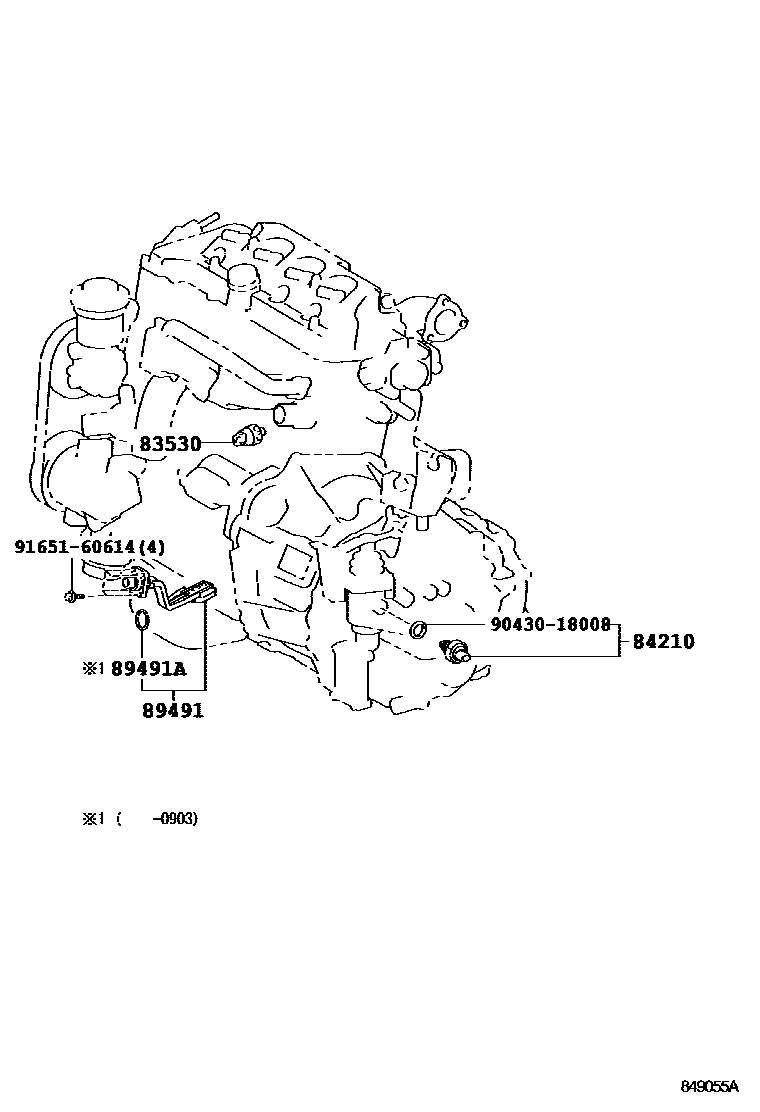

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iZRE15#,ZZE150200706-201001

VALEO

main83530-28010iADE150..RX200706-201001

DENSO

main83530-28020iNRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

DENSO

main83530-60010iADE150200706-201001

YAZAKI

main83530-60020iNRE150..TERRA;ZRE151..SOL,TERRA200706-201001

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iADE150;ZRE151..5FS200706-201206

sub84210-52050

main84210-52010iZRE15#,ZZE150..5F,6F200706-200902

main84210-52050iADE150201205-201210

89491SENSOR, ENGINE OIL LEVEL

main89491-20120iADE150200706-201210

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iADE150200706-200903

9043018008

main90430-18008

9165160614

main91651-60614

6 parts on this diagram · 13 diagrams in section
