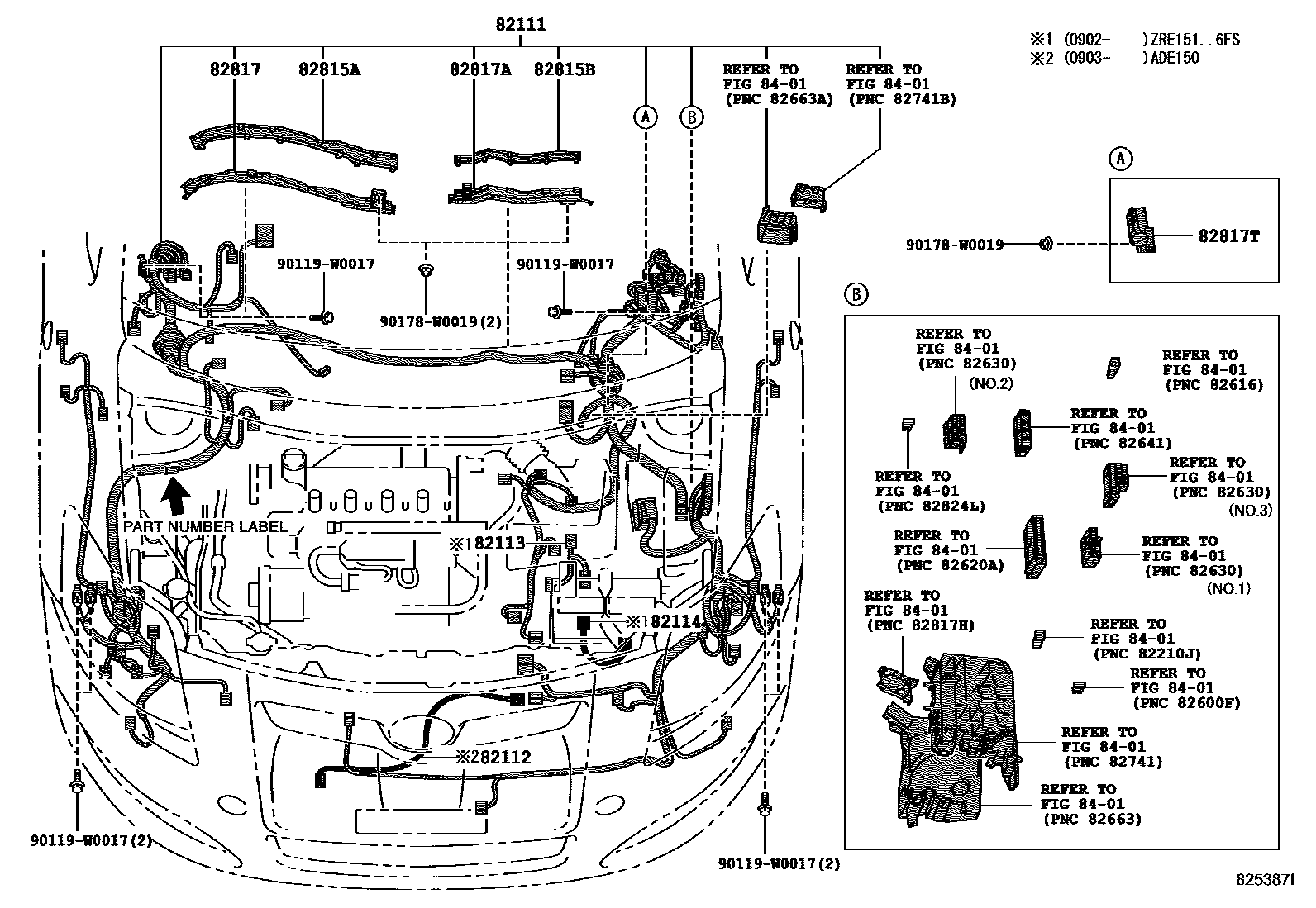

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0008 1ENGINE 0009 1INSTRUMENT PANEL 0010 1DOOR 0011 1FLOOR & ROOF 0012 1CLAMP & BRACKET 0013 1CLAMP & BRACKET 0014 1CONNECTOR 1/2 0015 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-02Z20iZZE150200706-200811

main82111-02Z30iADE150200706-200903

main82111-02Z40iADE150..RX200706-200903

HEADLAMP-DISCHARGE

main82111-02Z50iZRE152..RX;ZRE151..5F..RS200706-200902

CRUISE CONTROL-WITH

main82111-02Z60iZRE152..RX;ZRE151..5F..RS200706-200902

CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE

main82111-02Z70iZRE151..5FS200706-200902

main82111-02Z80iZRE151..5FS..RS200706-200902

HEADLAMP-DISCHARGE

main82111-0Z520iZRE15#..5F,6F200706-200902

main82111-0Z530iZRE152..RX;ZRE151..5F..RS200706-200902

HEADLAMP-DISCHARGE

main82111-0ZL00iADE150200903-201001

main82111-0ZL40iADE150..RX200903-201001

HEADLAMP-DISCHARGE

main82111-0ZL50iZRE15#..6F..(RS,RT,RX)200902-201001

main82111-0ZL60iZRE152..RX;ZRE151..6F..RS200902-201001

HEADLAMP-DISCHARGE

main82111-0ZL70iZRE151..6FS200902-201001

main82111-0ZL80iZRE151..6FS..RS200902-201001

HEADLAMP-DISCHARGE

main82111-0ZM30iNRE150200811-201001

main82111-0ZZ60iADE150..RX200912-201102

main82111-0ZZ60iADE150201102-201203

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main82111-0ZZ61iADE150201203

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main82111-0ZZ80iZRE151..SOL,TERRA200912-201102

main82111-0ZZ80iZRE151..SOL201102-201203

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main82111-0ZZ81iZRE151..SOL201203

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main82115-0ZA30iADE150201102-201203

main82115-0ZA31iADE150201203

main82115-0ZA50iZRE151201102-201203

main82115-0ZA51iZRE151201203

main82115-0ZA60iNRE150201102-201203

main82115-0ZA61iNRE150201203

main82116-02540iNRE150..TERRA200912-201102

82112WIRE, ENGINE ROOM, NO.2

main82112-05010iADE150200903-201210

82113WIRE, ENGINE ROOM, NO.3

main82113-02010iZRE151..6FS200902-201001

82114WIRE, ENGINE ROOM, NO.4

main82114-02010iZRE151..6FS200902-201001

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12150iZZE150200706-201001

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12160iZZE150200706-201001

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12B10iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201001

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12B20iZZE150200706-201001

82817TPROTECTOR, WIRING HARNESS, NO.15

main82817-12J30iZZE150200801-201001

8401

90119W0017

main90119-W0017

90178W0019

main90178-W0019

12 parts on this diagram · 14 diagrams in section
