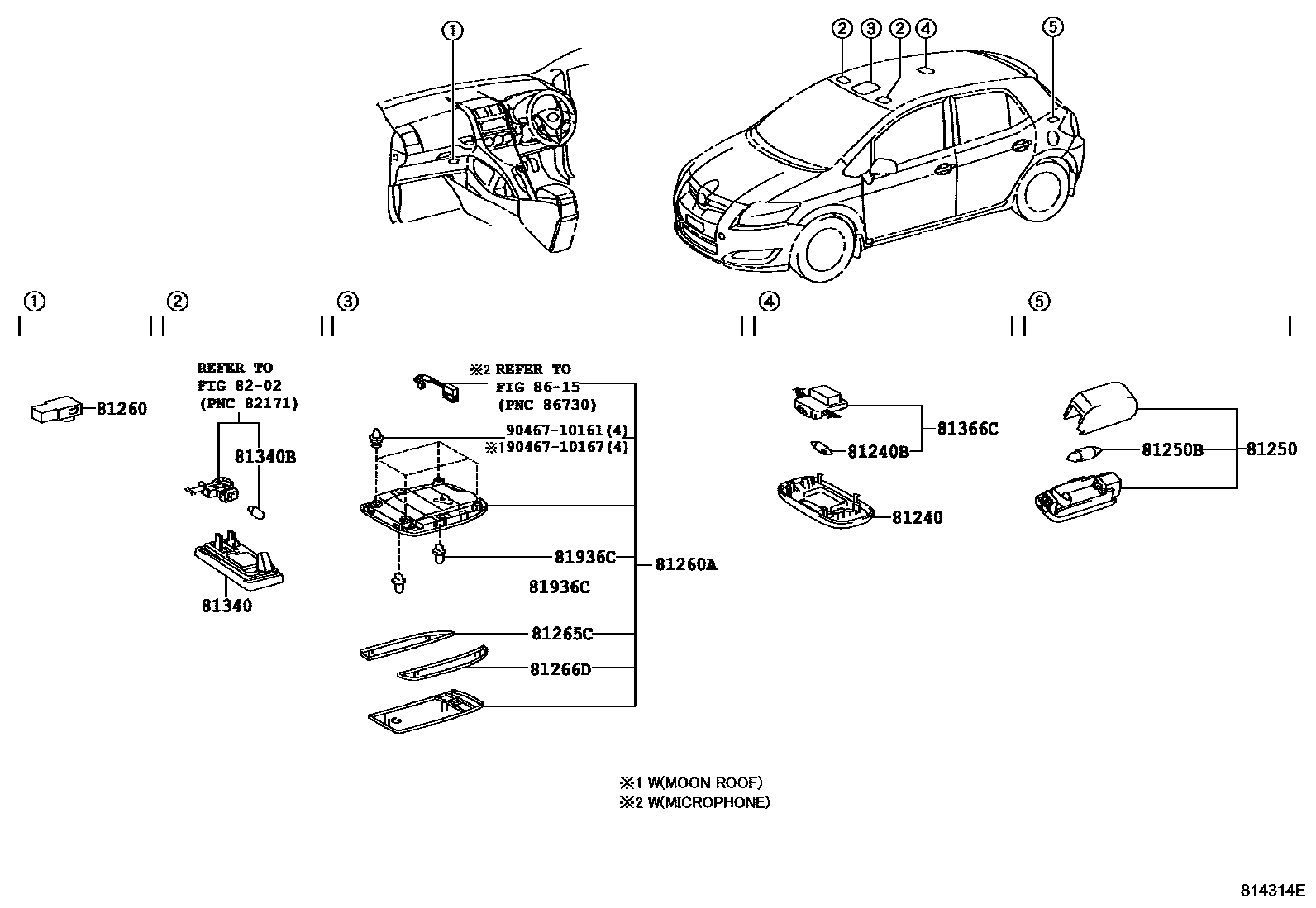

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

LT.GRAY,TRIM1#

main81240-52040-E0iADE150,ZRE151..RX,SOL200706-201210

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZZE150200706-201001

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81240-05041iZRE15#200706-201010

sub81330-05050

main81330-05050iADE150,NRE150,ZRE151201010

sub81330-02060

81250BBULB, ROOM LAMP, NO.2

main90981-WE002iZZE150200706-201001

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-48010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

81260ALAMP ASSY, MAP

main81260-02100-B0iADE150,ZRE151..RX,SOL200706-201210

LT.GRAY,TRIM1#

main81260-02100-B0iADE150,ZRE151..RX,SOL200912-201210

RADIOLESS 6SPEAKER,LT.GRAY,TRIM1#

main81260-02100-B0iNRE150,ZRE151..TERRA200912-201210

CD 6SPEAKER(MULTI),LT.GRAY,TRIM1#

main81260-02100-E0iADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS200706-201001

GREGE,TRIM4#

main81260-02140-B0iADE150,ZRE151..RX,SOL200912-201210

LT.GRAY,TRIM1#

main81260-02140-B0iADE150,ZRE151..RX,SOL200912-201210

CD BLUETOOTH 6SPEAKER(MULTI),LT.GRAY,TRIM1#

main81260-02140-E0iADE150,ZRE151..RX,SOL200912-201210

GREGE,TRIM4#

81265CLENS, MAP LAMP, NO.1

main81265-02100iZZE150200706-201001

81266DLENS, MAP LAMP, NO.2

main81266-02100iZZE150200706-201001

81340LAMP ASSY, VANITY

main81340-30100-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

LT.GRAY

main81340-30100-B0iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

LT.GRAY,TRIM1#

main81340-30100-E1iADE150,ZRE151..RX,SOL200912-201210

GREGE,TRIM4#

81340BBULB (FOR VANITY LAMP)

main90981-11062iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

81936CBULB ASSY

main81936-02020iZZE150200706-201001

8202

8615

9046710161

main90467-10161

9046710167

main90467-10167

16 parts on this diagram · 1 diagram in section
