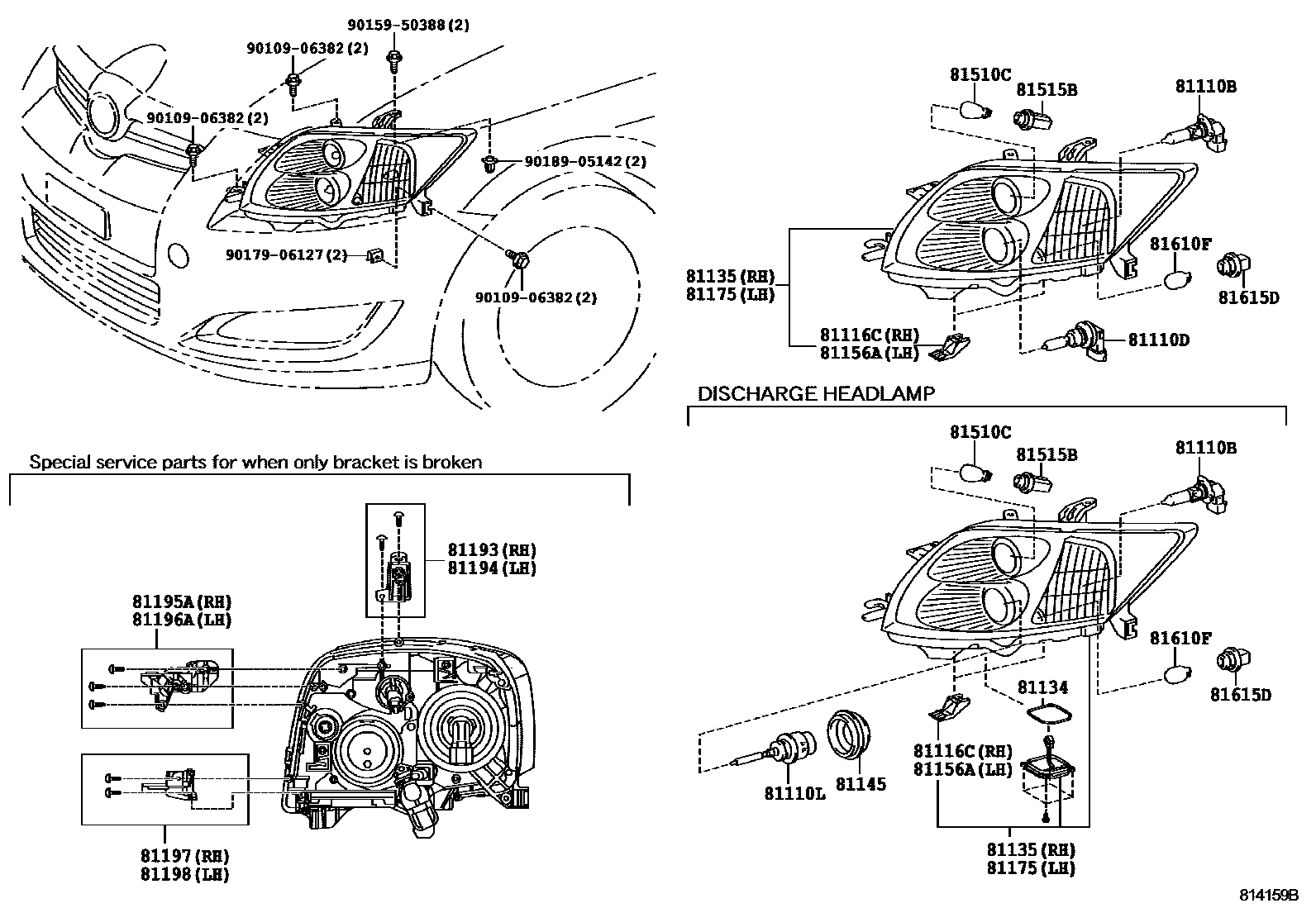

HEADLAMP

0001 1 0003 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iZRE15#200706-201210

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13081iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201211

12V 55W,HALOGEN

81110LBULB, DISCHARGE HEADLAMP

81116CBRACKET, HEADLAMP, RH

main81117-02470iZZE150200706-201001

81134GASKET, HEADLAMP

main90075-68007

81135UNIT ASSY, HEADLAMP, RH

main81130-02480iZZE150200706-201001

main81130-02A90iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

81145COVER, HEADLAMP, NO.2

main81135-02490

81156ABRACKET, HEADLAMP, LH

main81117-02470iZZE150200706-201001

81175UNIT ASSY, HEADLAMP, LH

main81170-02470iZZE150200706-201001

main81170-02A80iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12040iZZE150200706-201001

sub81193-12060

main81193-12060iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12040iZZE150200706-201001

sub81194-12100

main81194-12100iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12040iADE150200706-201001

main81195-12130iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12040iZRE15#200706-201001

main81196-12130iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

81197BRACKET, HEADLAMP, LOWER RH

main81197-12030iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

main81197-12040iADE150200706-201001

81198BRACKET, HEADLAMP, LWR LH

main81198-12030iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

main81198-12040iZZE150200706-201001

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-WF003iADE150200706-201210

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81052iZZE150200706-201210

81610FBULB(FOR CLEARANCE LAMP)

main90981-WB003iZZE150200706-201210

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81275-02070iZZE150200706-201210

9010906382

main90109-06382

9015950388

main90159-50388

9017906127

main90179-06127

9018905142

main90189-05142

23 parts on this diagram · 2 diagrams in section
