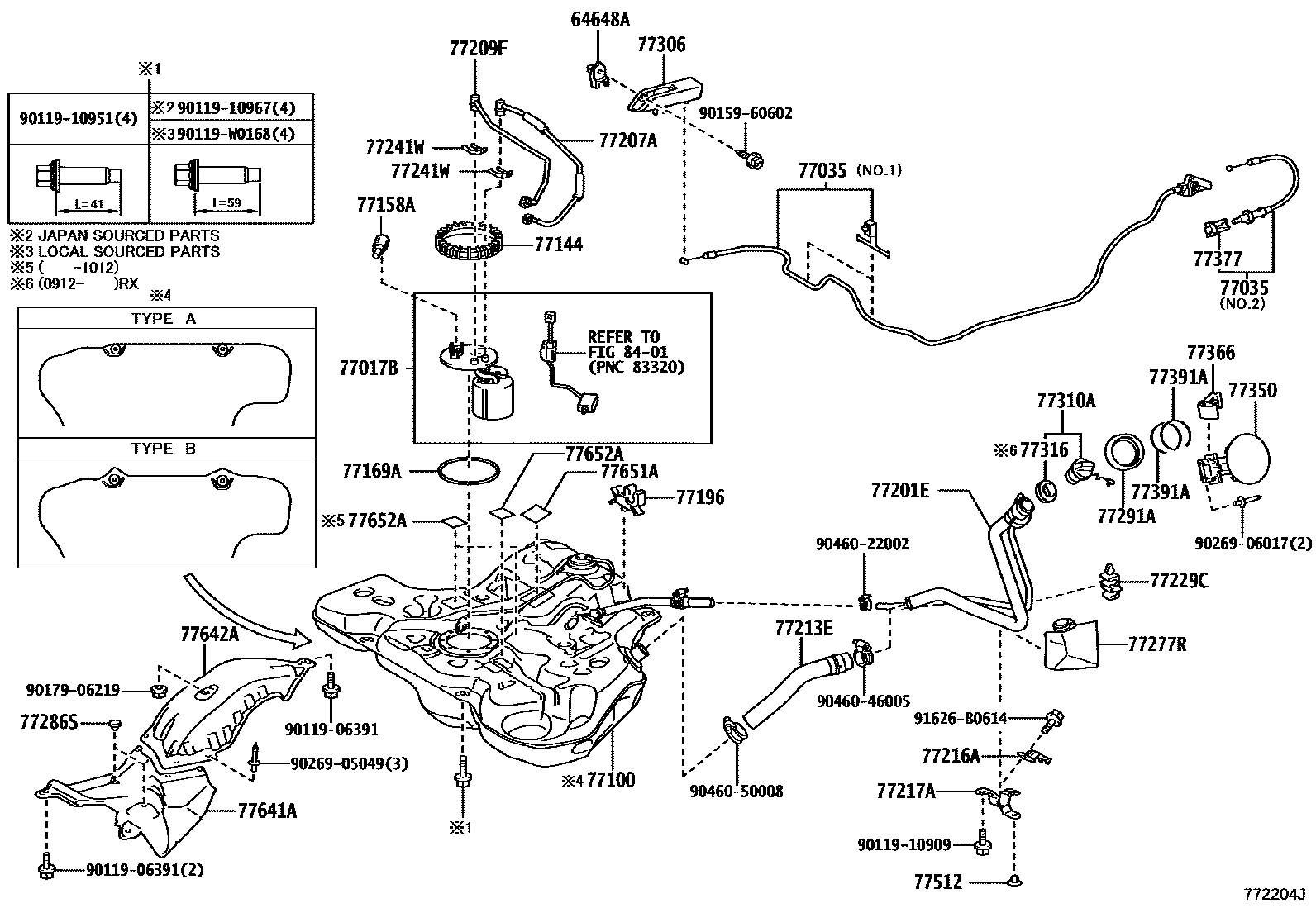

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iZRE15#¥210200706-201001

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-02020iADE150200706-201001

sub77010-02080

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12430iZZE150¥1,940200706-200903

NO.1:REFER ILLUST.

main77035-12430iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)¥1,940200811-201001

NO.1

main77035-12490iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)¥1,590200811-201001

NO.2

main77035-12490iADE150¥1,590200706-200903

NO.2:REFER ILLUST.

77100TANK ASSY, FUEL

main77001-02250iZRE15#200706-201001

main77001-02260iADE150200706-201001

main77001-02260iADE150..RX200912

TYPE A:REFER ILLUST.

main77001-02540iADE150..RX200912

TYPE B:REFER ILLUST.

77144RETAINER, FUEL PUMP GAUGE

main77144-0H010iADE150¥2,490200706-201001

77158ASUPPORT, TANK SUCTION TUBE

main77158-0D020iADE150¥380200706-201001

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D030iADE150..RX¥260200706-201001

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-02050iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)¥620200706-201001

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-12640iNRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)¥11,400200706-201001

sub77201-12641¥11,400

sub77216-12190¥350

sub77217-47080¥630

sub91626-B0614¥60

main77201-12650iADE150200706-201001

sub77201-12651

sub77216-12190¥350

sub77217-47080¥630

sub91626-B0614¥60

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-02050iADE150200706-201001

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02090iZZE150¥970200706-201001

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12270iZZE150¥4,710200706-201001

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12190iZRE151..5F,5FS;ADE150,ZRE152,ZZE150¥350200706-201210

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47080iZRE151..5F,5FS;ADE150,ZRE152,ZZE150¥630200706-201210

77229CCLAMP, BREATHER TUBE

main77229-12070iZZE150¥520200706-201001

77241WCLIP, TUBE JOINT

main77241-32060iNRE150..TERRA;ZRE151..SOL,TERRA¥80200706-201001

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iZZE150¥1,260200706-201210

77286SCUSHION, FUEL TANK PROTECTOR

main77286-02070iADE150,NRE150,ZRE151201208

main77286-12110iADE150¥200200706-201207

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02080iZRE15#200706-201001

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iZZE150¥2,640200706-201010

main77306-52050iADE150,NRE150,ZRE151¥1,850201010

77310ACAP ASSY, FUEL TANK

main77300-20020iADE150..RX¥2,200200901-201001

main77300-52030iADE150¥1,560200706-201001

77316GASKET, FUEL TANK CAP

main77316-52040iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA¥230200912

77350LID ASSY, FUEL FILLER OPENING

main77350-12480iZZE150¥4,040200706-201001

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iZZE150¥60200706-201001

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12060iZZE150¥180200706-201001

77391ARING, FUEL INLET BOX

main77391-12020iZZE150¥180200706-201001

77512BRACKET, FUEL TANK, REAR

main77512-35140iZZE150¥230200706-201001

77641APROTECTOR, FUEL TANK, NO.1

main77641-02060iZZE150200706-201001

77642APROTECTOR, FUEL TANK, NO.2

main77642-02010iZZE150200706-200906

sub77606-12130¥2,760

main77642-02011iZRE151..RS,RT;ADE150,NRE150,ZRE152200906-201001

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iZRE15#¥230200706-201001

77652ACUSHION, FUEL TANK, NO.2

main77652-45020iADE150¥200200706-201012

8401

9011906391

main90119-06391¥100

9011910909

main90119-10909¥100

9011910951

main90119-10951¥160

9011910967

main90119-10967¥190

90119W0168

main90119-W0168¥190

9015960602

main90159-60602¥60

9017906219

main90179-06219¥70

9026905049

main90269-05049¥40

9026906017

main90269-06017¥140

9046022002

main90460-22002¥530

9046046005

main90460-46005¥190

9046050008

main90460-50008¥240

91626B0614

main91626-B0614¥60

45 parts on this diagram · 5 diagrams in section
