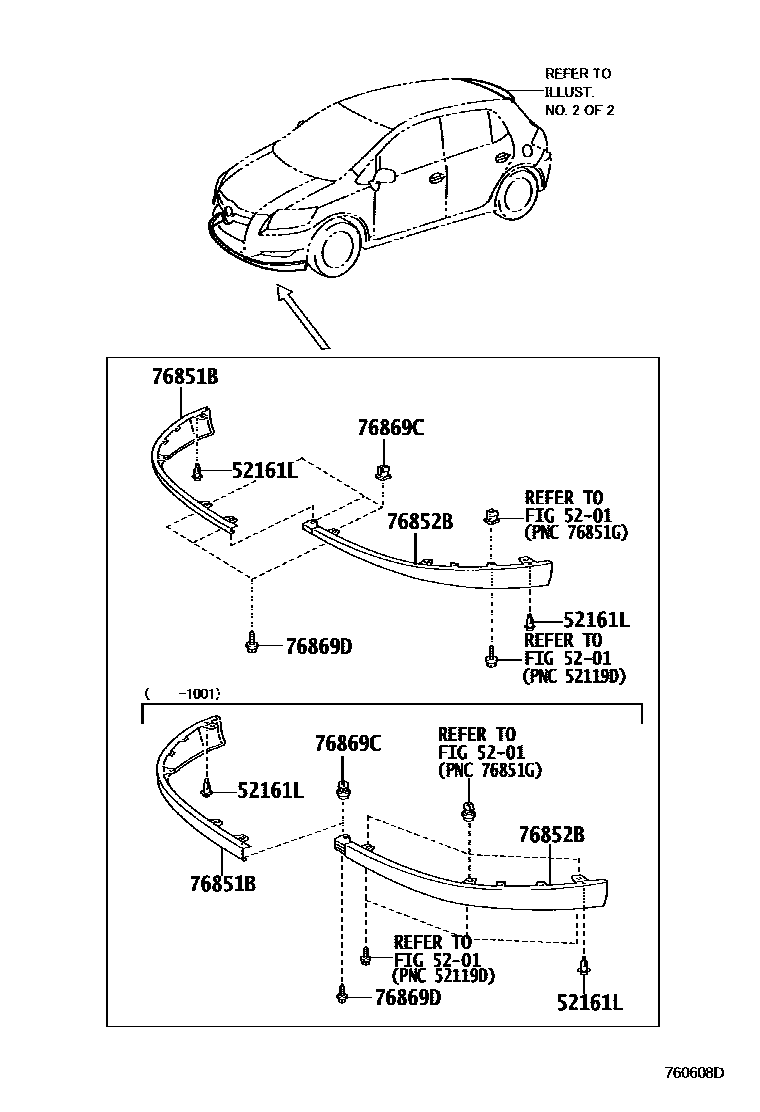

MUDGUARD & SPOILER

0001 1 0002 1

5201

52161LPIECE, FRONT SPOILER

main52161-02030iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201001

(L)

main52161-16010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

(J)

sub52161-0K040

76851BSPOILER, FRONT, RH

main76851-02120iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

main76851-02190iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

76852BSPOILER, FRONT, LH

main76852-02110iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

main76852-02170iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

76869CGROMMET, SCREW, NO.1

main90189-05144iADE150,ZRE15#,ZZE150200706-201001

main90189-06234iADE150,ZRE152;ZRE151..5F,5FS200901-201210

76869DSCREW, NO.2

main90159-60488iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

6 parts on this diagram · 2 diagrams in section
