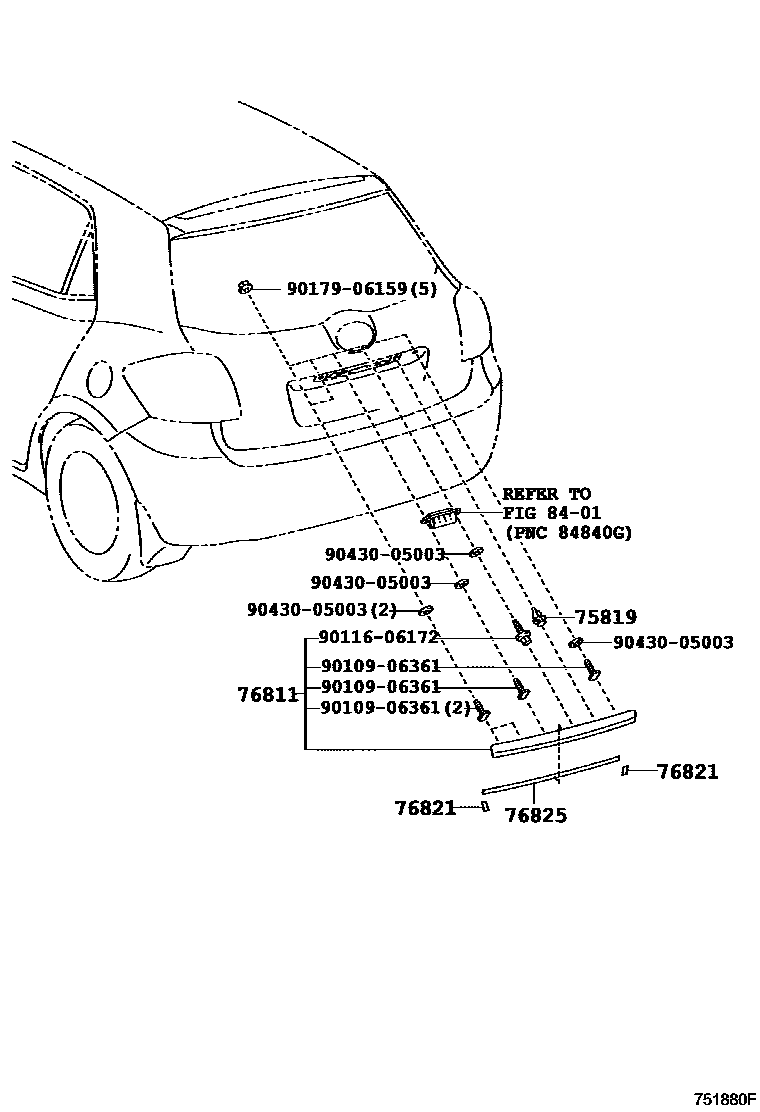

REAR MOULDING

0001 1 0003 1

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010iZZE150200706-201001

76811GARNISH, BACK DOOR, OUTSIDE

main76811-02180iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

main76811-02931iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-12200iZZE150200706-201001

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-02030iZZE150200706-201001

main76825-02090iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

8401

9010906361

main90109-06361

9011606172

main90116-06172

9017906159

main90179-06159

9043005003

main90430-05003

9 parts on this diagram · 2 diagrams in section
