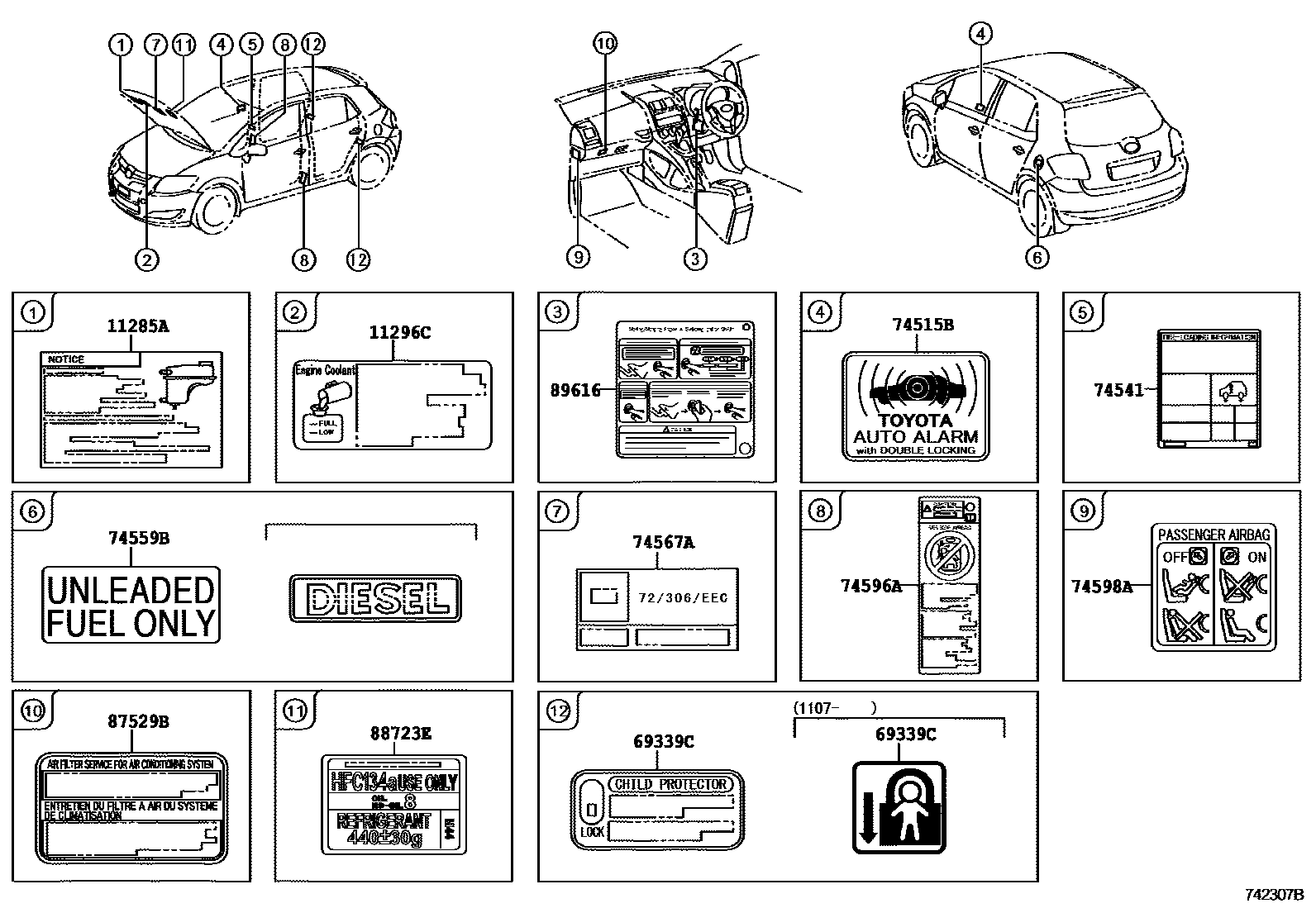

CAUTION PLATE (EXTERIOR & INTERIOR)

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-22080i4ZZFE..ZZE150¥320200706-200902

main11285-26010i1ADFTV..ADE150200706-200810

sub11285-33030¥200

main11285-33030i1ADFTV..ADE150¥200200811-201001

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i1ZRFE,2ZRFE..ZRE15#¥190200706-200903

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-03010iZZE150¥230200706-201107

sub69339-AA020

main69339-0D040iADE150,NRE150,ZRE151¥180201107-201210

74515BPLATE, THEFT WARNING

main74515-42010iZRE15#¥300200706-201001

74541PLATE, TIRE PRESSURE CAUTION

main42661-02540iZRE151..SOL,TERRA200706-201001

main42661-02560iADE150200706-201001

main42661-02D20iNRE150..TERRA200811-201001

74559BLABEL, FUEL INFORMATION

main74559-02010iADE150200706-201001

main74559-05010iNRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

74567APLATE, E.C.E APPROVED NUMBER

main74567-20261iADE150¥110200706-201001

74596ALABEL, SIDE AIRBAG CAUTION

main74596-02040iZZE150¥190200706-201001

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main74596-02040iZRE15#..RS,RX¥190200706-200902

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE)

main74596-02040iADE150¥190200706-201112

main74596-53011iADE150,NRE150,ZRE151¥260201201

74598ALABEL, PASSENGER AIRBAG CAUTION

main74598-02020iZZE150200706-201007

87529BLABEL, A/C FILTER INFORMATION

main87529-0D010iZZE150¥240200706-201002

88723ELABEL, COOLER SERVICE CAUTION

main88733-20020iZZE150200706-201001

89616LABEL, PUSH START INFORMATION

main89616-53010¥520

main89616-52050

12 parts on this diagram · 1 diagram in section
