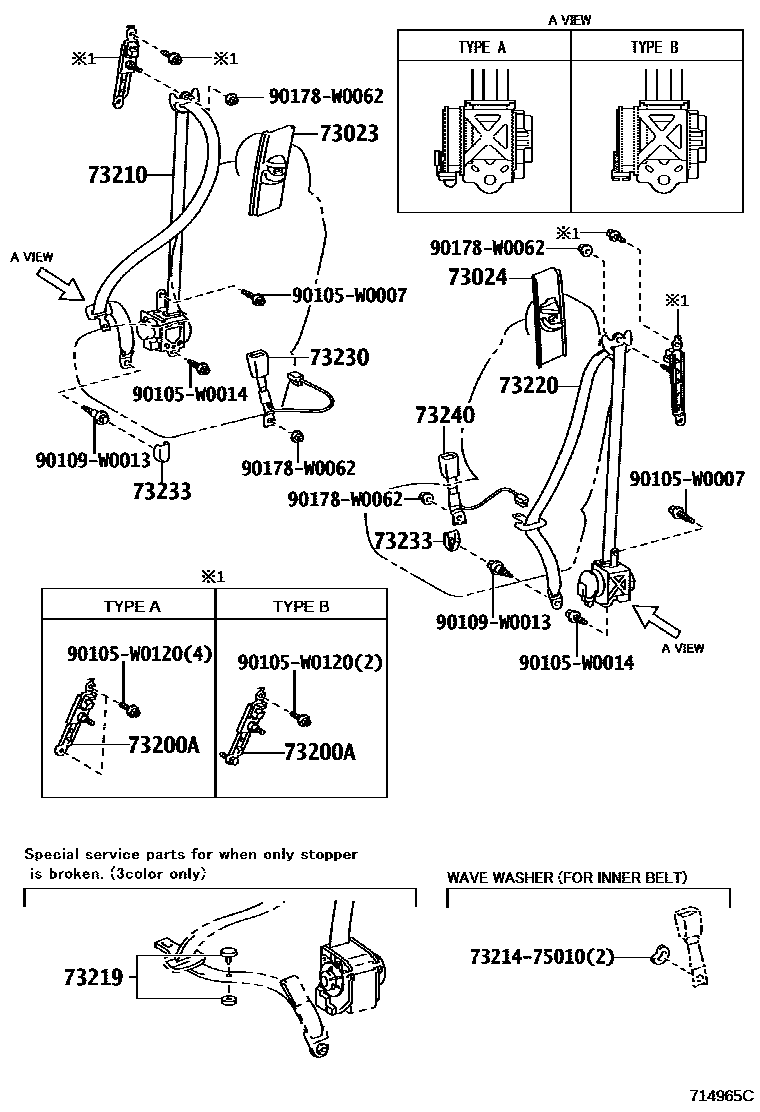

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02011-B1iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

LT.GRAY,TRIM1#

main73023-02011-B1iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

LT.GRAY,TRIM1#,*153

main73023-02011-E0iZRE151..RS;ADE150,ZRE152..RX200706-201001

GREGE,TRIM4#

main73023-02011-E0iADE150,ZRE151..RX,SOL200912-201210

GREGE,TRIM4#,*153

main73023-02030-B0iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

LT.GRAY,TRIM1#,*154

main73023-02030-E0iADE150,ZRE151..RX,SOL200912-201210

GREGE,TRIM4#,*154

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02011-B1iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

LT.GRAY,TRIM1#

main73024-02011-B1iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

LT.GRAY,TRIM1#,*153

main73024-02011-E0iADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS200706-201001

GREGE,TRIM4#

main73024-02011-E0iADE150,ZRE151..RX,SOL200912-201210

GREGE,TRIM4#,*153

main73024-02030-B0iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

LT.GRAY,TRIM1#,*154

main73024-02030-E0iADE150,ZRE151..RX,SOL200912-201210

GREGE,TRIM4#,*154

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02100iZZE150200706-201001

TYPE A:REFER ILLUST.

main73200-02110iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-200907

TYPE B:REFER ILLUST.

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02220-C1iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

BLACK,TRIM1#

main73210-02220-E0iZRE151..RS;ADE150,ZRE152..RX200706-201001

GREGE,TRIM4#

main73210-02221-C2iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201109

BLACK,TRIM1#,TYPE A

main73210-02221-E0iADE150,ZRE151..RX,SOL200912-201109

GREGE,TRIM4#,TYPE A

main73210-02222-C2iADE150,NRE150,ZRE151201109-201210

BLACK,TRIM1#,TYPE B

main73210-02222-E0iADE150,ZRE151..RX,SOL201109-201210

GREGE,TRIM4#,TYPE B

73219STOPPER, TONGUE PLATE

main73219-33010iZZE150200706-201001

BLACK

main73219-33020iZRE15#200706-201001

GRAY

main73219-33030iADE150200706-201001

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02120-C1iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

BLACK,TRIM1#

main73220-02120-E0iZRE151..RS;ADE150,ZRE152..RX200706-201001

GREGE,TRIM4#

main73220-02121-C2iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201109

BLACK,TRIM1#,TYPE A

main73220-02121-E0iADE150,ZRE151..RX,SOL200912-201109

GREGE,TRIM4#,TYPE A

main73220-02122-C2iADE150,NRE150,ZRE151201109-201210

BLACK,TRIM1#,TYPE B

main73220-02122-E0iADE150,ZRE151..RX,SOL201109-201210

GREGE,TRIM4#,TYPE B

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02240-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

DK.GRAY,TRIM1#,*154

main73230-02240-E0iZRE151..RS;ADE150,ZRE152..RX200706-201001

GREGE,TRIM4#,*154

main73230-02360-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

DK.GRAY,TRIM1#,*153

main73230-02360-E0iZRE151..RS;ADE150,ZRE152..RX200706-201001

GREGE,TRIM4#,*153

main73230-02361-C0iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

BLACK,TRIM1#

main73230-02361-E0iADE150,ZRE151..RX,SOL200912-201210

GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-02040-B0iADE150,ZRE151..RX,SOL200706-201210

DK.GRAY,TRIM1#

main73233-02040-B0iNRE150,ZRE151..TERRA200706-201210

DK.GRAY,TRIM1#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02260-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

DK.GRAY,TRIM1#,*154

main73230-02260-E0iZRE151..RS;ADE150,ZRE152..RX200706-201001

GREGE,TRIM4#,*154

main73230-02380-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

DK.GRAY,TRIM1#,*153

main73230-02380-E0iADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS200706-201001

GREGE,TRIM4#,*153

main73230-02381-C0iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

BLACK,TRIM1#

main73230-02381-E0iADE150,ZRE151..RX,SOL200912-201210

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105W0007

main90105-W0007

90105W0014

main90105-W0014

90105W0120

main90105-W0120

90109W0013

main90109-W0013

90178W0062

main90178-W0062

15 parts on this diagram · 2 diagrams in section
