FRONT SEAT & SEAT TRACK

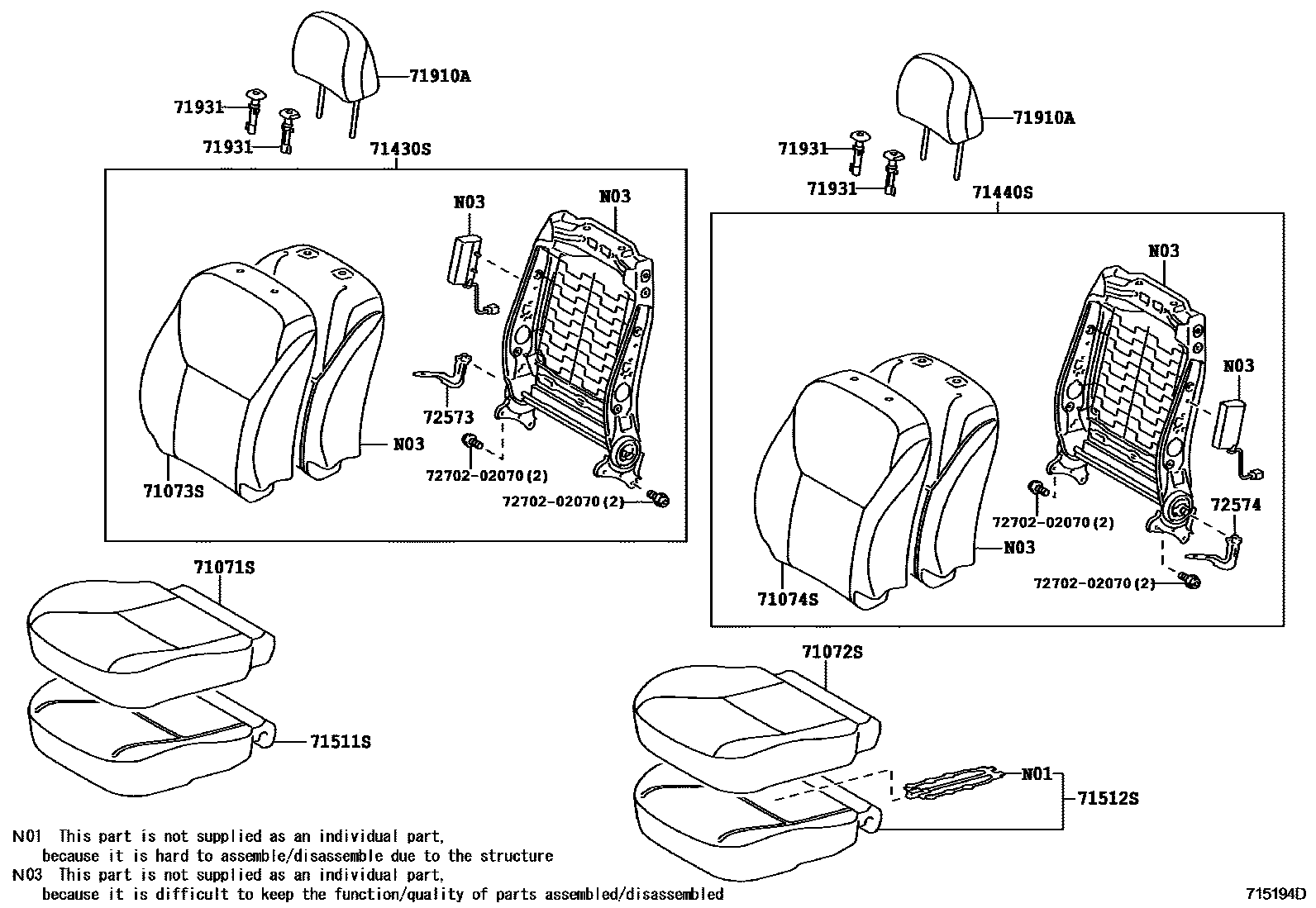

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-02A80-B4i200811-201001
DARK GRAY,TRIM1#
main71071-02J20-B1i200706-200902
DARK GRAY,TRIM1#
main71071-02J20-B2i200902-201001
DK.GRAY,TRIM1#
main71071-02K10-B4i200706-200903
DARK GRAY,TRIM1#
main71071-02K10-E3i200706-200903
GREGE,TRIM4#
main71071-02M90-B1i200912-201210
DARK GRAY,TRIM1#
main71071-02K10-B6supersedes 71071-02M80-B4i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#
main71071-02K10-E5i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#
main71071-02N00-B1i201105-201210
SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12
main71071-02N00-B3i201105-201210
SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12
main71071-02W50-B3supersedes 71071-02M80-B4i200912-201210
SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-02B50-B4i200902-201001
SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#
main71072-02B50-E3i200706-200903
GREGE,TRIM4#
main71072-02D60-B2i200706-200903
DARK GRAY,TRIM1#
main71072-02E00-B1i200811-200902
DARK GRAY,TRIM1#
main71072-02E00-B2i200902-201001
DK.GRAY,TRIM1#
main71072-02Q90-B1i200912-201210
DARK GRAY,TRIM1#
main71072-02B50-B6supersedes 71072-02Q80-B4i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#
main71072-02B50-E5i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#
main71072-02R00-B1i201105-201210
SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12
main71072-02R00-B3i201105-201210
SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12
main71072-02R10-B3supersedes 71072-02Q80-B4i200912-201210
SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-02G80-B4i200706-200903
DARK GRAY,TRIM1#,*153
main71073-02J10-B6i200902-201001
SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#,*153
main71073-02J10-E4i200902-201001
GREGE,TRIM4#,*153
main71073-02L20-B4i200811-201001
DARK GRAY,TRIM1#,*154
main71073-02L60-B6i200902-201001
DARK GRAY,TRIM1#,*154
main71073-02L60-E4i200706-200903
GREGE,TRIM4#,*154
main71073-02X30-B3i200912-201210
DARK GRAY,TRIM1#
main71073-02X50-B1i201105-201210
SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12
main71073-02X50-B3i201105-201210
SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12
main71073-0Z350-B2supersedes 71073-02X20-B4i200912-201210
SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#
main71073-0Z760-B0supersedes 71073-02X20-B4i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#
main71073-0Z760-E0i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-02J10-B2i200706-200903
DARK GRAY,TRIM1#,*153
main71074-02K10-B6i200706-200903
DARK GRAY,TRIM1#,*153
main71074-02K10-E4i200902-201001
GREGE,TRIM4#,*153
main71074-02L70-B2i200811-201001
DARK GRAY,TRIM1#,*154
main71074-02M10-B6i200902-201001
DARK GRAY,TRIM1#,*154
main71074-02M10-E4i200902-201001
SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#,*154
main71074-02Y40-B3i200912-201210
DARK GRAY,TRIM1#
main71074-02Y60-B1i201105-201210
SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12
main71074-02Y60-B3i201105-201210
SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12
main71074-02Z00-B3supersedes 71074-02Y30-B4i200912-201210
SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#
main71074-0Z690-B0supersedes 71074-02Y30-B4i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#
main71074-0Z690-E0i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-02C00-B2i200811-200902
DK.GREY,TRIM1#
main71430-02C00-B3i200902-200912
DK.GRAY,TRIM1#
main71430-02N30-B7i200902-201001
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GREY,TRIM1#
main71430-02N30-E6i200902-201001
GREGE,TRIM4#
main71430-02N70-B4i200811-201001
DK. GRAY,TRIM1#
main71430-0Z340-B3i200912-201210
DK.GRAY,TRIM1#
main71430-0Z350-B1i201105-201210
SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DK.GRAY,TRIM12
main71430-0Z350-B3i201105-201210
SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12
main71430-0Z360-B3supersedes 71430-0Z320-B5i200912-201210
SEAT COVER MATERIAL-FABRIC(KAZE),DK.GRAY,TRIM1#
main71430-0ZC90-B0supersedes 71430-0Z320-B5i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71430-0ZC90-E0i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-02K70-B3i200811-201001
DK. GRAY,TRIM1#
main71440-02M50-B3i200706-200811
DK.GREY,TRIM1#
main71440-02M70-B8i200706-200903
DK.GREY,TRIM1#
main71440-02M70-E6i200902-201001
GREGE,TRIM4#
main71440-02Y90-B3i200912-201210
DK.GRAY,TRIM1#
main71440-02K50-B2supersedes 71440-02M50-B4i200811-200902
SEAT UNDER TRAY-WITHOUT&SRS AIR BAG-WITH(DRIVER&PASSENGER),DK.GRAY,TRIM1#
main71440-02K50-B3supersedes 71440-02M50-B4i200902-200905
SEAT UNDER TRAY-WITHOUT&SRS AIR BAG-WITH(DRIVER&PASSENGER),DK.GRAY,TRIM1#
main71440-02Z00-B1i201105-201210
SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DK.GRAY,TRIM12
main71440-02Z00-B3i201105-201210
SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12
main71440-02Z10-B3supersedes 71440-02Y80-B5i200912-201210
SEAT COVER MATERIAL-FABRIC(KAZE),DK.GRAY,TRIM1#
main71440-0Z680-B0supersedes 71440-02Y80-B5i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71440-0Z680-E0i200912-201210
SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-02330i200811-201001
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-02050i200706-200903
71910AHEADREST ASSY, FRONT SEAT
main71910-02850-B1i200706-200903
DARK GRAY,TRIM1#,*154
main71910-02850-E0i200706-200903
GREDE,TRIM4#,*154
main71910-02860-B1i200706-200902
DARK GRAY,TRIM1#,*154
main71910-02A00-B1i200811-201001
DARK GRAY,TRIM1#,*153
main71910-02A00-E1i200706-200903
GREDE,TRIM4#,*153
main71910-02A10-B1i200811-201001
DARK GRAY,TRIM1#,*153
main71910-02A30-B4i200706-200903
DARK GRAY,TRIM1#,*154
main71910-02A30-E2i200706-200903
GREGE,TRIM4#,*154
main71910-02A40-B3supersedes 71910-02A00-B1i200902-201001
SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#,*153
main71910-02A40-E2i200706-200903
GREGE,TRIM4#,*153
71931SUPPORT, FRONT SEAT HEADREST
main71930-02140-B0i200811-201001
W(LOCK),DK.GRAY,TRIM1#,*153
main71930-02140-E0i200902-201001
W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#,*153
main71930-44020-B0i200706-200903
W(LOCK),DK.GRAY,TRIM1#,*154
sub71930-02370
main71930-44020-E0i200706-200903
W(LOCK),GREGE,TRIM4#,*154
sub71930-02370
main71930-47010-B2i200902-201001
W(LOCK),DK.GRAY,TRIM1#,*154
main71930-47010-E3i200902-201001
W(LOCK),GREGE,TRIM4#,*154
main71931-02110-B0i200811-201001
W/O(LOCK),DK.GRAY,TRIM1#,*153
main71931-02110-E0i200706-200903
W/O(LOCK),GREGE,TRIM4#,*153
main71931-47010-B2i200902-201001
W/O(LOCK),DK.GRAY,TRIM1#,*154
sub71931-42020
main71931-47010-E4i200902-201001
W/O(LOCK),GREGE,TRIM4#,*154
sub71931-42020
72573LEVER, RECLINING CONTROL, RH
main72573-02030i200706-200903
72574LEVER, RECLINING CONTROL, LH
main72574-02030i200706-200903
7270202070BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-02070

13 parts on this diagram · 3 diagrams in section
