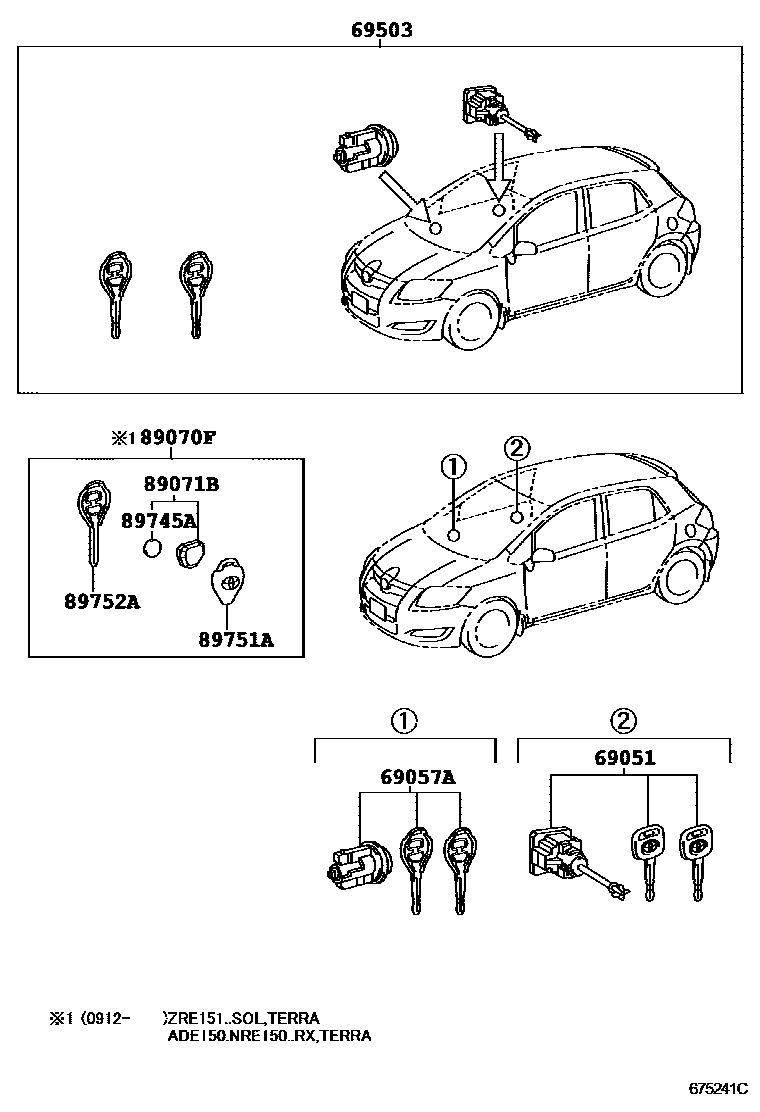

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
sub89071-0F060
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
89745ABATTERY, TRANSMITTER
STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON
89751ACOVER, TRANSMITTER HOUSING
sub89751-05010
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
89752ACASE, TRANSMITTER HOUSING
sub89752-0F020
CUT KEY
STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
BLANK KEY
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON
CUT KEY
BLANK KEY
8 parts on this diagram · 2 diagrams in section
