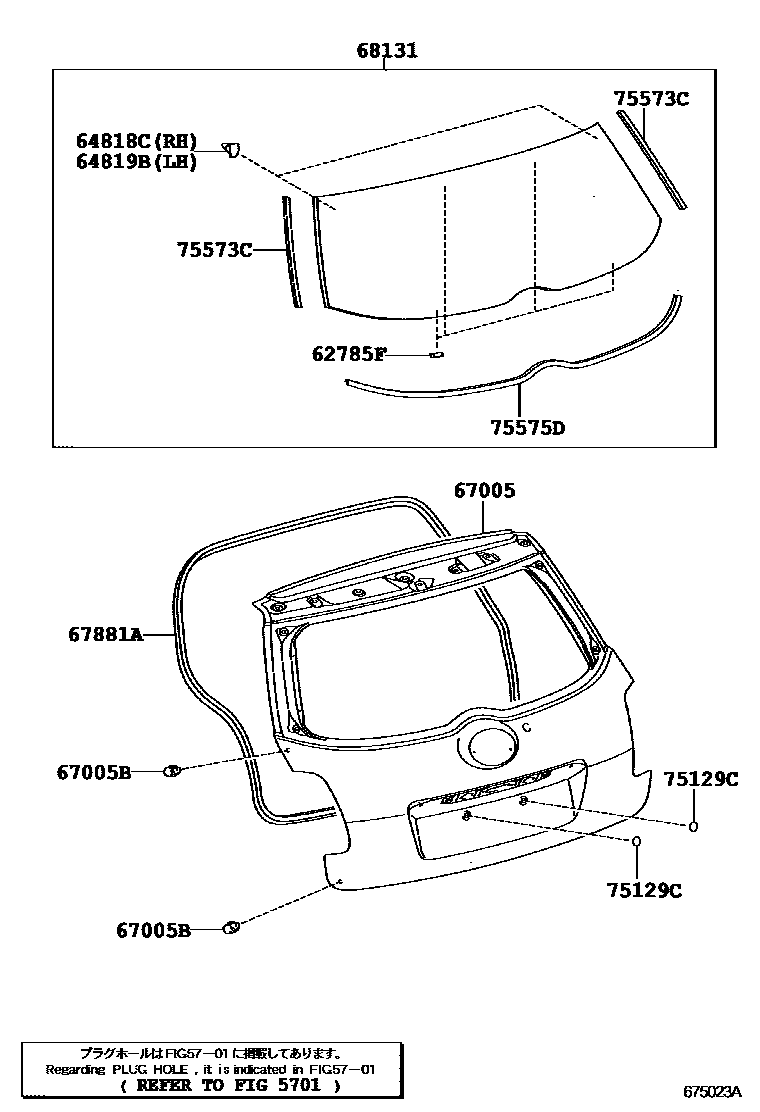

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62785FSPACER, BACK DOOR GLASS

main62785-12050iZRE15#¥190200805-201001

main62785-60030iADE150,ZRE15#,ZZE150¥200200706-200805

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-02030iZZE150200706-201001

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-02020iZZE150200706-201001

67005PANEL SUB-ASSY, BACK DOOR

main67005-02110iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

main67005-02200iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iZZE150¥100200706-201001

67881AWEATHERSTRIP, BACK DOOR

main67881-02080iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

sub67881-12290¥11,500

68131GLASS, BACK DOOR

main68105-02120iZZE150200706-201001

*HSEA,T=3.1,GREEN

75129CCUSHION, REAR LICENCE PLATE

main75129-40010iZRE15#¥70200706-201001

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-02030iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

75575DMOULDING, BACK WINDOW, LOWER

main75575-02050iADE150200706-201001

11 parts on this diagram · 2 diagrams in section
