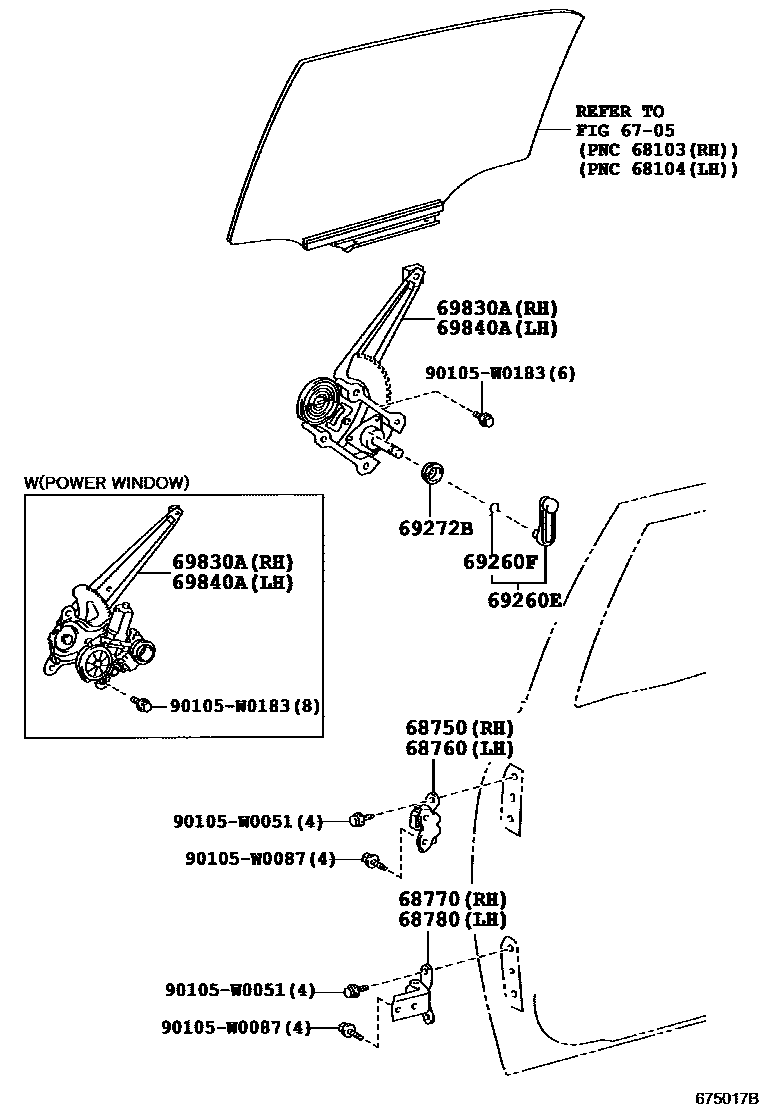

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0H010iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0H010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0H010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0H010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-02020-B2iZRE151,ZZE150..RT200706-201210

DK.GRAY,TRIM1#

sub69260-02020

sub69260-02021

main69260-02020-B2iNRE150,ZRE151..TERRA200912-201210

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

sub69260-02020

sub69260-02021

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52100iZZE150..RT200706-201001

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

main90080-52100iZRE151..RT200706-200902

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-02022iZRE151..RT200706-200902

main69268-02022iZZE150..RT200706-201001

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-02210iZRE151..RT200706-201001

main69830-02240iADE150200706-200903

main69830-02240iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,RX,SOL200706-201001

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-02210iZZE150..RT200706-201001

main69840-02240iZRE15#..RS,RX200706-200903

main69840-02240iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,RX,SOL200706-201001

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

90105W0051

main90105-W0051

90105W0087

main90105-W0087

90105W0183

main90105-W0183

13 parts on this diagram · 1 diagram in section
