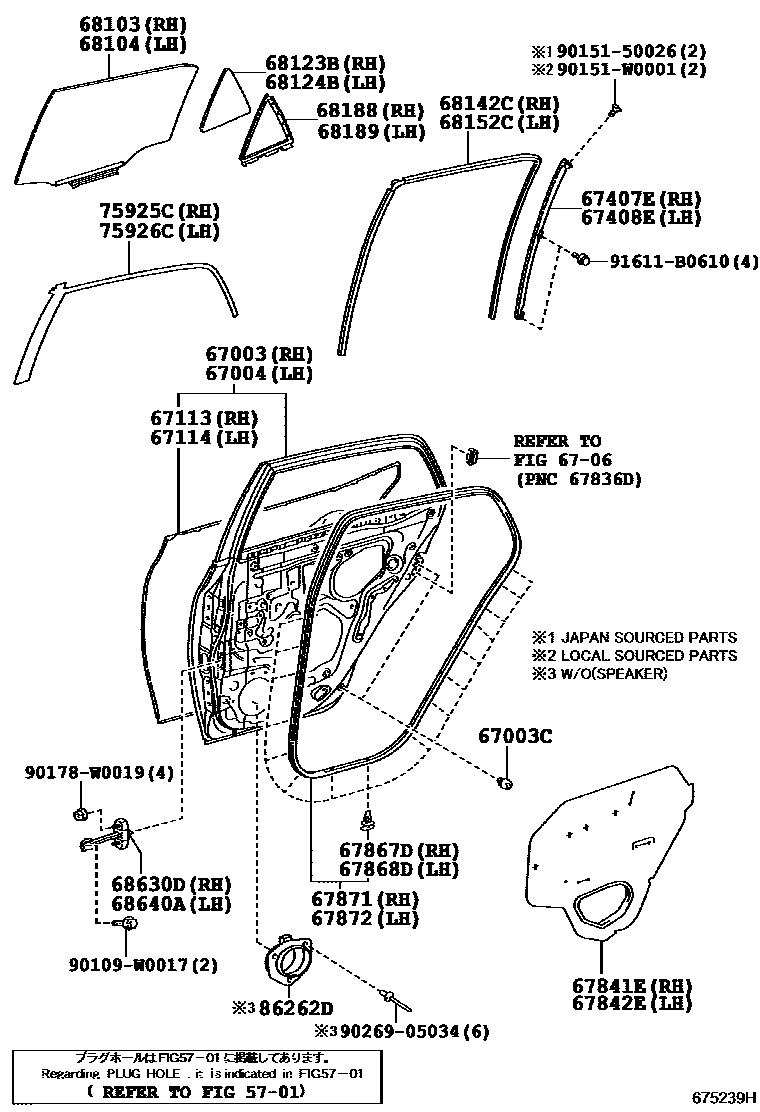

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02250iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201210

67003CCUSHION, REAR DOOR PANEL

main90541-09124iADE150200706-201001

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02260iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

6706

67113PANEL, REAR DOOR, OUTER RH

main67113-02110iZZE150200706-201001

67114PANEL, REAR DOOR, OUTER LH

main67114-02110iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201001

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12280iZZE150200706-201001

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12280iZZE150200706-201001

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02150iZZE150200706-201001

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02130iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201001

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iZZE150200706-201001

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iZZE150200706-201001

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02140iZZE150200706-201001

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02140iZZE150200706-201001

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02210iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

*HSEA,=3.1,S.GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02200iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

*HSEA,=3.1,S.GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02170iZZE150200706-201001

*HSEA,T=3.1,S.GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02170iZZE150200706-201001

*HSEA,T=3.1,S.GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-02110iZZE150200706-201001

68152CRUN, REAR DOOR GLASS, LH

main68152-02110iZZE150200706-201001

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02090iZZE150200706-201001

sub68188-12320

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02090iZZE150200706-201001

sub68189-12320

68630DCHECK ASSY, REAR DOOR, RH

main68630-02120iADE150,ZRE15#,ZZE150200706-200809

sub68630-02121

main68630-02121iZZE150200810-201001

68640ACHECK ASSY, REAR DOOR, LH

main68630-02120iADE150,ZRE15#,ZZE150200706-200809

sub68630-02121

main68630-02121iZZE150200810-201001

75925CTAPE, BLACK OUT, NO.3 RH

main75925-02020iZZE150200706-201001

75926CTAPE, BLACK OUT, NO.3 LH

main75926-02020iZZE150200706-201001

86262DCOVER, REAR DOOR SPEAKER

90109W0017

main90109-W0017

9015150026

main90151-50026

90151W0001

main90151-W0001

90178W0019

main90178-W0019

9026905034

main90269-05034

91611B0610

main91611-B0610

34 parts on this diagram · 2 diagrams in section
