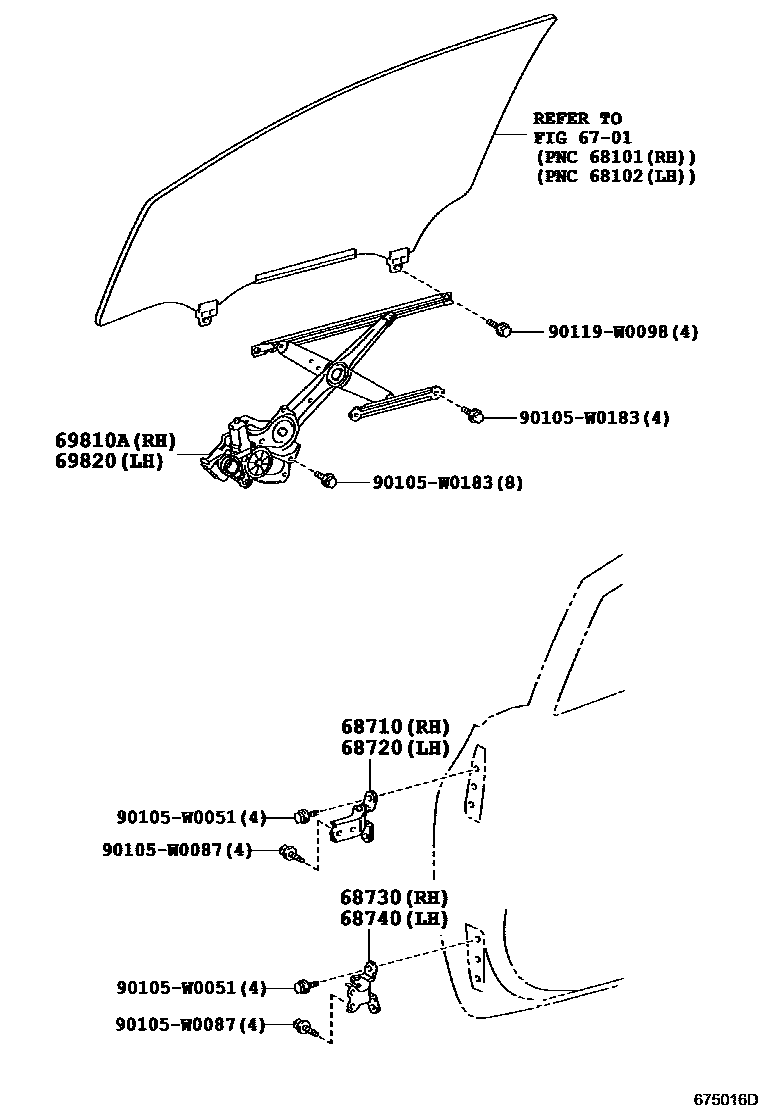

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02060iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02060iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02050iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

(L)

main68730-12120iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

(J)

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02050iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

(L)

main68740-12120iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

(J)

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02310iZZE150200706-201001

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02320iZZE150200706-201001

90105W0051

main90105-W0051

90105W0087

main90105-W0087

90105W0183

main90105-W0183

90119W0098

main90119-W0098

11 parts on this diagram · 1 diagram in section
