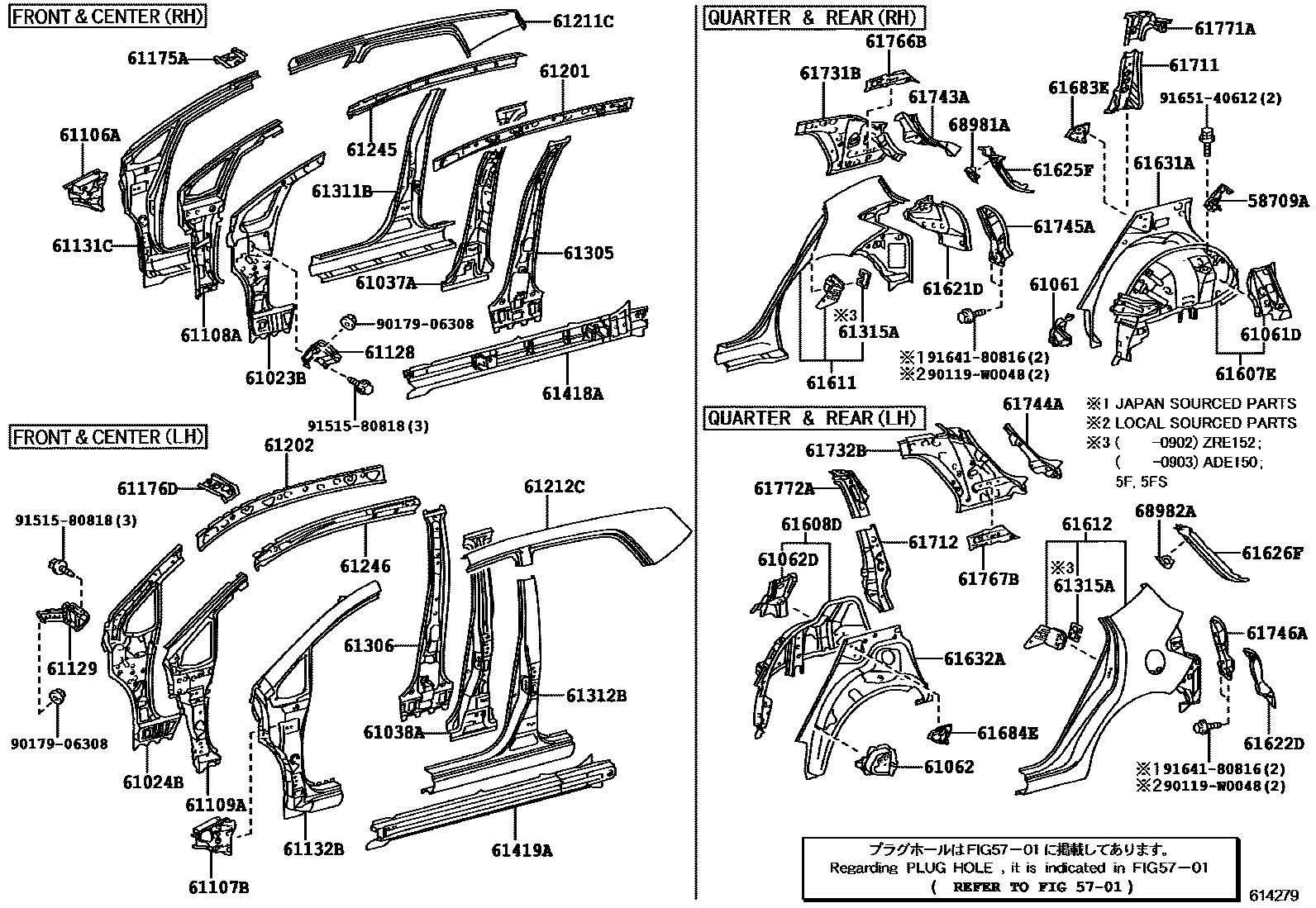

SIDE MEMBER

0001 1 0002 1PROTECTOR,SEAL

5701

58709ACARRIER SUB-ASSY, JACK

main58709-02010iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-02150iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-02130iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-02082iZZE150200707-201001

main61037-02908iADE150,ZRE15#,ZZE150200706-200707

sub61037-02082

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-02082iZRE15#200707-201001

main61038-02908iADE150,ZRE15#,ZZE150200706-200707

sub61038-02082

61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

main61061-02020iZRE15#200706-201001

61061DGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1, RH

main61063-02010iZZE150200706-201001

61062REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH

main61062-02020iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

61062DGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2

main61064-02020iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-02020iZZE150200706-201001

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-02020iZZE150200706-201001

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-02090iZZE150200706-201001

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-02090iZZE150200706-201001

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-02070iZZE150200706-201001

61129REINFORCEMENT, COWL SIDE PANEL, LH

main61104-02070iZZE150200706-201001

61131CPILLAR, FRONT BODY, OUTER RH

main61131-02170iZZE150200706-201001

61132BPILLAR, FRONT BODY, OUTER LH

main61132-02200iZZE150200706-201001

61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

main61175-02050iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

main61176-02050iZZE150200706-201001

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-02050iZZE150200706-201001

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-02050iZZE150200706-201001

61211CRAIL, ROOF SIDE, RH

main61211-02110iZZE150200706-201001

61212CRAIL, ROOF SIDE, LH

main61212-02110iZZE150200706-201001

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-02070iZZE150200706-201001

sub61245-12070¥11,500

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-02080iZZE150200706-201001

sub61246-12070¥11,500

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-02020iZZE150200706-201001

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-02020iZZE150200706-201001

61311BPILLAR, CENTER BODY, OUTER RH

main61311-02140iZZE150200706-201001

61312BPILLAR, CENTER BODY, OUTER LH

main61312-02140iZZE150200706-201001

61315ARETAINER, DOOR LOCK STRIKER

main61315-48010iZZE150¥410200706-200903

61418AREINFORCEMENT, ROCKER PANEL, RH

main61403-02050iZZE150200706-201001

61419AREINFORCEMENT, ROCKER PANEL, LH

main61404-02050iZZE150200706-201001

61607EPANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-02352iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

61608DPANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-02282iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

61611PANEL, QUARTER, RH

main61601-02250iZZE150200706-201001

61612PANEL, QUARTER, LH

main61602-02260iZZE150200706-201001

61621DTROUGH, BACK DOOR OPENING, RH

main61621-02050iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201001

61622DTROUGH, BACK DOOR OPENING, LH

main61622-02050iADE150200706-201001

61625FEXTENSION, QUARTER PANEL, UPPER RH

main61625-02050iZZE150200706-201001

61626FEXTENSION, QUARTER PANEL, UPPER LH

main61626-02050iZZE150200706-201001

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-02080iZZE150200706-201001

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-02080iZZE150200706-201001

61683EPLATE, QUARTER PANEL, LOWER NO.3

main72607-02010iZZE150200706-201001

61684EPLATE, QUARTER PANEL, LOWER NO.4

main72608-02010iZZE150200706-201001

61711PANEL, ROOF SIDE, OUTER RH

main61711-02020iZZE150200706-201001

61712PANEL, ROOF SIDE, OUTER LH

main61712-02020iZZE150200706-201001

61731BPANEL, ROOF SIDE, INNER RH

main61731-02130iZZE150200706-201001

61732BPANEL, ROOF SIDE, INNER LH

main61732-02130iZZE150200706-201001

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-02030iZZE150200706-201001

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61744-02030iZZE150200706-201001

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-02020iZZE150200706-201001

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-02020iZZE150200706-201001

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-02020iZZE150200706-201001

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-02020iZZE150200706-201001

61771AGUSSET, BACK WINDOW OPENING, RH

main61771-02030iZZE150200706-201001

*153

sub61771-12070¥4,240

main61771-12070iZRE15#¥4,240200706-201001

*154

61772AGUSSET, BACK WINDOW OPENING, LH

main61772-02030iADE150200706-201001

*153

sub61772-12070¥4,240

main61772-12070iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)¥4,240200706-201001

*154

68981ARETAINER, BACK DOOR STAY, RH

main68981-02040iZZE150200706-201001

68982ARETAINER, BACK DOOR STAY, LH

main68982-02030iZZE150200706-201001

90119W0048

main90119-W0048¥80

9017906308

main90179-06308¥80

9151580818

main91515-80818¥90

9164180816

main91641-80816¥90

9165140612

main91651-40612¥70

64 parts on this diagram · 2 diagrams in section
