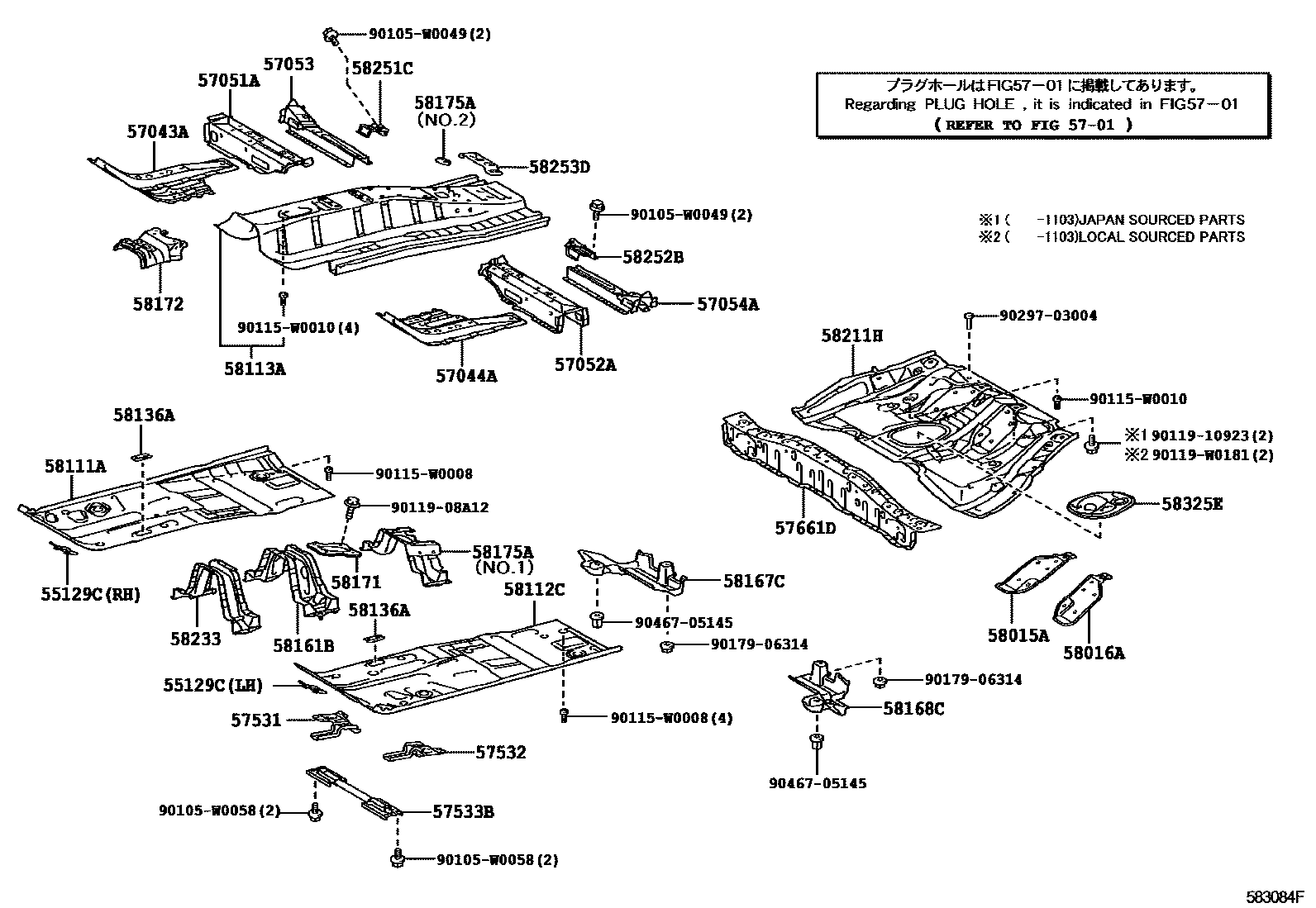

FLOOR PAN & LOWER BACK PANEL

0001 1FRONT FLOOR PANEL 0002 1REAR FLOOR PANEL 0003 1REAR FLOOR PANEL

55129CCOVER, DASH PANEL HOLE

main55129-02030iZZE150¥360200706-201210

RH

main55139-02020iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)¥360200706-201210

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-02040iZZE150¥8,200200706-201210

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-02040iZZE150¥8,200200706-201210

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02010iADE150¥4,560200706-201210

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02010iZZE150¥4,560200706-201210

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02010iZZE150¥4,780200706-201210

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02010iZZE150¥4,780200706-201210

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-02010iZZE150¥1,320200706-201210

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-02010iZZE150¥1,320200706-201210

57533BBRACE, FRONT FLOOR, CENTER

main57501-02020iADE150200810-200910

sub57501-02021¥4,120

main57501-02021iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA¥4,120200911-201001

main57501-12020iADE150,ZRE15#,ZZE150¥4,540200706-200810

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-02071iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA¥13,100200706-201001

sub57407-12101¥23,500

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02061iZZE150200706-201005

sub58015-02160¥4,270

main58015-02160iADE150,NRE150,ZRE151¥4,270201005

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02031iZZE150200706-201005

sub58016-02140¥4,390

main58016-02140iADE150,NRE150,ZRE151¥4,390201005

58111APAN, FRONT FLOOR, RH

main58111-02917iZZE150200706-201210

58112CPAN, FRONT FLOOR, LH

main58112-02901iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

58113APANEL, FRONT FLOOR, CENTER

main58113-02010iZZE150200706-201210

sub58113-02906

sub90115-W0010¥60

main58113-02020iZRE151..6FS200706-201001

sub58113-02905

sub90115-06166¥90

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-02030iZZE150¥220200706-201210

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-02040iZZE150¥4,650200706-201210

58167CCOVER, FRONT FLOOR, CENTER RH

main58167-02010iZRE15#200706-201001

58168CCOVER, FRONT FLOOR, CENTER LH

main58168-02010iZZE150200706-201001

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-02040iADE150¥1,300200706-201210

58172BRACKET, COMPUTER MOUNTING, NO.3

main58173-02040iZZE150200706-201210

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main57805-02030iZZE150¥6,700200706-201210

NO.1:REFER ILLUST.

main58176-02010iZZE150200706-201210

NO.2:REFER ILLUST.

58211HPAN, CENTER FLOOR

main58211-02907iZZE150¥19,000200706-201001

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-02020iZZE150¥3,330200706-201210

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-02030iZZE150¥1,300200706-201001

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-02010iZZE150¥1,300200706-201001

58253DBRACKET, PARKING BRAKE CABLE

main58253-02020iZZE150¥700200706-201210

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02080iZZE150¥1,470200706-201001

90105W0049

main90105-W0049¥100

90105W0058

main90105-W0058¥170

90115W0008

main90115-W0008¥60

90115W0010

main90115-W0010¥60

9011908A12

main90119-08A12¥80

9011910923

main90119-10923¥110

90119W0181

main90119-W0181¥100

9017906314

main90179-06314¥70

9029703004

main90297-03004¥50

9046705145

main90467-05145¥100

40 parts on this diagram · 3 diagrams in section
