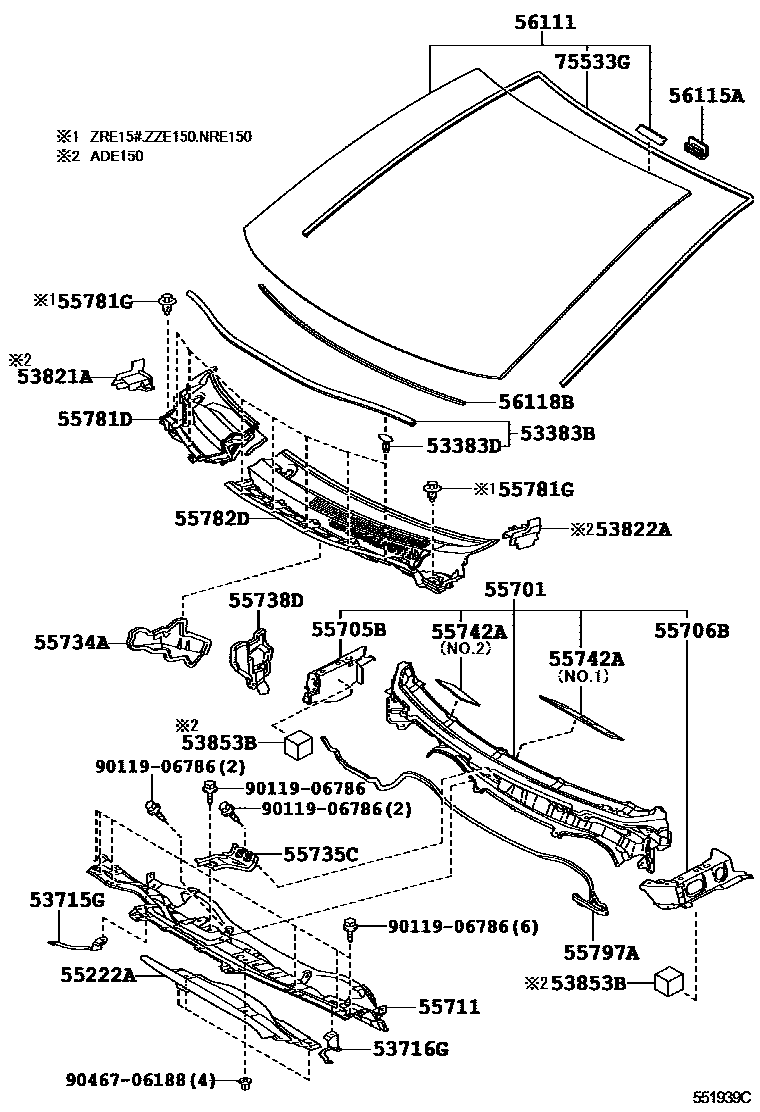

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-02100iZZE150200706-201001

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iZZE150200706-201001

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-02011iZZE150200706-201001

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-02011iZZE150200706-201001

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-12060iADE150200706-201001

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53822-12060iADE150200706-201001

53853BPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53855-12020iADE150200706-201001

55222AINSULATOR, DASH PANEL, OUTER CENTER

main55224-02030iZZE150200706-201001

55701PANEL SUB-ASSY, COWL

main55700-02270iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201210

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02020iZZE150200706-201001

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02020iZZE150200706-201001

55711PANEL, COWL TOP, OUTER

main55701-02180iZZE150200706-201001

55734APLATE, WATER GUARD, RH

main55734-02020iZZE150200706-201001

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-02010iZZE150200706-201001

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-02010iZZE150200706-201001

55742ASHEET, COWL TOP INSULATOR

main55742-02050iZZE150200706-201001

NO.1:REFER ILLUST.

main55743-02070iZRE15#200706-201001

NO.2:REFER ILLUST.

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-02310iADE150,ZRE15#,ZZE150200706-200711

*154

sub55708-02311

main55708-02311iZZE150200712-201001

*154

main55708-02340iADE150,ZRE15#,ZZE150200706-200711

*153

sub55708-02341

main55708-02341iADE150200712-201001

*153

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iZRE15#,ZZE150200706-201210

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02220iADE150,ZRE15#,ZZE150200706-200809

*154

sub55709-02221

main55709-02221iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200810-201001

*154

main55709-02240iADE150,ZRE15#,ZZE150200706-200809

*153

sub55709-02241

main55709-02241iADE150200810-201001

*153

55797ASEAL, COWL WATER EXTRACT

main55797-02010iZZE150200706-201001

56111GLASS, WINDSHIELD

main56101-02280iZZE150200706-201001

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iZZE150200706-201001

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-12290iZZE150200706-201001

L=1089

sub56117-50140

main56117-12290iZZE150200706-200903

L=1089,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

sub56117-50140

main56117-12290iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

L=1089,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON

sub56117-50140

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-12630iZZE150200706-201001

9011906786

main90119-06786

9046706188

main90467-06188

26 parts on this diagram · 1 diagram in section
