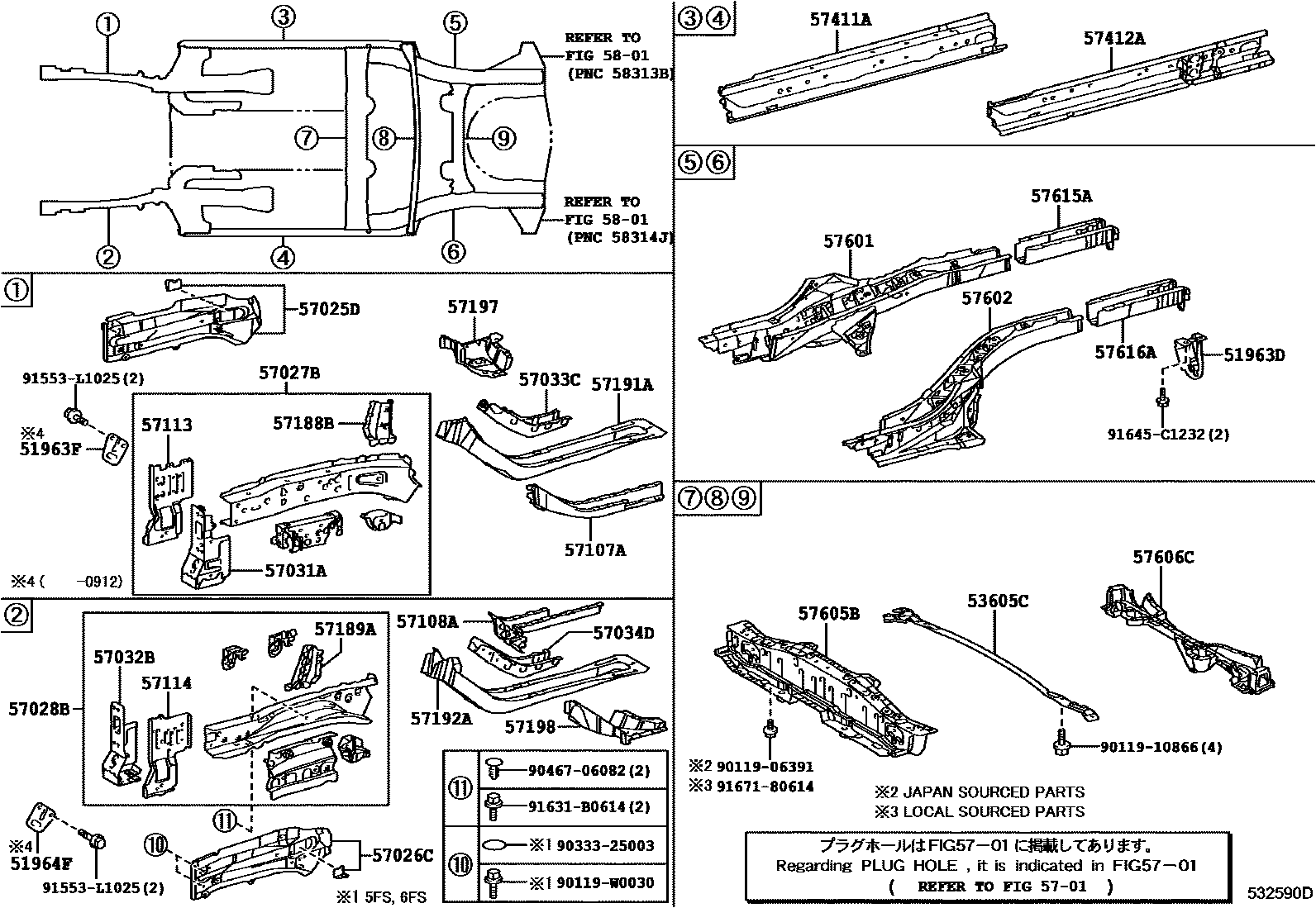

FLOOR SIDE MEMBER

51963DHOOK, TRANSPORT, REAR LH

main51968-02080iZRE15#200706-200902

51963FHOOK, TRANSPORT

main51963-02080iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

51964FHOOK, TRANSPORT, LH

main51964-02020iZZE150200706-200811

53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

main53605-02010iZZE150200706-200811

sub53605-02011

5701

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-02020iZZE150200706-200811

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-02020iZZE150200706-200811

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02020iZZE150200706-200811

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02020iZZE150200706-200811

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-02010iZZE150200706-200811

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-02010iZZE150200706-200811

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-02020iZZE150200706-200811

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-02020iZZE150200706-200811

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-02020iZZE150200706-200811

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-02020iZZE150200706-200811

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02070iZZE150200706-200811

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02070iZZE150200706-200811

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-02010iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-02010iZZE150200706-200811

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-02100iZZE150200706-200811

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-02100iZZE150200706-200811

57197BOX, TORQUE, FRONT RH

main57197-02030iADE150200706-200903

*153

main57197-12040iADE150200706-200903

*154

57198BOX, TORQUE, FRONT LH

main57198-02010iZZE150200706-200811

*153

main57198-12040iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

*154

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-02120iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-02120iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02170iADE150200706-200903

sub57601-02171

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02170iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

sub57602-02171

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02040iADE150,ZRE15#,ZZE150200706-200808

main57605-05050iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

*153

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-02080iZZE150200706-200811

main57606-02081iADE150,NRE150,ZRE151201204

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57603-02020iZZE150200706-200811

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57604-02030iZZE150200706-200811

5801

9011906391

main90119-06391

9011910866

main90119-10866

90119W0030

main90119-W0030

9033325003

main90333-25003

9046706082

main90467-06082

91553L1025

main91553-L1025

91631B0614

main91631-B0614

91645C1232

main91645-C1232

9167180614

main91671-80614

41 parts on this diagram · 1 diagram in section
