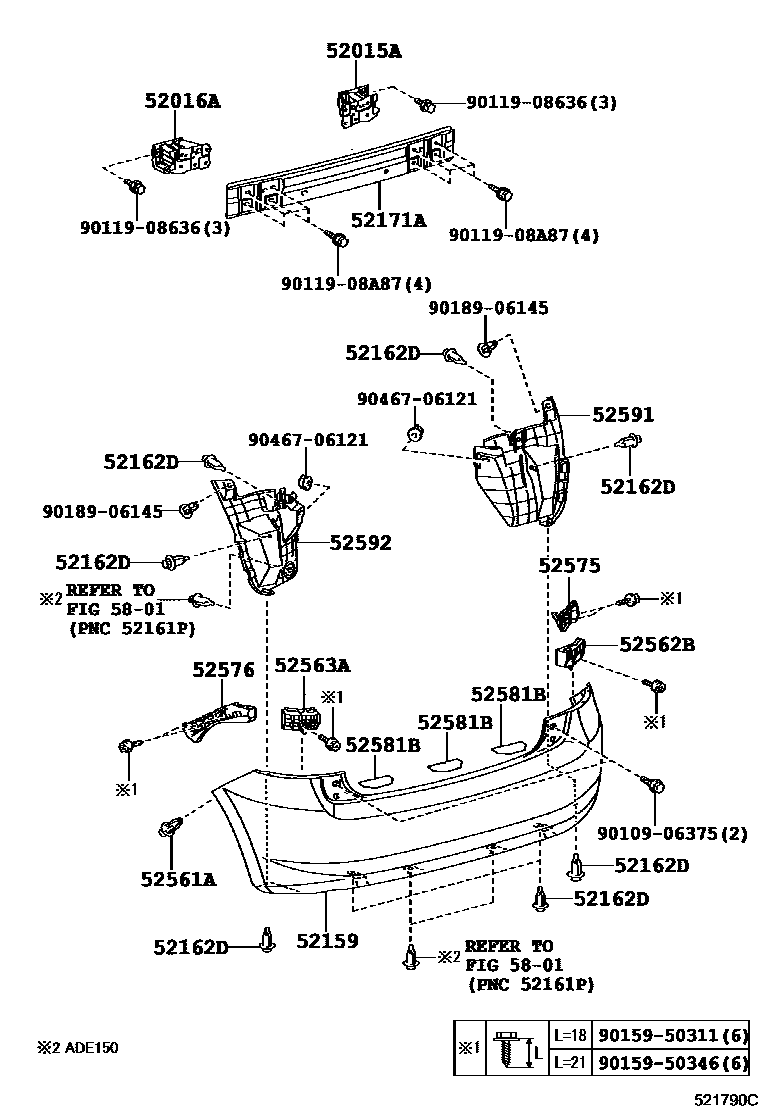

REAR BUMPER & BUMPER STAY

0001 1 0003 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-02050iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201210

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-02040iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

52159COVER, REAR BUMPER

main52159-02952iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

PAINT REQ.

main52159-02974iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA¥34,000200912

PAINT REQ.

52162DPIECE, REAR BUMPER

main52161-02030iZZE150¥140200706-201001

(L)

main52161-16010iADE150¥120200706-201001

(J)

sub52161-0K040¥120

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-02140iZZE150200706-201103

main52171-02080iADE150,NRE150,ZRE151¥7,700201104

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

DK.GRAY

sub90467-05090¥110

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02040iADE150200706-201001

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02030iZZE150200706-201001

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02070iZZE150200706-201001

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02070iZZE150200706-201001

52581BPROTECTOR, REAR BUMPER

main52581-02020iZZE150¥300200706-201001

52591SEAL, REAR BUMPER SIDE, RH

main52591-02140iZZE150200706-201001

main52591-02210iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

52592SEAL, REAR BUMPER SIDE, LH

main52592-02130iZZE150200706-201001

main52592-02210iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

5801

9010906375

main90109-06375¥80

9011908636

main90119-08636¥90

9011908A87

main90119-08A87¥100

9015950311

main90159-50311¥70

9015950346

main90159-50346¥60

9018906145

main90189-06145¥80

9046706121

main90467-06121¥220

21 parts on this diagram · 2 diagrams in section
