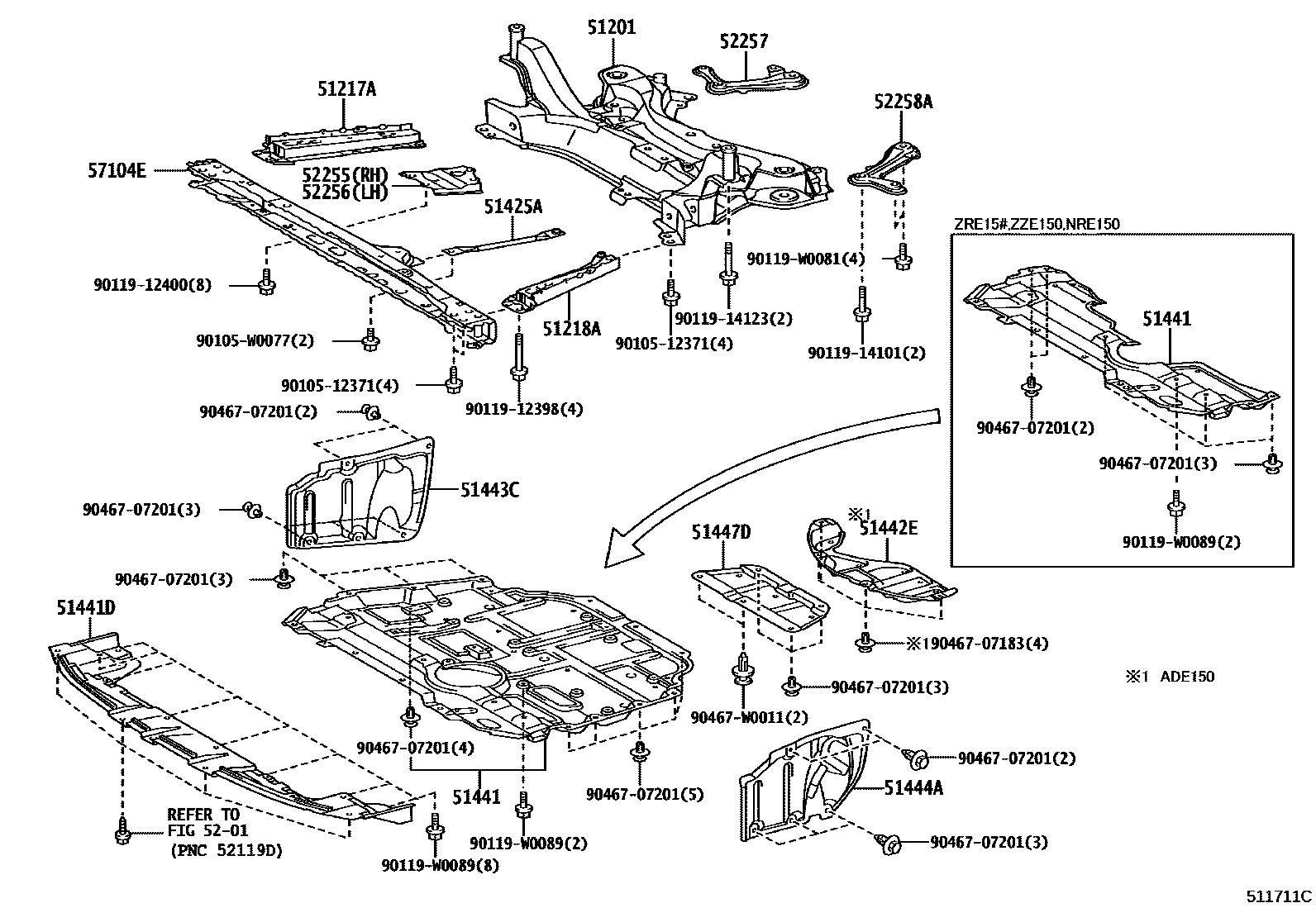

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02101iADE150200706-201001

sub51201-02102

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-02010iZZE150200706-201001

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-02010iZZE150200706-201001

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02010iZRE15#200706-201001

51441COVER, ENGINE UNDER, NO.1

main51410-02120iADE150200706-200903

main51410-02180iADE150200903-201001

main51441-02220iNRE150..TERRA;ZRE151..SOL,TERRA200706-201001

51441DCOVER, ENGINE UNDER

main52618-02010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

51442ECOVER, ENGINE UNDER, NO.2

main51442-02230iADE150200706-201001

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02050iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02040iADE150,ZRE15#,ZZE150200706-200710

sub51444-02041

main51444-02041iZZE150200711-201001

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02010iZZE150200706-201001

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02030iADE150,ZRE15#,ZZE150200706-200806

sub52257-02031

main52257-02031iZZE150200807-201001

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02030iADE150,ZRE15#,ZZE150200706-200806

sub52258-02031

main52258-02031iZZE150200807-201001

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02160iZZE150200706-201001

sub57104-12270

9010512371

main90105-12371

90105W0077

main90105-W0077

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

90119W0081

main90119-W0081

90119W0089

main90119-W0089

9046707183

main90467-07183

9046707201

main90467-07201

90467W0011

main90467-W0011

27 parts on this diagram · 2 diagrams in section
