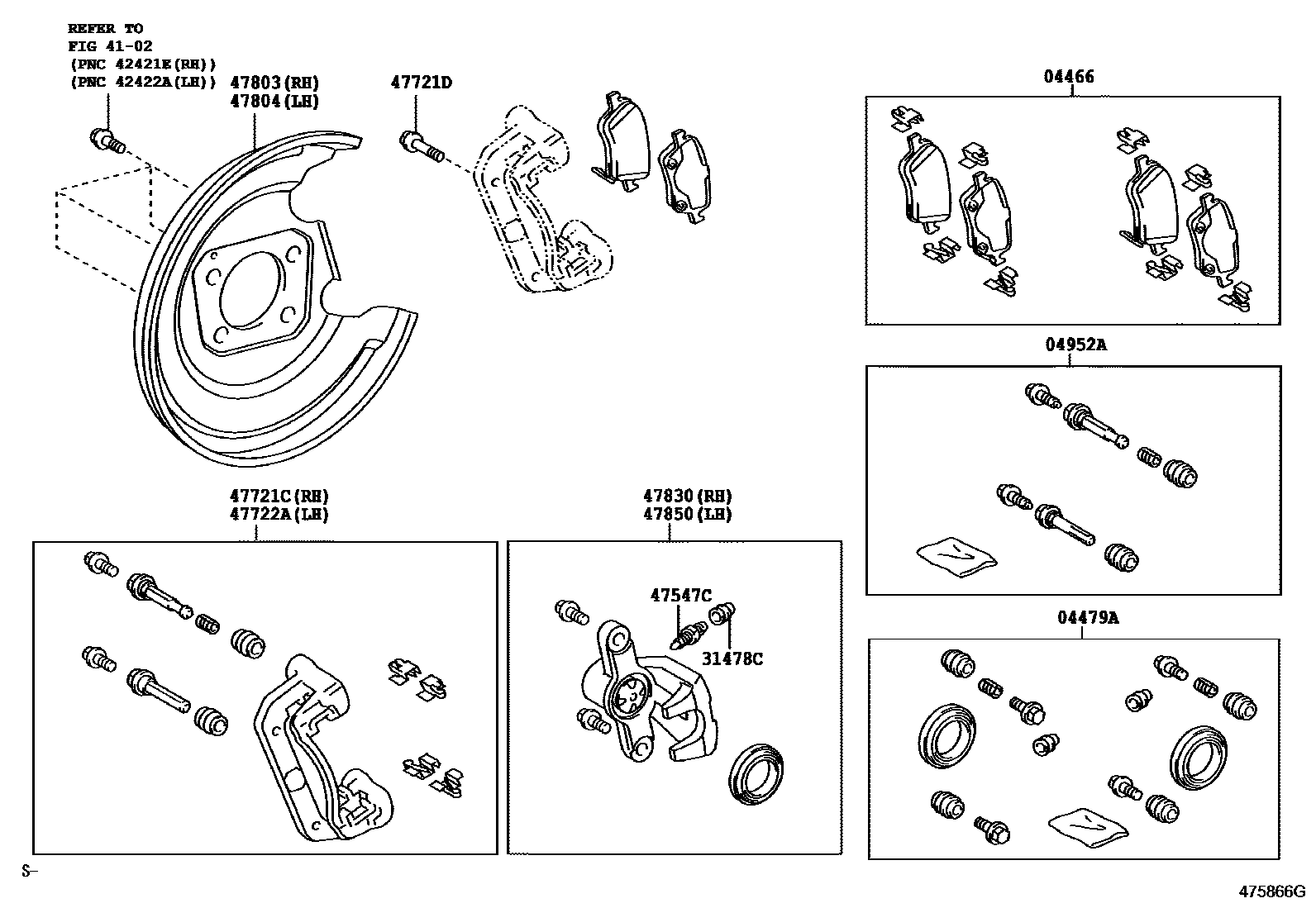

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02180iZZE150200706-200903

MARK GALFER G3409

sub04466-02181

main04466-02181iZRE151..RS,RT;ADE150,NRE150,ZRE152200903-201210

MARK GALFER G3409

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02310iZZE150200706-201001

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02220iZZE150200706-201001

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39001iZZE150200706-201001

4102

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39000iZZE150200706-201001

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09020iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

*10-1.25PX24-21.5

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09020iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-02031iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-02031iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02100iZZE150200706-201001

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02100iZZE150200706-201001

sub47850-02101

13 parts on this diagram · 1 diagram in section
