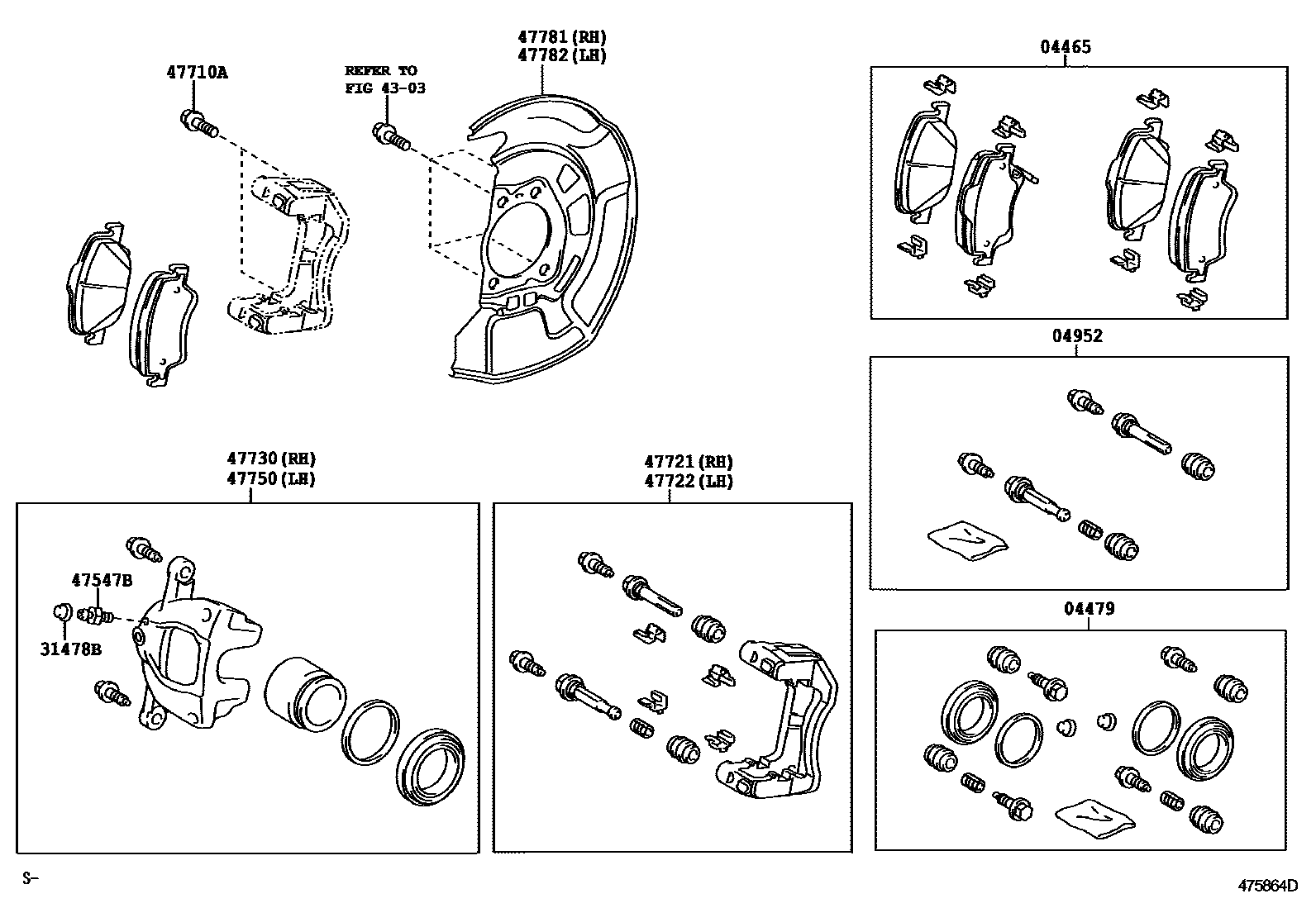

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02190iADE150200706-200901

MARK JURID 672

sub04465-02280

main04465-02200iZRE15#,ZZE150200706-200802

MARK JURID 672

sub04465-02270

main04465-02210iNRE150..TERRA;ZRE151..SOL,TERRA200809-201104

MARK AK NS 341

sub04465-02370

main04465-02270iZRE15#,ZZE150200802-200809

MARK JURID 672

sub04465-02210

main04465-02280iADE150..RX200901-201008

MARK JURID 672

sub04465-0F010

main04465-02370iNRE150,ZRE151201104

MARK AK NS 341

main04465-0F010iADE150201009

MARK AK NS378H

sub04465-0F011

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02160iADE150200706-201001

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02220iZRE15#200706-201001

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90069-39001iZRE15#200706-201001

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39000iADE150200706-201001

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09360iADE150200706-200901

main47721-09370iZRE15#,ZZE150200706-200809

sub47721-09490

main47721-09480iADE150200901-201001

main47721-09490iZZE150200809-201001

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09120iADE150200706-200901

main47722-09130iZRE15#,ZZE150200706-200809

sub47722-09190

main47722-09180iADE150..RX200901-201001

main47722-09190iNRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200809-201001

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02340iZRE15#,ZZE150200706-200810

sub47730-02341

main47730-02341iZZE150200810-201001

main47730-02360iADE150200706-200901

main47730-02361iADE150..RX200901-201001

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02340iZRE15#,ZZE150200706-200810

sub47750-02341

main47750-02341iZZE150200810-201001

main47750-02360iADE150200706-200901

main47750-02361iADE150200901-201001

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02100iZRE15#,ZZE150200706-201210

main47781-02150iADE150200706-201210

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02100iZRE15#,ZZE150200706-201210

main47782-02150iADE150200706-201210

13 parts on this diagram · 2 diagrams in section
