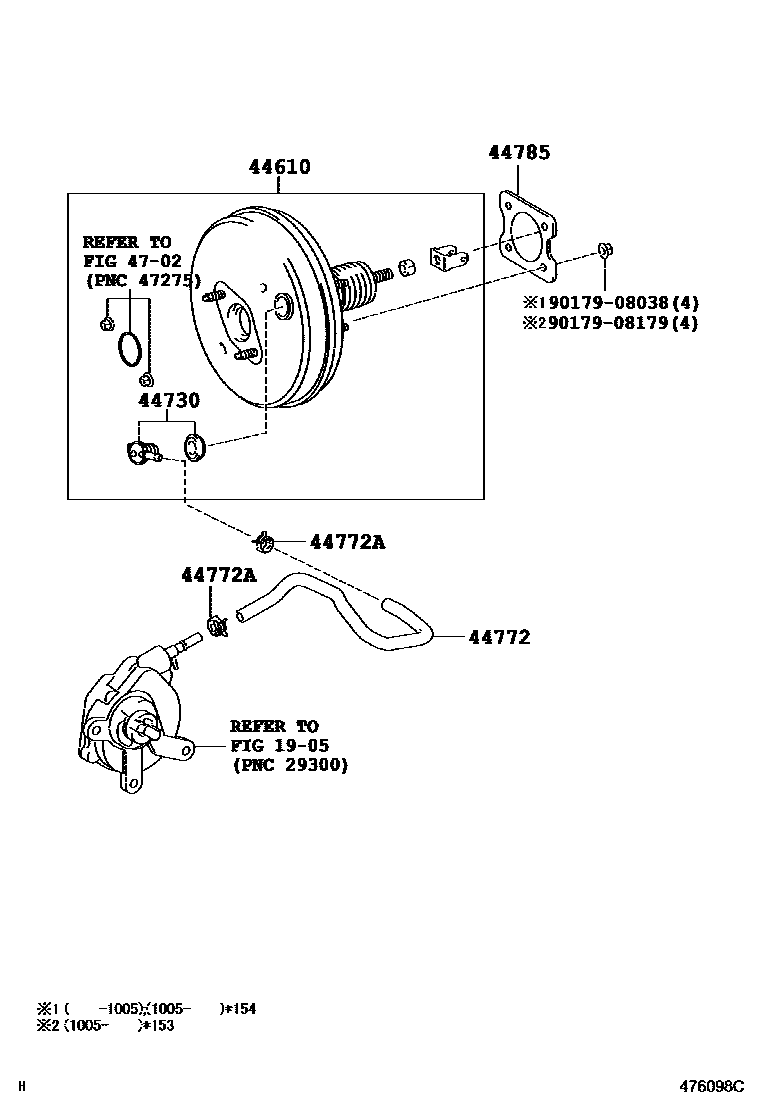

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1905

44610BOOSTER ASSY, BRAKE

main44610-09420iADE150200706-201001

sub44610-09721

main44610-09450iNRE150,ZRE152;ZRE151..6F..(RS,RT)200706-201001

sub44610-09731

main44610-09720iADE150,ZRE151..RX,SOL,TERRA200912-201210

sub44610-09721

main44610-09730iNRE150..TERRA200912-201210

sub44610-09731

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iZZE150200706-201001

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12620iZZE150200706-201001

main44772-12640iADE150..RX200706-201001

main44772-12700iNRE150..TERRA200811-201001

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008iADE150200706-201001

main90467-16014iNRE150..TERRA200811-201001

44785GASKET, BRAKE BOOSTER

main44785-05020iADE150,NRE150,ZRE151201003

main44785-12040iZRE15#200706-201002

4702

9017908038

main90179-08038

9017908179

main90179-08179

9 parts on this diagram · 5 diagrams in section
