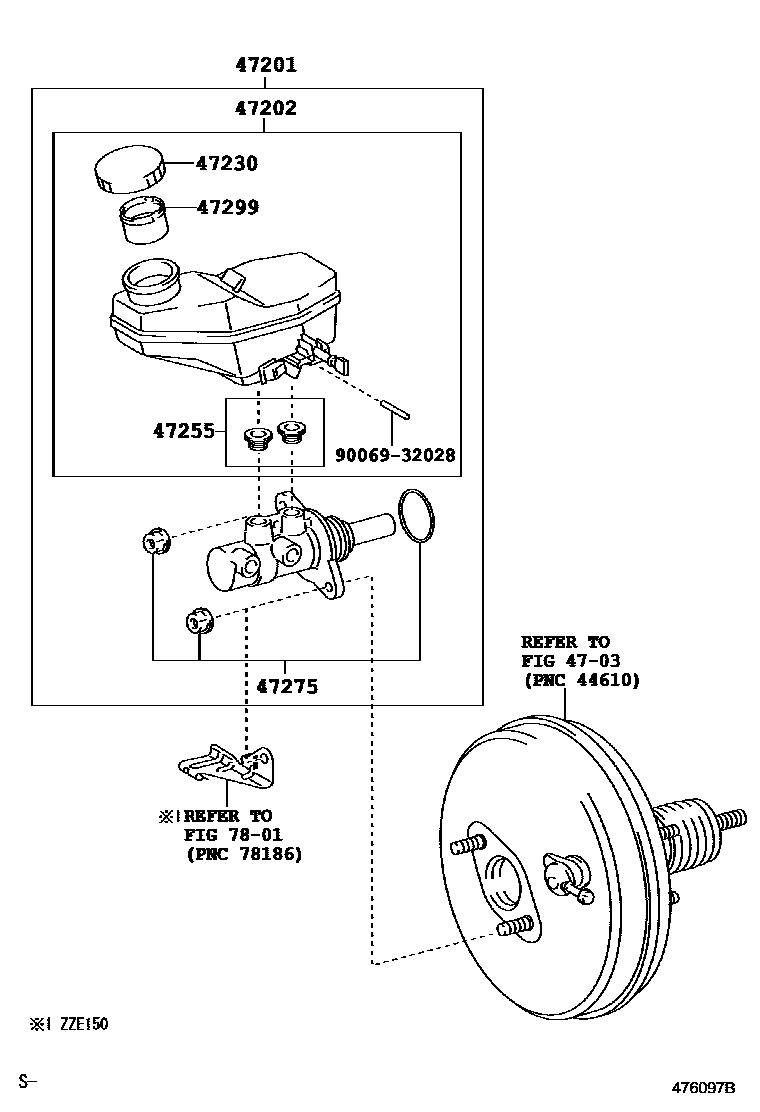

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09310iADE150,ZRE15#,ZZE150200706-200804

sub47201-09530

main47201-09530iZZE150200804-201001

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09100iZZE150200706-201001

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iZZE150200706-201001

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iZZE150200706-201001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201001

7801

9006932028

main90069-32028

9 parts on this diagram · 1 diagram in section
