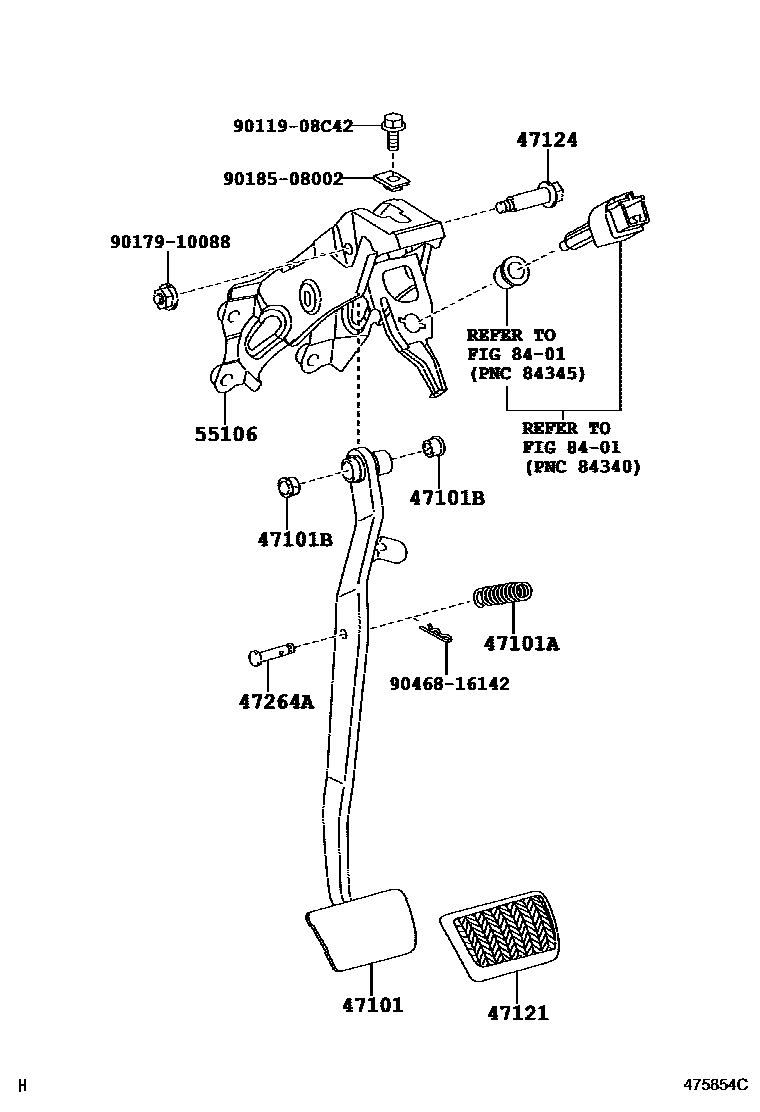

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12630iADE150,ZRE15#,ZZE150..5F,6F200706-200708

sub47101-12631

main47101-12631iZZE150200709-201001

main47101-12640iZRE151..5FS200706-200708

sub47101-12641

main47101-12641iZRE151..5FS200709-201001

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iZRE15#200706-201210

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iADE150,ZRE15#,ZZE150200706-201001

47121PAD, BRAKE PEDAL

main31321-42010iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201001

main47121-42010iZRE151..5FS200706-201001

47124SHAFT, BRAKE PEDAL

main90109-10174iZRE15#200706-201001

47264APIN(FOR PUSH ROD)

main90249-08256iZZE150200706-201001

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12680iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

12 parts on this diagram · 1 diagram in section
