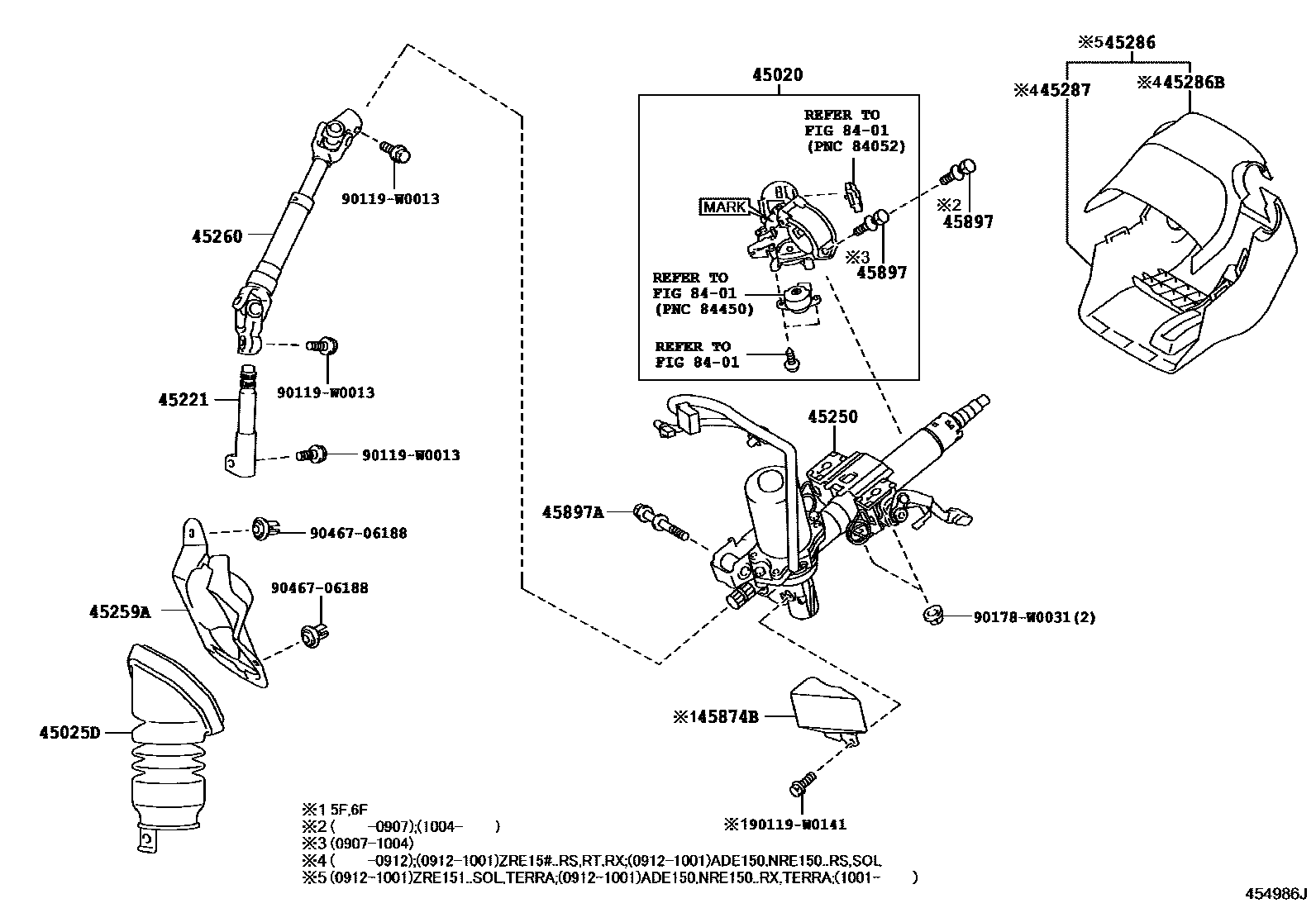

STEERING COLUMN & SHAFT

0001 1 0002 1STARTING SYSTEM-PUSH BUTTON

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-02170iADE150,NRE150,ZRE15#..6F,6FS200811-200907

MARK = 45020-0204

main45020-02170iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

main45020-02230iZRE151..RS,RT;ADE150,NRE150,ZRE152200907-201001

MARK = 45020-0203

sub45020-02231

sub45897-12050

main45020-02230iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201004

sub45020-02231

sub45897-12050

main45020-02231iADE150,NRE150,ZRE151201004

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02080iZZE150200706-201001

45221SHAFT, STEERING INTERMEDIATE

main45221-02050iZZE150200706-201001

45250COLUMN ASSY, STEERING

main45250-02670iADE150,ZRE15#,ZZE150200706-200709

sub45250-02671

main45250-02671iADE150,ZRE15#,ZZE150200710-200805

sub45250-02672

main45250-02672iZZE150200806-201101

sub45250-02673

main45250-02673iADE150,NRE150,ZRE151201102

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02070iZZE150200706-201001

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02070iZZE150200706-201001

45286COVER, STEERING COLUMN

main45286-02936-B0iADE150,ZRE151..RX,SOL200912

DK.GRAY,TRIM1#

main45286-02936-B0iADE150,ZRE151..RX,SOL200912

DK.GRAY,TRIM1#,4#

45286BCOVER, STEERING COLUMN, UPR

main45286-02250-B0iZRE152..RS;ZRE151,ZZE150..RT200706-201001

DK.GRAY,TRIM1#

main45286-02250-B0iZRE152..RX;ADE150,ZZE150..RS,RX;ZRE151..(5F,5FS)..RS200706-201001

DK.GRAY,TRIM1#,4#

45287COVER, STEERING COLUMN, LWR

main45287-02240-B0iZRE152..RS;ZRE151,ZZE150..RT200706-201001

DK.GRAY,TRIM1#

main45287-02240-B0iZRE152..RX;ADE150,ZZE150..RS,RX;ZRE151..(5F,5FS)..RS200706-201001

DK.GRAY,TRIM1#,4#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-0F010iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200807-201001

main45874-12090iADE150,ZRE15#,ZZE150..5F,6F200706-200806

45897BOLT, STEERING LOCK SET

main45897-12020iZZE150200706-200907

main45897-12050iADE150,NRE150,ZRE151200907-201003

45897ABOLT, TILT STEERING PAWL SET

main45897-20020iZZE150200807-201001

main45897-42010iADE150,ZRE15#,ZZE150200706-200806

8401

90119W0013

main90119-W0013

90119W0141

main90119-W0141

90178W0031

main90178-W0031

9046706188

main90467-06188

17 parts on this diagram · 2 diagrams in section
