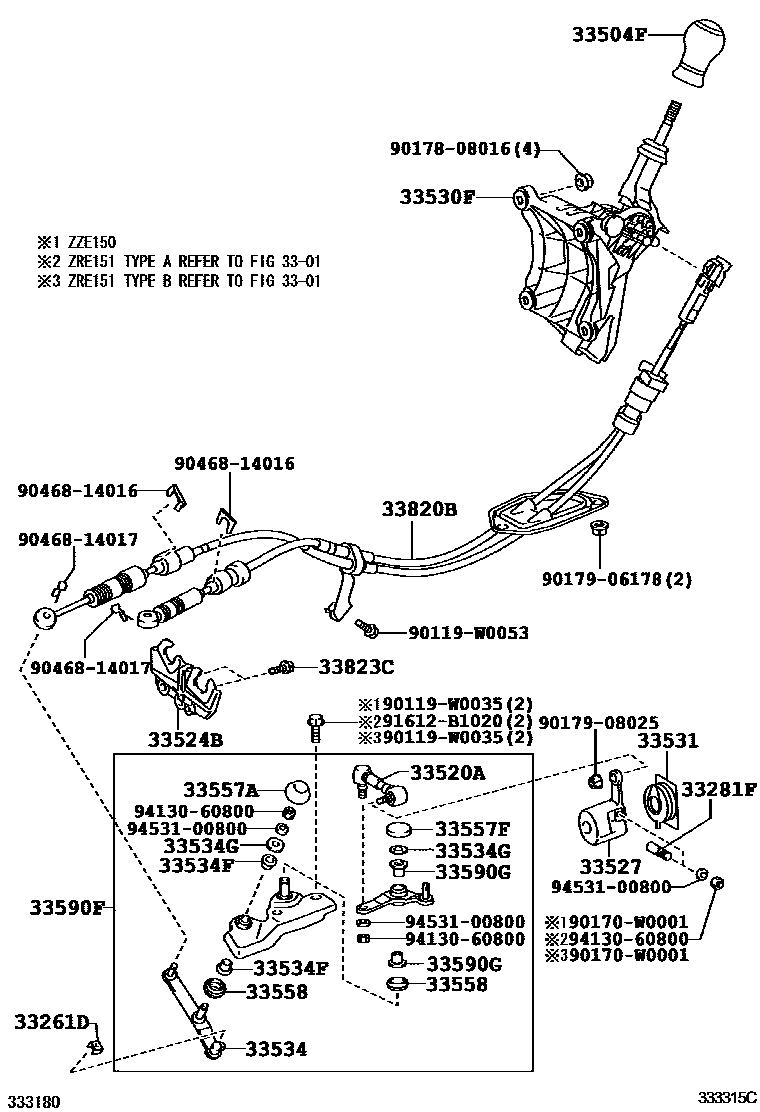

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iZRE15#..5F,6F¥450200706-200902

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iZZE150¥160200706-200902

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02120-B1iZRE151,ZZE150..5F..RT200706-200902

DK.GRAY,TRIM1#

main33504-02120-B1iZRE151..5F..RS200706-200902

STEERING WHEEL-3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main33504-02130-B1iZZE150..RS200706-200811

DK.GRAY,TRIM1#

main33504-02130-B1iZRE151..5F..RS200706-200902

DK.GRAY,TRIM1#,4#

main33504-02140-B1iADE150,ZRE152..RS200706-200903

STEERING WHEEL-3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

sub33504-02141

main33504-02140-B1iNRE150..SOL200811-201001

STEERING WHEEL-3-SPOKE,URETHANE,DK.GRAY,TRIM1#

sub33504-02141

main33504-02140-B1iNRE150..SOL200706-201001

DK.GRAY,TRIM1#

sub33504-02141

main33504-02150-B1iADE150,ZRE151..RX,SOL200706-201001

DK.GRAY,TRIM1#,4#

sub33504-02151

main33504-02150-B1iADE150,ZRE152..RX200706-200903

STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#

sub33504-02151

main33504-02150-B1iNRE150..SOL200811-201001

DK.GRAY,TRIM1#

sub33504-02151

main33504-02150-B1iZRE151..6F..RS;ADE150,ZRE152..RX200902-201001

STEERING WHEEL-3-SPOKE,LEATHER, WITH(STEERING SWITCH),DK.GRAY,TRIM1#

sub33504-02151

main33504-02151-B1iADE150,ZRE151..RX,SOL201002-201210

DK.GRAY,TRIM1#,4#

main33504-02151-B1iADE150,ZRE151..RX,SOL201002-201210

DK.GRAY,TRIM1#

main33504-12280-B0iZRE151..5FS..RT200706-201001

STEERING WHEEL-3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main33504-12280-B0iZRE151..5FS..RS200706-201001

DK.GRAY,TRIM1#

main33504-12290-B0iZRE151..6FS..RS200902-201001

STEERING WHEEL-3-SPOKE,LEATHER, WITH(STEERING SWITCH),DK.GRAY,TRIM1#

sub33504-12290¥7,200

main33504-12290-B0iZRE151..6FS..RS200706-201001

DK.GRAY,TRIM1#,4#

sub33504-12290¥7,200

main33504-12290-B0iZRE151..5FS..RT200706-200902

STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#

sub33504-12290¥7,200

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iZZE150¥1,490200706-200902

33524BBRACKET, CONTROL CABLE

main33524-12090iADE150..RX200706-201211

main33524-52050iZRE15#..5F,6F¥2,460200706-200902

main33524-52060iZZE150200706-200811

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-52011iZZE150¥2,290200706-200902

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02200iZZE150200706-200902

main33530-02210iADE150200706-200903

main33530-02240iZRE151..6F..(RS,RT);ADE150,NRE150,ZRE152200811-201210

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-17010iZRE15#..5F,6F¥490200706-200902

33534BELLCRANK, SELECTING

main33534-12120iZRE15#..5F,6F¥2,560200706-200902

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iZZE150¥130200706-200902

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iZZE150¥100200706-201001

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-20010iADE150..RX¥370200706-201211

NO.2

main33557-32010iZZE150¥280200706-200902

main33557-33010iADE150¥450200706-201211

NO.1

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iZRE15#..5F,6F¥370200706-200902

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iZZE150¥230200706-201001

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-12070iZZE150¥6,000200706-200902

main33590-20040iADE150¥2,130200706-201211

33590GBUSH (FOR SELECTING BELL CRANK)

main33546-20020iZZE150¥720200706-200902

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02450iZZE150200706-200811

main33820-02470iZRE151..5F200706-200902

main33820-02480iZRE152200706-200902

main33820-02490iADE150¥29,800200706-201210

main33820-02670iNRE150..TERRA200811-201210

main33820-02680iZRE151..SOL,TERRA200902-201210

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60iNRE150..TERRA;ZRE151..SOL,TERRA¥100200811-201210

*201,*202,*206

main90119-W0178iZZE150200706-200902

main91611-G0820iADE150..RX¥160200706-201210

90119W0035

main90119-W0035

90119W0053

main90119-W0053¥100

90170W0001

main90170-W0001

9017808016

main90178-08016

9017906178

main90179-06178¥100

9017908025

main90179-08025¥80

9046814016

main90468-14016¥160

9046814017

main90468-14017¥90

91612B1020

main91612-B1020¥130

9413060800

main94130-60800¥60

9453100800

main94531-00800¥160

29 parts on this diagram · 5 diagrams in section
