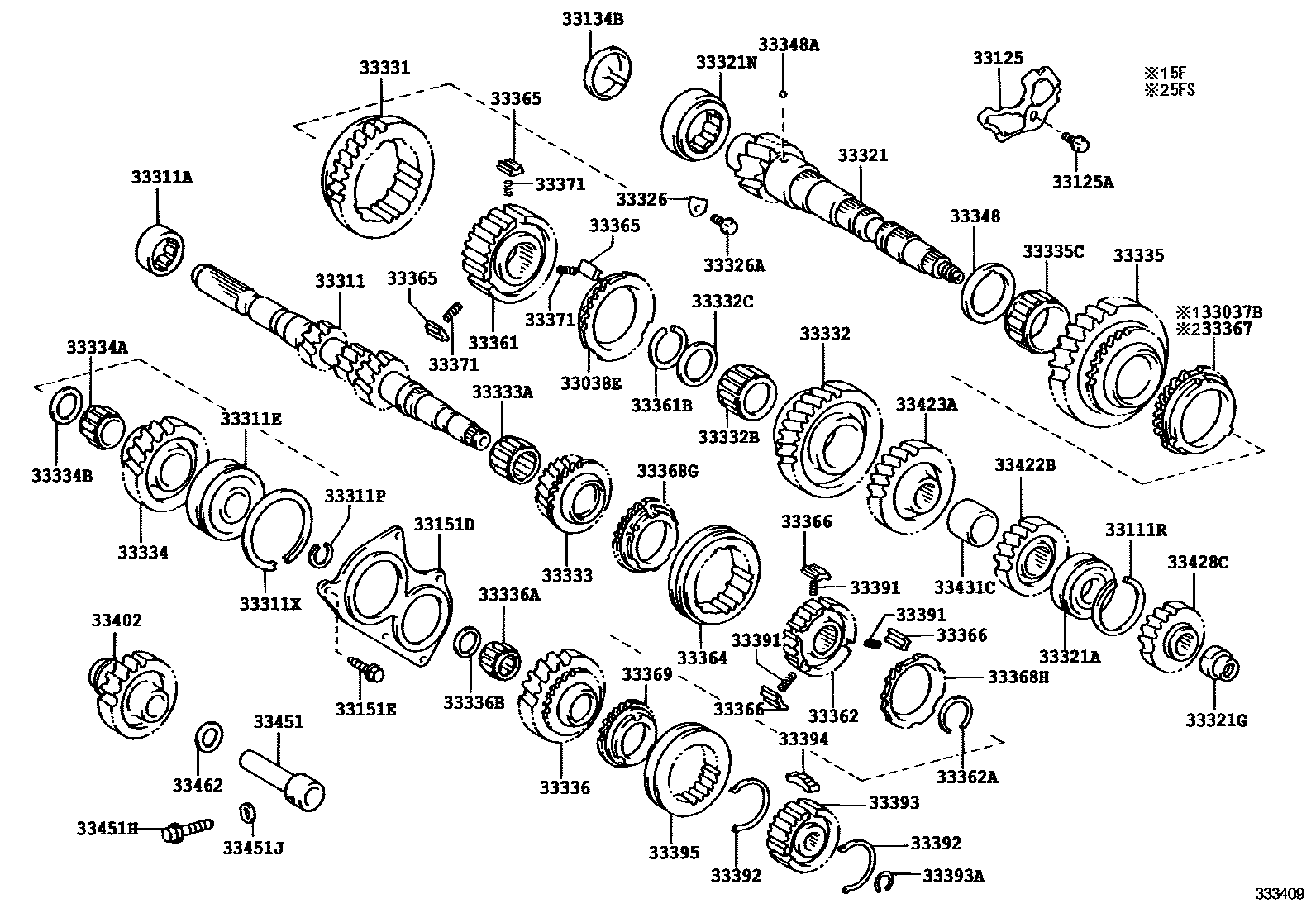

TRANSMISSION GEAR (MTM)

0001 1C50,C50A 0002 1C66 0003 1EA60,EA61 0004 1EC60,EC60A

33037BRING SET, SYNCHRONIZER, NO.1

main33037-05020iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

sub33037-20100¥3,200

main33037-12040iZRE15#..5F,6F¥2,920200706-200902

main33037-20060iADE150¥5,200200706-201210

main33037-20100iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥3,200200811-201210

*201,*206

main33037-20100iZRE151..6FS¥3,200200902-201001

33038ERING SET, SYNCHRONIZER, NO.2

main33038-12020iZRE15#..5F,6F¥4,090200706-200902

main33038-17010iZRE151..5FS¥5,100200706-200902

33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)

main90520-57002iZZE150¥190200706-200902

33125RECEIVER, MANUAL TRANSAXLE CASE

main33125-12011iZRE15#¥170200706-200902

33125ABOLT(FOR TRANSAXLE CASE RECEIVER)

main91611-B0812iZZE150¥70200706-200902

33134BCOVER, OUTPUT SHAFT(MTM)

main33134-0D050iNRE150,ZRE151201103-201210

*202

main33134-12022iZZE150¥230200706-200902

main33134-20020iADE150..RX¥410200706-201210

main33134-20040iNRE150..TERRA;ZRE151..SOL,TERRA¥250200912-201210

*201,*206

main33134-20040iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥250200811-201001

*201,*202,*206

main33134-20040iZRE151..6FS¥250200902-201001

main33134-20040iNRE150..TERRA;ZRE151..SOL,TERRA¥250200912-201103

*202

33151DRETAINER, BEARING, REAR(MTM)

main33151-52010iZZE150¥2,420200706-200902

33151EBOLT(FOR REAR BEARING RETAINER)

main90119-08944iZZE150¥90200706-200902

33311SHAFT, INPUT

main33311-02020iZRE151,ZZE150..5F200706-200811

(L)

sub33311-12230¥29,100

main33311-05030iNRE150..TERRA;ZRE151..SOL,TERRA200811-201210

*202

sub33311-05031

main33311-12230iZRE151..5FS¥29,100200706-200902

(J)

sub33311-12231¥24,200

main33311-12280iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥29,100200811-201210

*206

sub33311-12281¥18,300

main33311-20201iZRE152¥29,100200706-200902

sub33311-20202¥29,100

main33311-20230iADE150¥29,100200706-201112

sub33311-20231

main33311-20231iADE150201112-201210

sub33311-20232¥29,100

main33311-20240iZRE151..6FS¥29,100200902-201001

sub33311-20241¥29,100

main33311-20240iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥29,100200811-201210

*201

sub33311-20241¥29,100

33311ABEARING (FOR INPUT SHAFT FRONT)

main90080-37020iZZE150200706-200811

sub90365-25021¥1,460

main90080-37020iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub90365-25021¥1,460

main90363-25081iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥1,850200811-201210

*201,*206

main90363-25081iZRE151..6FS¥1,850200902-201001

main90363-W0010iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

sub90363-W0015¥1,850

main90365-25021iZRE15#..5FS,6F¥1,460200706-200902

main90365-25021iZRE151..5F¥1,460200712-200902

TYPE A:REFER 33-01

main90365-30032iADE150¥4,460200706-201210

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90080-36138iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub90363-25048¥2,060

main90080-36138iZZE150200706-200811

sub90363-25048¥2,060

main90363-18013iZRE152¥1,920200706-200902

main90363-25068iZRE151..5FS¥2,300200706-200902

sub90363-25092¥2,300

main90363-25068iZRE151..5F¥2,300200712-200902

TYPE A:REFER 33-01

sub90363-25092¥2,300

main90363-28014iZRE151..6FS¥2,470200902-201001

sub90363-28016¥2,470

main90363-28014iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥2,470200811-201210

*201,*206

sub90363-28016¥2,470

main90363-32048iADE150200706-201112

sub90363-32053¥3,060

main90363-32053iADE150¥3,060201112-201210

main90363-W0011iNRE150..TERRA;ZRE151..SOL,TERRA200811-201210

*202

sub90363-W0013

33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-22006iZRE15#¥110200706-200902

T=2.29-2.34,MARK A

main90520-22007iZZE150¥110200706-200902

T=2.35-2.40,MARK B

main90520-22008iZZE150¥110200706-200902

T=2.41-2.46,MARK C

main90520-22009iZZE150¥110200706-200902

T=2.47-2.52,MARK D

main90520-22010iZRE15#¥110200706-200902

T=2.53-2.58,MARK E

main90520-22011iZZE150¥110200706-200902

T=2.59-2.64,MARK F

main90520-72007iADE150¥170200706-201001

33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-64002iZRE15#¥190200706-200902

33321SHAFT, OUTPUT

main33321-02040iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub33321-12190

main33321-02040iZZE150200706-200811

sub33321-12190

main33321-05060iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

sub33321-05061

sub90366-W0028¥1,890

main33321-12190iZRE151..5F200712-200902

TYPE A:REFER 33-01

sub33321-12191

main33321-12190iZRE151..5FS200706-200902

sub33321-12191

main33321-12320iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥16,900200811-201210

*206

sub33321-12321¥16,900

sub90366-28019¥1,890

main33321-20180iZRE152¥17,900200706-200902

sub33321-20181¥17,900

main33321-20210iADE150200706-201210

main33321-20230iZRE151..6FS200902-201001

sub33321-20231¥16,900

sub90366-28019¥1,890

main33321-20230iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*201

sub33321-20231¥16,900

sub90366-28019¥1,890

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-21001iZRE152¥1,920200706-200902

main90363-32047iADE150200706-201210

main90363-W0007iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub90363-25060¥2,170

main90363-W0007iZZE150200706-200811

sub90363-25060¥2,170

main90366-30096iNRE150..TERRA;ZRE151..SOL,TERRA¥1,850200811-201210

*201,*206

main90366-30096iZRE151..6FS¥1,850200902-201001

main90366-W0016iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-200909

*202

sub90366-W0025¥1,850

main90366-W0025iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥1,850200909-201210

*202

main90903-63010iZRE151..5FS¥2,750200706-200902

sub90363-25060¥2,170

main90903-63010iZRE151..5F¥2,750200712-200902

TYPE A:REFER 33-01

sub90363-25060¥2,170

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-18005iZZE150¥190200706-200902

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90080-37021iZZE150200706-200811

sub90365-33005¥3,030

main90080-37021iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub90365-33005¥3,030

main90365-33005iZRE151..5FS¥3,030200706-200902

main90365-33005iZRE151..5F¥3,030200712-200902

TYPE A:REFER 33-01

main90365-33006iZRE152¥3,300200706-200902

main90365-36005iADE150..RX200706-201210

main90366-28016iZRE151..6FS¥1,890200902-201001

main90366-28016iNRE150..TERRA;ZRE151..SOL,TERRA¥1,890200811-201210

*201,*206

main90366-W0019iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-200909

*202

sub90366-W0022

main90366-W0022iNRE150..TERRA;ZRE151..SOL,TERRA200909-201210

*202

33326PLATE, BEARING LOCK

main33326-12010iZRE15#¥250200706-200902

main33326-20020iADE150¥780200706-201001

33326ABOLT (FOR BEARING LOCK PLATE)

main91611-B0812iADE150..RX¥70200706-201001

33331GEAR, REVERSE

main33331-02010iZRE151..5F200706-200902

(L)

sub33331-12070¥8,000

main33331-05030iNRE150..TERRA;ZRE151..SOL,TERRA¥8,000200811-201210

*202

main33331-12060iZRE151..5FS¥12,900200706-200902

main33331-12070iZRE152¥8,000200706-200902

(J)

main33331-20080iADE150¥9,400200706-201210

main33331-20090iNRE150..TERRA;ZRE151..SOL,TERRA¥8,000200811-201210

*201,*206

main33331-20090iZRE151..6FS¥8,000200902-201001

33332GEAR, 2ND

main33332-02010iZZE150200706-200902

(L)

sub33332-12100¥7,100

main33332-05040iNRE150..TERRA;ZRE151..SOL,TERRA200811-201210

*202

sub33332-12170¥12,000

main33332-12100iZZE150¥7,100200706-200902

(J)

main33332-12140iZRE151..5FS¥11,400200706-200902

main33332-12170iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥12,000200811-201210

*206

main33332-20150iADE150..RX¥14,500200706-201210

sub33332-20151

main33332-20160iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥14,500200811-201210

*201

sub33332-12170¥12,000

main33332-20160iZRE151..6FS¥14,500200902-201001

sub33332-12170¥12,000

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90080-36141iZZE150200706-200811

sub90364-32014¥1,670

sub90560-32008¥100

main90080-36141iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub90364-32014¥1,670

sub90560-32008¥100

main90364-32014iZRE15#..5FS,6F¥1,670200706-200902

main90364-32014iZRE151..5F¥1,670200712-200902

TYPE A:REFER 33-01

main90364-47011iZRE151..6FS¥1,330200902-201001

main90364-47011iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥1,330200811-201210

*201,*206

main90364-50004iADE150..RX¥1,570200706-201210

main90364-W0006iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

sub90364-W0008¥1,490

33332CSPACER (FOR 2ND GEAR BEARING)

main90080-56119iZZE150200706-200811

main90080-56119iZRE151..5F200706-200902

TYPE B:REFER 33-01

main90560-32008iZRE15#..5FS,6F¥100200706-200902

main90560-32008iZRE151..5F¥100200712-200902

TYPE A:REFER 33-01

33333GEAR, 3RD

main33034-05020iZZE150200706-200811

(L)

sub33034-12150¥9,700

main33034-05020iZZE150200706-200811

TYPE B:SEE 33-01,(L)

sub33034-12150¥9,700

main33034-05030iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

main33034-12111iZRE151..5F¥11,600200706-200811

TYPE B:SEE 33-01,(J)

sub33034-12150¥9,700

main33034-12111iZZE150¥11,600200706-200811

(J)

sub33034-12150¥9,700

main33034-12150iZRE151..5F¥9,700200811-200902

TYPE B:REFER 33-01

main33034-12150iZRE15#..5FS,6F¥9,700200706-200902

main33034-12150iZRE151..5F¥9,700200712-200902

TYPE A:REFER 33-01

main33034-12220iNRE150..TERRA;ZRE151..SOL,TERRA¥7,300200811-201210

*206

main33034-20120iZRE151..6FS¥11,600200902-201001

sub33034-12220¥7,300

main33034-20120iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥11,600200811-201210

*201

sub33034-12220¥7,300

main33333-20110iADE150200706-201210

sub33333-64020

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90080-36142iZZE150200706-200811

sub90364-31002¥1,530

main90080-36142iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub90364-31002¥1,530

main90364-31002iZRE151..5F¥1,530200712-200902

TYPE A:REFER 33-01

main90364-31002iZRE15#..5FS,6F¥1,530200706-200902

main90364-36020iADE150200706-200808

sub90364-36022¥1,520

main90364-36022iADE150¥1,520200808-201210

main90364-37015iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥1,260200811-201210

*201,*206

main90364-37015iZRE151..6FS¥1,260200902-201001

main90364-W0007iNRE150..TERRA;ZRE151..SOL,TERRA¥1,260200811-201210

*202

33334GEAR, 4TH

main33035-05030iZZE150200706-200811

(L)

sub33035-20161¥11,600

main33035-05030iZRE151..5F200706-200811

TYPE B:SEE 33-01,(L)

sub33035-20161¥11,600

main33035-05050iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

sub33035-05051

main33035-12140iZRE151..5F¥11,600200712-200902

TYPE A:REFER 33-01

sub33035-12180¥11,600

main33035-12140iZRE15#..5FS,6F¥11,600200706-200902

sub33035-12180¥11,600

main33035-12140iZRE151..5F¥11,600200811-200902

TYPE B:REFER 33-01

sub33035-12180¥11,600

main33035-12160iNRE150..TERRA;ZRE151..SOL,TERRA¥8,500200811-201210

*206

main33035-20161iZZE150¥11,600200706-200811

(J)

sub33035-12140¥11,600

main33035-20161iZZE150¥11,600200706-200811

TYPE B:SEE 33-01,(J)

sub33035-12140¥11,600

main33035-20210iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥13,500200811-201210

*201

sub33035-12160¥8,500

main33035-20210iZRE151..6FS¥13,500200902-201001

sub33035-12160¥8,500

main33334-20060iADE150¥11,400200706-201210

sub33334-64030

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90080-36161iZZE150200706-200811

sub90364-29002¥1,210

main90080-36161iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub90364-29002¥1,210

main90364-29002iZRE15#..5FS,6F¥1,210200706-200902

main90364-29002iZRE151..5F¥1,210200712-200902

TYPE A:REFER 33-01

main90364-37015iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥1,260200811-201210

*201,*206

main90364-37015iZRE151..6FS¥1,260200902-201001

main90364-42004iADE150200706-200808

sub90364-42007¥1,440

main90364-42007iADE150..RX¥1,440200808-201210

main90364-W0007iNRE150..TERRA;ZRE151..SOL,TERRA¥1,260200811-201210

*202

33334BSPACER (FOR 4TH GEAR BEARING)

main90560-29001iZZE150¥80200706-200902

main90560-37004iNRE150..TERRA;ZRE151..SOL,TERRA¥70200811-201210

*201,*202,*206

main90560-37004iZRE151..6FS¥70200902-200912

main90560-42002iADE150..RX¥70200706-201210

33335GEAR, 1ST

main33032-12090iZRE151..5FS¥15,400200706-200902

sub33032-12130¥15,400

main33335-02020iZRE151..5F200706-200902

(L)

sub33335-12120¥12,900

main33335-05030iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

sub33335-12190¥10,700

main33335-12120iZZE150¥12,900200706-200902

(J)

sub33335-12200¥12,900

main33335-12130iZRE152200706-200902

sub33335-12210

main33335-12190iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥10,700200811-201210

*206

main33335-20140iADE150¥16,000200706-201210

main33335-20160iZRE151..6FS¥12,900200902-201001

sub33335-12190¥10,700

main33335-20160iNRE150..TERRA;ZRE151..SOL,TERRA¥12,900200811-201210

*201

sub33335-12190¥10,700

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90080-36140iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub90364-38007¥1,920

main90080-36140iZZE150200706-200811

sub90364-38007¥1,920

main90364-38007iZRE15#..5FS,6F¥1,920200706-200902

main90364-38007iZRE151..5F¥1,920200712-200902

TYPE A:REFER 33-01

main90364-47009iADE150¥2,430200706-201210

main90364-47010iZRE151..6FS¥1,330200902-201001

main90364-47010iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥1,330200811-201210

*201,*206

main90364-W0005iNRE150..TERRA;ZRE151..SOL,TERRA¥1,330200811-201210

*202

33336GEAR, 5TH

main33036-05020iZZE150200706-200811

(L)

sub33036-12130¥11,300

main33036-05020iZZE150200706-200811

TYPE B:SEE 33-01,(L)

sub33036-12130¥11,300

main33036-05030iNRE150..TERRA;ZRE151..SOL,TERRA200811-201210

*202

main33036-12130iZRE151..5F¥11,300200706-200902

main33036-12130iZRE151..5F¥11,300200811-200902

TYPE B:REFER 33-01

main33036-12210iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥8,500200811-201210

*206

main33036-20070iZRE151..5F¥13,500200706-200811

TYPE B:SEE 33-01,(J)

sub33036-12130¥11,300

main33036-20070iZRE151..5F¥13,500200706-200811

(J)

sub33036-12130¥11,300

main33036-20110iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥13,500200811-201210

*201

sub33036-12210¥8,500

main33036-20110iZRE151..6FS¥13,500200902-201001

sub33036-12210¥8,500

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90080-36162iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub90364-24006¥1,410

main90080-36162iZZE150200706-200811

sub90364-24006¥1,410

main90364-24006iZRE151..5F¥1,410200712-200902

TYPE A:REFER 33-01

sub90364-24005¥1,410

main90364-24006iZRE151..5FS¥1,410200706-200902

sub90364-24005¥1,410

main90364-24010iZRE152¥1,380200706-200902

main90364-37015iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥1,260200811-201210

*201,*206

main90364-37015iZRE151..6FS¥1,260200902-201001

main90364-42004iADE150200706-200808

sub90364-42007¥1,440

main90364-42007iADE150..RX¥1,440200808-201210

main90364-W0007iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥1,260200811-201210

*202

33336BSPACER (FOR 5TH GEAR BEARING)

main90560-24007iZRE152¥60200706-200902

main90560-25006iZRE151¥80200706-200902

main90560-42002iADE150..RX¥70200706-201001

33348WASHER, 1ST GEAR THRUST

main33348-12010iZZE150¥390200706-200902

33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)

main90080-36170iZZE150200706-200811

main90080-36170iZRE151..5F200706-200902

TYPE B:REFER 33-01

main90360-05012iZRE15#..5FS,6F¥100200706-200902

main90360-05012iZRE151..5F¥100200712-200902

TYPE A:REFER 33-01

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-02020iZZE150200706-200902

(L)

sub33361-12080¥3,910

main33361-05030iNRE150..TERRA;ZRE151..SOL,TERRA¥3,620200811-201210

*202

main33361-12080iZRE151..5F¥3,910200706-200902

(J)

main33361-20060iADE150¥5,900200706-201210

main33361-20070iZRE151..6FS¥4,180200902-201001

main33361-20070iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥4,180200811-201210

*201,*206

main33361-52030iZRE151..5FS¥6,300200706-200902

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90520-29018iZZE150¥110200706-200902

T=2.50-2.55,MARK A

main90520-29019iZRE15#¥110200706-200902

T=2.56-2.61,MARK B

main90520-29020iZRE15#¥110200706-200902

T=2.62-2.67,MARK C

main90520-29021iZRE15#¥110200706-200902

T=2.68-2.73,MARK D

main90520-29022iZZE150¥110200706-200902

T=2.74-2.79,MARK E

main90520-29023iZRE15#¥110200706-200902

T=2.80-2.85,MARK F

main90520-33030iADE150¥90200706-201001

T=2.25,MARK 1

main90520-33031iADE150..RX¥90200706-201001

T=2.30,MARK 2

main90520-33032iADE150¥90200706-201001

T=2.35,MARK 3

main90520-33034iADE150¥90200706-201001

T=2.40,MARK 4

main90520-33035iADE150¥90200706-201001

T=2.45,MARK 5

main90520-33036iADE150¥50200706-201001

T=2.50,MARK 6

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-05020iZRE151..5F200706-200902

TYPE B:SEE 33-01,(L)

sub33362-12040¥5,400

main33362-05020iZZE150200706-200811

(L)

sub33362-12040¥5,400

main33362-05030iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

sub33362-05031

main33362-12040iZRE151..5F¥5,400200706-200902

TYPE B:SEE 33-01,(J)

sub33362-12050¥5,400

main33362-12040iZRE15#..5FS,6F¥5,400200706-200712

sub33362-12050¥5,400

main33362-12040iZZE150¥5,400200706-200811

(J)

sub33362-12050¥5,400

main33362-12050iZRE151..5F¥5,400200712-200902

TYPE A:REFER 33-01

sub33362-12051¥3,410

main33362-20030iADE150¥4,420200706-201210

main33362-20040iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥4,500200811-201210

*201,*206

sub33362-20041¥3,400

main33362-20040iZRE151..6FS¥4,500200902-201001

sub33362-20041¥3,400

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-27046iZRE15#,ZZE150¥100200706-200902

T=2.30-2.35,MARK 0

main90520-27047iZRE15#,ZZE150¥100200706-200902

T=2.36-2.41,MARK 1

main90520-27048iZRE15#,ZZE150¥100200706-200902

T=2.42-2.47,MARK 2

main90520-27049iZRE15#,ZZE150¥100200706-200902

T=2.48-2.53,MARK 3

main90520-27050iZRE15#,ZZE150¥100200706-200902

T=2.54-2.59,MARK 4

main90520-27051iZRE15#,ZZE150¥100200706-200902

T=2.60-2.65,MARK 5

main90520-33030iADE150¥90200706-201210

T=2.25,MARK 1

main90520-33031iADE150¥90200706-201210

T=2.30,MARK 2

main90520-33032iADE150¥90200706-201210

T=2.35,MARK 3

main90520-33034iADE150¥90200706-201210

T=2.40,MARK 4

main90520-33035iADE150..RX¥90200706-201210

T=2.45,MARK 5

main90520-33036iADE150..RX¥50200706-201210

T=2.50,MARK 6

main90520-35034iNRE150..TERRA;ZRE151..SOL,TERRA¥90200811-201210

T=2.27,MARK 0,*201,*202,*206

main90520-35034iZRE151..6FS¥90200902-200912

T=2.27,MARK 0

main90520-35035iZRE151..6FS¥90200902-200912

T=2.32,MARK 1

main90520-35035iNRE150..TERRA;ZRE151..SOL,TERRA¥90200811-201210

T=2.32,MARK 1,*201,*202,*206

main90520-35036iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥90200811-201210

T=2.37,MARK 2,*201,*202,*206

main90520-35036iZRE151..6FS¥90200902-200912

T=2.37,MARK 2

main90520-35037iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥90200811-201210

T=2.42,MARK 3,*201,*202,*206

main90520-35037iZRE151..6FS¥90200902-200912

T=2.42,MARK 3

main90520-35038iZRE151..6FS¥90200902-200912

T=2.47,MARK 4

main90520-35038iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥90200811-201210

T=2.47,MARK 4,*201,*202,*206

main90520-35039iNRE150..TERRA;ZRE151..SOL,TERRA¥90200811-201210

T=2.52,MARK 5,*201,*202,*206

main90520-35039iZRE151..6FS¥90200902-200912

T=2.52,MARK 5

main90520-35040iZRE151..6FS¥90200902-200912

T=2.57,MARK 6

main90520-35040iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥90200811-201210

T=2.57,MARK 6,*201,*202,*206

main90520-35041iNRE150..TERRA;ZRE151..SOL,TERRA¥90200811-201210

T=2.62,MARK 7,*201,*202,*206

main90520-35041iZRE151..6FS¥90200902-200912

T=2.62,MARK 7

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-05020iZZE150200706-200902

(L)

sub33364-12050¥6,800

main33364-05030iNRE150..TERRA;ZRE151..SOL,TERRA200811-201210

*202

main33364-12050iZRE15#..5FS,6F¥6,800200706-200901

sub33364-12051¥4,180

main33364-12050iZRE151..5F¥6,800200712-200901

TYPE A:REFER 33-01

sub33364-12051¥4,180

main33364-12050iZRE151..5F¥6,800200706-200902

(J)

sub33364-12051¥4,180

main33364-12051iZRE15#..5FS,6F¥4,180200901-200902

TYPE A:REFER 33-01

main33364-12060iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥4,420200811-201210

*206

main33364-20060iADE150..RX¥7,100200706-201210

sub33364-20061¥4,420

main33364-20070iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥7,100200811-201210

*201

sub33364-12060¥4,420

main33364-20070iZRE151..6FS¥7,100200902-201001

sub33364-12060¥4,420

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-05010iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

main33365-20080iZRE151..6FS¥180200902-201001

main33365-20080iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥180200811-201210

*201,*206

main33365-52030iZRE15#¥140200706-200902

main33365-53010iADE150..RX¥210200706-201210

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33365-05010iNRE150..TERRA;ZRE151..SOL,TERRA200811-201210

*202

main33365-20080iZRE151..6FS¥180200902-201001

main33365-20080iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥180200811-201210

*201,*206

main33366-52030iZRE15#¥140200706-200902

33367RING, SYNCHRONIZER, NO.1

main33367-20070iZRE151..5FS¥2,910200706-200902

33368GRING, SYNCHRONIZER (FOR 3RD GEAR)

main33368-05030iZZE150200706-200811

sub33368-12210¥2,200

main33368-05030iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub33368-12210¥2,200

main33368-12210iZRE151..5F¥2,200200712-200902

TYPE A:REFER 33-01

main33368-20080iZRE15#..5FS,6F¥3,490200706-200902

sub33368-20090¥2,200

33368HRING, SYNCHRONIZER (FOR 4TH GEAR)

main33368-05030iZZE150200706-200811

sub33368-12210¥2,200

main33368-05030iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub33368-12210¥2,200

main33368-12210iZRE15#..5FS,6F¥2,200200706-200902

main33368-12210iZRE151..5F¥2,200200712-200902

TYPE A:REFER 33-01

33369RING, SYNCHRONIZER, NO.3

main33369-0D010iZZE150200706-200811

sub33369-20040¥1,940

main33369-0D010iZRE151..5F200706-200902

TYPE B:REFER 33-01

sub33369-20040¥1,940

main33369-20020iZRE152¥3,080200706-200902

NO.1

main33369-20030iZRE152¥3,080200706-200902

NO.2

main33369-20040iZRE151..5F¥1,940200712-200902

TYPE A:REFER 33-01

main33369-20040iZRE151..5FS¥1,940200706-200902

main33369-20050iZRE151..6FS¥2,200200902-201001

main33369-20050iNRE150..TERRA;ZRE151..SOL,TERRA¥2,200200811-201210

*201,*202,*206

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-20030iADE150¥90200706-201001

sub33371-53010¥90

main33371-52030iZZE150¥90200706-200902

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33391-52020iZRE15#¥60200706-200902

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33391-12030iZZE150¥130200706-200902

main33392-35010iADE150¥230200706-201001

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-05020iZRE151..5F200706-200902

TYPE B:SEE 33-01,(L)

sub33393-12031¥5,100

main33393-05020iZZE150200706-200811

(L)

sub33393-12031¥5,100

main33393-05030iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

sub33393-05031

main33393-12031iZRE151..5F¥5,100200706-200902

TYPE B:SEE 33-01,(J)

sub33393-12060¥3,150

main33393-12031iZZE150¥5,100200706-200811

(J)

sub33393-12060¥3,150

main33393-12050iZRE152¥5,900200706-200902

main33393-12060iZRE151..5FS¥3,150200706-200902

main33393-12060iZRE151..5F¥3,150200712-200902

TYPE A:REFER 33-01

main33393-20030iADE150..RX¥4,420200706-201210

main33393-20040iZRE151..6FS¥4,500200902-201001

sub33393-20041¥3,400

main33393-20040iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥4,500200811-201210

*201,*206

sub33393-20041¥3,400

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-18002iZRE151¥90200706-200902

T=2.25-2.30,MARK A

main90520-18003iZRE151¥90200706-200902

T=2.31-2.36,MARK B

main90520-18004iZZE150¥90200706-200902

T=2.37-2.42,MARK C

main90520-18006iZRE151¥90200706-200902

T=2.43-2.48,MARK D

main90520-18007iZZE150¥90200706-200902

T=2.49-2.54,MARK E

main90520-18008iZZE150¥90200706-200902

T=2.55-2.60,MARK F

main90520-18009iZZE150¥90200706-200902

T=2.61-2.66,MARK G

main90520-20074iZRE152¥70200706-200902

T=1.75,MARK A,NO.1

main90520-20075iZRE152¥90200706-200902

T=1.80,MARK B,NO.1

main90520-20076iZRE152¥90200706-200902

T=1.85,MARK C,NO.1

main90520-20077iZRE152¥90200706-200902

T=1.90,MARK D,NO.1

main90520-20078iZRE152¥90200706-200902

T=1.95,MARK E,NO.1

main90520-20079iZRE152¥90200706-200902

T=2.00,MARK F,NO.1

main90520-20080iZRE152¥90200706-200902

T=2.05,MARK G,NO.1

main90520-20081iZRE152¥90200706-200902

T=2.10,MARK H,NO.1

main90520-20082iZRE152¥90200706-200902

T=2.15,MARK J,NO.1

main90520-22023iZRE152¥70200706-200902

T=2.30,NO MARK,NO.2

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33365-05010iNRE150..TERRA;ZRE151..SOL,TERRA200811-201210

*202

main33365-20080iZRE151..6FS¥180200902-201001

main33365-20080iNRE150..TERRA;ZRE151..SOL,TERRA¥180200811-201210

*201,*206

main33394-12030iZRE152¥130200706-200902

main33394-20020iADE150..RX¥250200706-201210

main33394-52020iZRE151¥80200706-200902

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-05021iZRE151..5F200706-200902

(L)

sub33395-20041¥3,620

main33395-05030iNRE150..TERRA;ZRE151..SOL,TERRA200811-201210

*202

main33395-12040iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥3,620200811-201210

*206

main33395-20030iZRE152¥5,900200706-200902

main33395-20041iZRE151..5FS¥3,620200706-200902

(J)

main33395-20050iADE150¥4,420200706-201210

main33395-20060iNRE150..TERRA;ZRE151..SOL,TERRA¥5,900200811-201210

*201

sub33395-12040¥3,620

main33395-20060iZRE151..6FS¥5,900200902-201001

sub33395-12040¥3,620

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-05020iZZE150200706-200902

(L)

sub33402-12042¥7,100

main33402-05030iNRE150..TERRA;ZRE151..SOL,TERRA200811-201210

*202

main33402-12042iZZE150¥7,100200706-200902

(J)

main33402-20061iZRE152¥11,400200706-200902

main33402-20080iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥8,000200811-201210

*201,*206

main33402-20080iZRE151..6FS¥8,000200902-201001

33422BGEAR, 4TH DRIVEN

main33035-20200iADE150..RX¥13,500200706-201210

sub33035-64030

main33422-05030iZRE151..5F200706-200811

TYPE B:SEE 33-01,(L)

sub33422-12090¥8,200

main33422-05030iZZE150200706-200811

(L)

sub33422-12090¥8,200

main33422-05050iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥5,200200811-201210

*202

main33422-12050iZZE150¥10,000200706-200811

TYPE B:SEE 33-01,(J)

sub33422-12090¥8,200

main33422-12050iZRE151..5F¥10,000200706-200811

(J)

sub33422-12090¥8,200

main33422-12090iZRE151..5F¥8,200200811-200902

TYPE B:REFER 33-01

main33422-12090iZRE151..5F¥8,200200712-200902

TYPE A:REFER 33-01

main33422-12090iZRE15#..5FS,6F¥8,200200706-200902

main33422-12110iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥5,200200811-201210

*206

main33422-20070iZRE151..6FS¥8,400200902-201001

sub33422-12110¥5,200

main33422-20070iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥8,400200811-201210

*201

sub33422-12110¥5,200

33423AGEAR, 3RD DRIVEN

main33034-20100iADE150200706-201210

sub33034-20101

main33423-05020iZZE150200706-200811

(L)

sub33423-12010¥7,000

main33423-05020iZRE151..5F200706-200811

TYPE B:SEE 33-01,(L)

sub33423-12010¥7,000

main33423-05030iNRE150..TERRA;ZRE151..SOL,TERRA¥6,200200811-201210

*202

main33423-12010iZRE15#..5FS,6F¥7,000200706-200902

main33423-12010iZZE150¥7,000200706-200902

(J)

main33423-12010iZZE150¥7,000200706-200811

TYPE B:SEE 33-01,(J)

main33423-12010iZRE151..5F¥7,000200811-200902

TYPE B:REFER 33-01

main33423-12070iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥6,200200811-201210

*206

main33423-20080iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥10,000200811-201210

*201

sub33423-12070¥6,200

main33423-20080iZRE151..6FS¥10,000200902-201001

sub33423-12070¥6,200

33428CGEAR, 5TH DRIVEN

main33036-20100iADE150..RX¥15,400200706-201210

sub33036-64040

main33428-05020iZZE150200706-200811

(L)

sub33428-12110¥8,200

main33428-05020iZZE150200706-200811

TYPE B:SEE 33-01,(L)

sub33428-12110¥8,200

main33428-05030iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

main33428-12050iZZE150¥9,800200706-200811

TYPE B:SEE 33-01,(J)

sub33428-12110¥8,200

main33428-12050iZZE150¥9,800200706-200811

(J)

sub33428-12110¥8,200

main33428-12110iZRE15#..5FS,6F¥8,200200706-200902

main33428-12110iZRE151..5F¥8,200200811-200902

TYPE B:REFER 33-01

main33428-12110iZRE151..5F¥8,200200712-200902

(J)

main33428-12150iNRE150..TERRA;ZRE151..SOL,TERRA¥5,200200811-201210

*206

main33428-20110iNRE150..TERRA;ZRE151..SOL,TERRA¥8,400200811-201210

*201

sub33428-12150¥5,200

main33428-20110iZRE151..6FS¥8,400200902-201001

sub33428-12150¥5,200

33431CSPACER, OUTPUT GEAR

main33431-12010iZZE150¥770200706-200902

main33431-20090iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥940200811-201210

*201,*202,*206

main33431-20090iZRE151..6FS¥940200902-201001

33451SHAFT, REVERSE IDLER GEAR

main33451-02010iZRE151..5F200801-200902

TYPE B:REFER 33-01

sub33451-12021¥1,070

main33451-02010iZZE150200801-200811

sub33451-12021¥1,070

main33451-05010iZZE150200706-200801

TYPE B:SEE 33-01,(L)

sub33451-02010

main33451-05010iZZE150200706-200801

(L)

sub33451-02010

main33451-05020iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

main33451-12021iZRE151..5F¥1,070200706-200801

(J)

main33451-12021iZZE150¥1,070200706-200801

TYPE B:SEE 33-01,(J)

main33451-12021iZRE15#..5FS,6F¥1,070200706-200902

main33451-12021iZRE151..5F¥1,070200712-200902

TYPE A:REFER 33-01

main33451-20050iADE150¥3,410200706-201210

main33451-20060iZRE151..6FS¥1,750200902-201001

main33451-20060iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥1,750200811-201210

*201,*206

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90105-08150iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥110200811-201210

*201,*202,*206

main90105-08150iZRE151..6FS¥110200902-201001

main90109-08097iZZE150¥140200706-200902

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90430-08010iNRE150..TERRA;ZRE151..SOL,TERRA¥70200811-201210

*201,*206

main90430-08010iZZE150¥70200706-201001

main90430-W0002iNRE150,ZRE152;ZRE151..6F..(RS,RT)200811-201210

*202

33462WASHER, REVERSE IDLER THRUST

main33462-12010iZZE150¥210200706-200902

main33462-20060iADE150¥250200706-201210

main33462-20070iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥320200811-201210

*201,*202,*206

sub33462-20090¥70

main33462-20070iZRE151..6FS¥320200902-201001

sub33462-20090¥70

62 parts on this diagram · 4 diagrams in section
