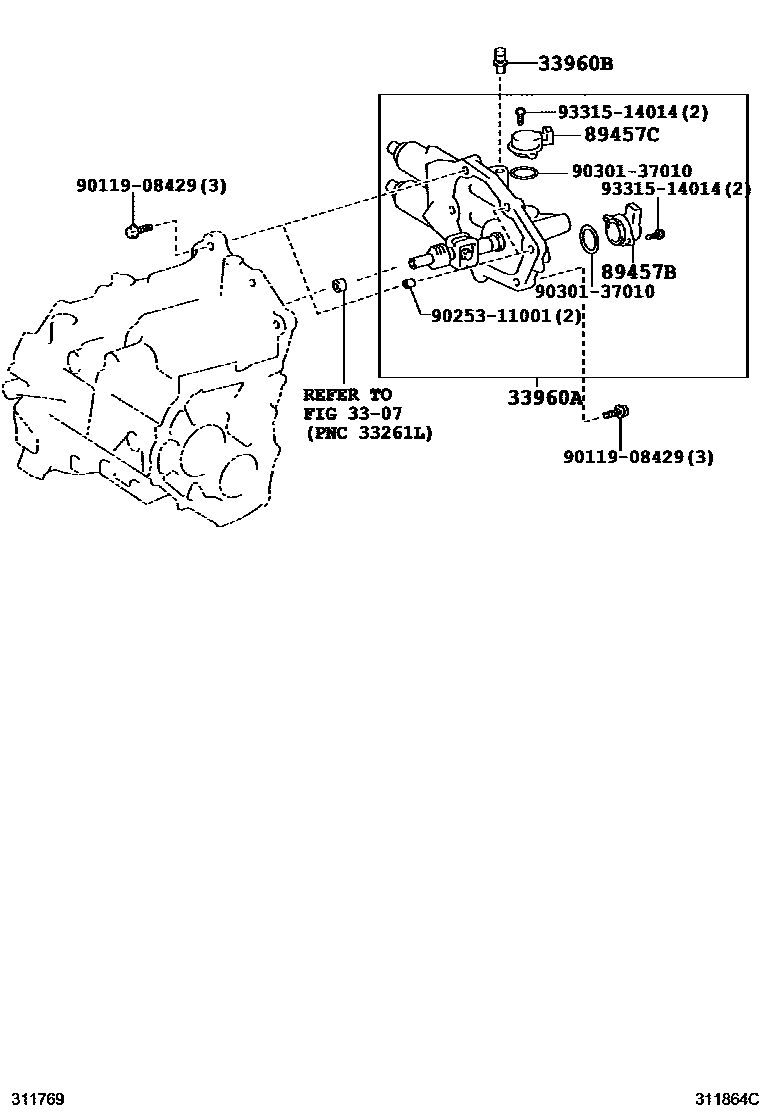

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

0001 1 0002 1

3307

33960AACTUATOR ASSY, SHIFT & SELECT

main33960-12010iZRE151..5FS200706-200902

sub33960-12030

main33960-12022iZRE151..6FS200902-201001

sub33960-12024

33960BBREATHER PLUG, SHIFT & SELECT ACTUATOR

main90930-03133iZRE151..5FS200706-200902

89457BSTROKE SENSOR, SHIFT

main89457-52010iZRE151..5FS200706-200912

89457CSTROKE SENSOR, SELECT

main89457-12020iZRE151..5FS200706-200912

sub89457-12021

9011908429

main90119-08429

9025311001

main90253-11001

9030137010

main90301-37010

9331514014

main93315-14014

9 parts on this diagram · 2 diagrams in section
