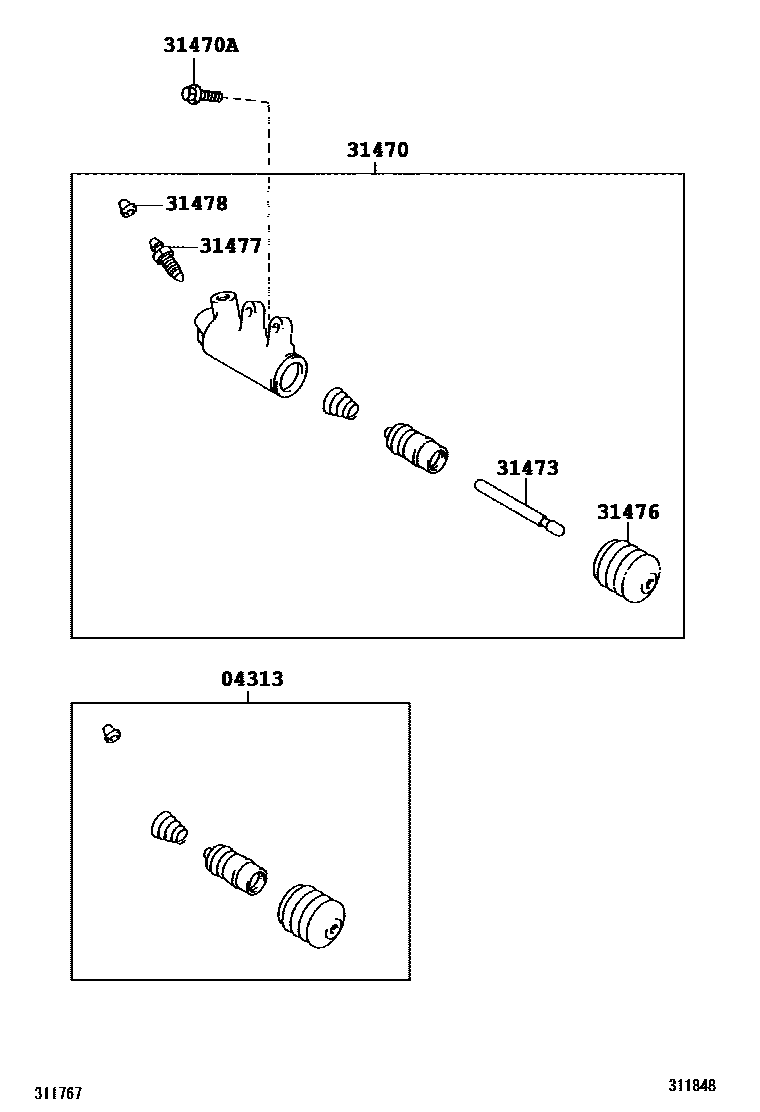

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0004 1 0005 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17040iZZE150¥860200706-200811

main04313-37030iZRE15#..5F,6F¥780200706-200902

main04313-53010iADE150¥780200706-201001

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12140iZZE150¥7,400200706-200811

main31470-12160iZRE15#..5F,6F200706-200902

sub31470-12161

main31470-12190iADE150¥7,100200706-201001

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-W0028iZRE151,ZZE150..5F¥80200706-200902

*8-1.25PX22-17.1

main91611-60822iADE150,ZRE152¥170200706-201001

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE150¥470200706-201001

main31473-22030iZRE15#..5F,6F¥520200706-200902

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iZRE15#..5F,6F¥230200706-201001

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iADE150..RX¥200200706-201001

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iZZE150¥160200706-201001

main31478-30010iNRE150,ZRE152;ZRE151..6F..(RS,RT)¥160200811-201210

*201,*202,*206

7 parts on this diagram · 4 diagrams in section
