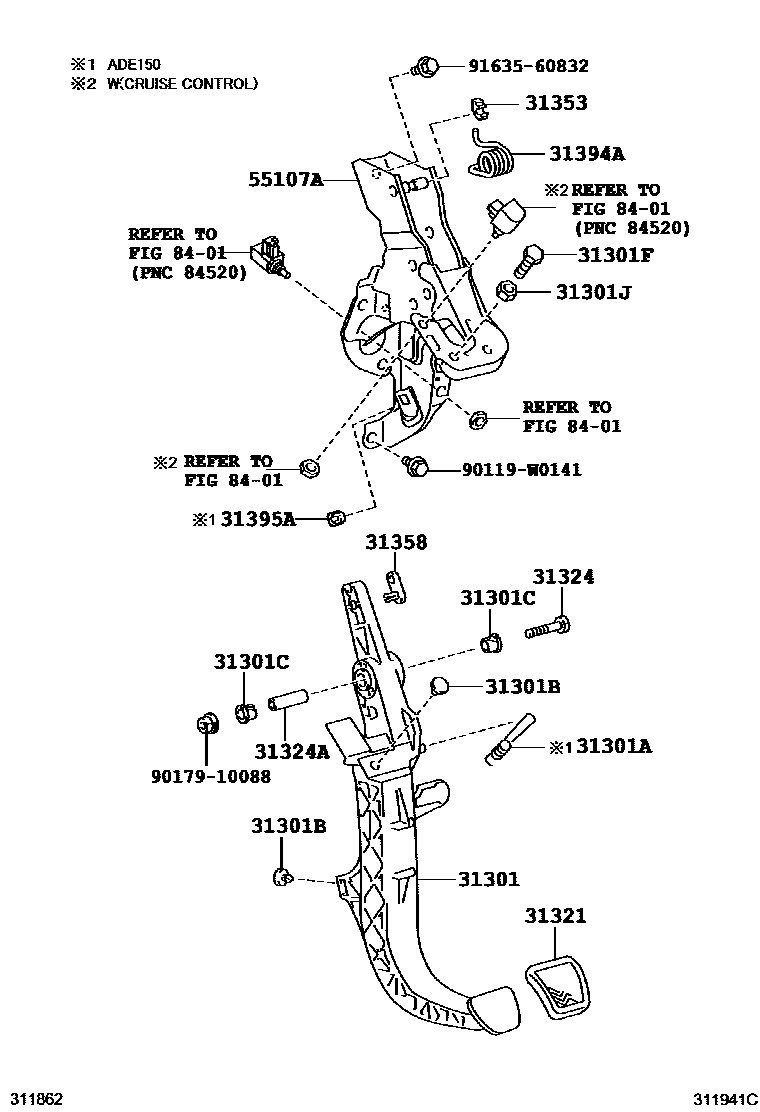

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31311-12370iADE150200706-201205

main31311-12371iADE150,NRE150,ZRE151201205-201210

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZZE150200706-201210

main90905-06079iADE150200706-201210

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZRE15#..5F,6F200706-201210

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZZE150200706-201210

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iZZE150200706-201210

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201210

31321PAD, CLUTCH PEDAL

main31321-42010iZZE150200706-201210

31324SHAFT, CLUTCH PEDAL

main90101-10039iZZE150200706-201210

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iZZE150200706-201001

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iZRE152200706-201001

31358CAP, OVER CENTER SPRING

main31358-42010iADE150..RX200706-201001

31394ASPRING, PEDAL W/HOOK

main31394-12050iADE150..RX200706-201001

main31394-12060iZRE152200706-201001

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iADE150200706-201001

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12270iNRE150..TERRA;ZRE151..SOL,TERRA200706-201205

main55107-12271iNRE150,ZRE151201205-201210

main55107-12290iADE150,ZRE152200706-201205

main55107-12291iADE150201205-201210

8401

90119W0141

main90119-W0141

9017910088

main90179-10088

9163560832

main91635-60832
