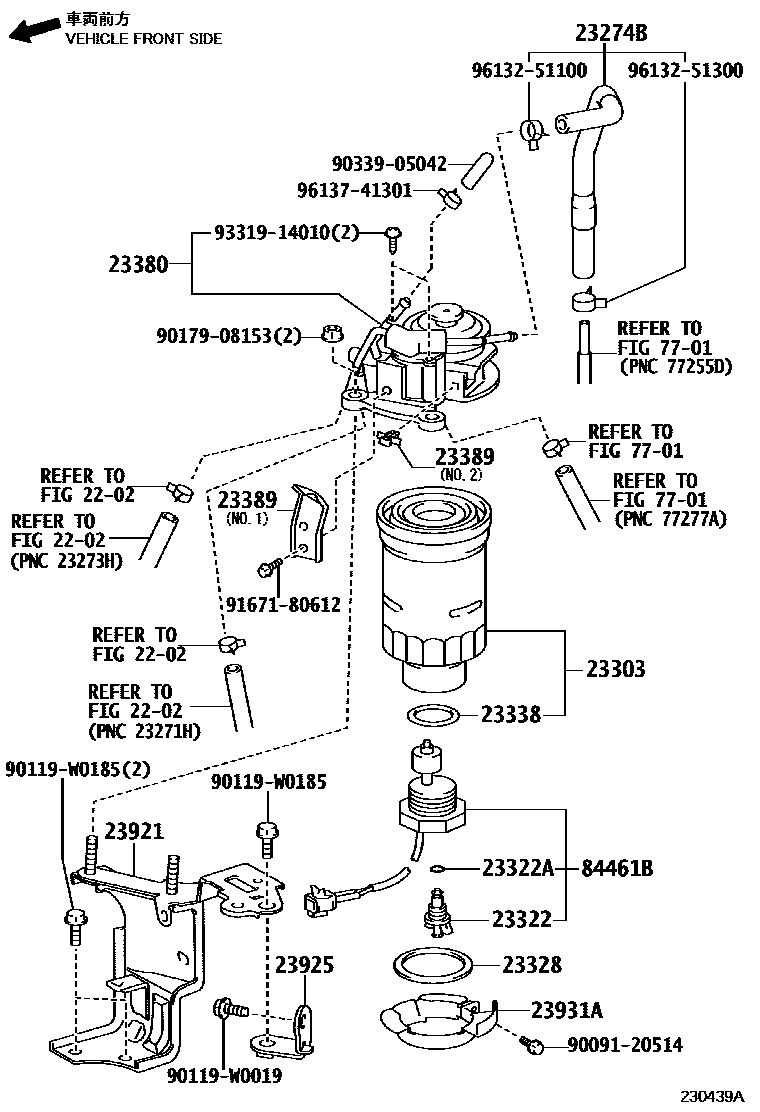

FUEL FILTER

0001 1 0002 1

2202

23274BHOSE, FUEL, NO.3

main23274-26060i1ADFTV..ADE150200706-201001

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-26140i1ADFTV..ADE150200706-200901

sub23390-26160

main23390-26160i1ADFTV..ADE150200901-201210

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1ADFTV..ADE150200706-201001

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1ADFTV..ADE150200706-201001

23328GASKET(FOR FUEL FILTER)

main23385-30160i1ADFTV..ADE150200706-201210

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1ADFTV..ADE150200706-201210

23380CAP ASSY, FUEL FILTER

main23380-0R051i1ADFTV..ADE150200903-201210

sub23380-0R052

sub23380-26170

main23380-26130i1ADFTV..ADE150200706-200901

sub23380-26131

main23380-26131i1ADFTV..ADE150200901-200903

sub23380-26132

23389CLAMP, FUEL FILTER

main23389-26130i1ADFTV..ADE150200706-200903

NO.1

main23389-26130i1ADFTV..ADE150200903-201210

main23389-27130i1ADFTV..ADE150200706-200903

NO.2

23921SUPPORT, FUEL FILTER

main23921-0R010i1ADFTV..ADE150200706-201210

23925STAY, FUEL FILTER SUPPORT

main23925-0R010i1ADFTV..ADE150200706-201210

23931ACOVER, FUEL FILTER

main23931-26010i1ADFTV..ADE150200706-200903

sub23931-26031

main23931-26030i1ADFTV..ADE150200903-201109

sub23931-26031

7701

84461BSWITCH, LEVEL WARNING

main84461-60080iADE150200706-201210

sub84461-60081

9009120514

main90091-20514

90119W0019

main90119-W0019

90119W0185

main90119-W0185

9017908153

main90179-08153

9033905042

main90339-05042

9167180612

main91671-80612

9331914010

main93319-14010

9613251100

main96132-51100

9613251300

main96132-51300

9613741301

main96137-41301

24 parts on this diagram · 2 diagrams in section
