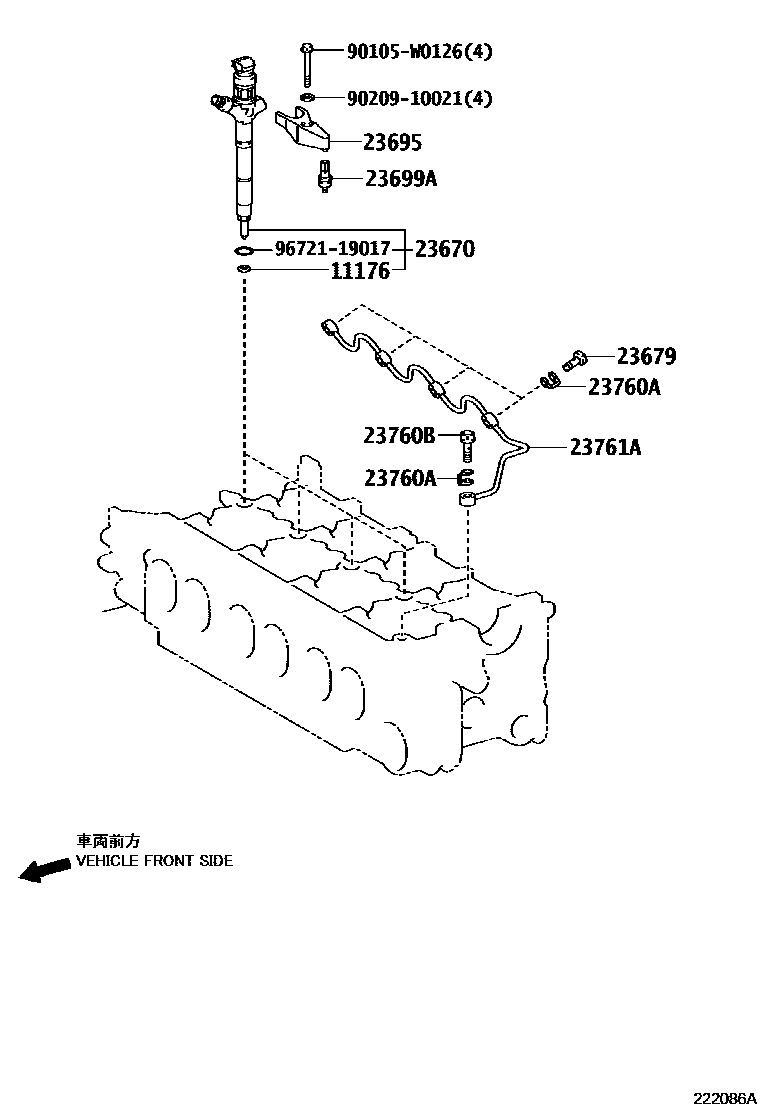

INJECTION NOZZLE

0001 1 0002 1

11176SEAT, INJECTION NOZZLE

main11176-26010i1ADFTV..ADE150¥480200706-200811

sub11176-51010¥480

main11176-26020i1ADFTV..ADE150¥300200903-201001

main11176-26030i1ADFTV..ADE150200811-200903

sub11176-51010¥480

23670INJECTOR ASSY

main23670-09180i1ADFTV..ADE150200706-200712

sub23670-09280

main23670-09280i1ADFTV..ADE150200712-200903

main23670-29115i1ADFTV..ADE150200903-201001

sub23670-29116

23679SCREW, INJECTOR FOLLOW

main23679-0R010i1ADFTV..ADE150¥550200706-200903

main23679-26020i1ADFTV..ADE150¥370200903-201001

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0R011i1ADFTV..ADE150200706-200707

sub23695-0R012¥0

main23695-0R012i1ADFTV..ADE150¥0200707-200903

main23695-0R021i1ADFTV..ADE150..RX¥1,140200903-201001

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-0R010i1ADFTV..ADE150200706-200903

sub23699-26010¥280

main23699-0R021i1ADFTV..ADE150200903-201001

23760AGASKET

main90904-30008i1ADFTV..ADE150¥360200706-201001

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main90401-08016i1ADFTV..ADE150¥260200706-200903

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-0R011i1ADFTV..ADE150200706-200901

sub23761-26010

main23761-0R040i1ADFTV..ADE150200903-201001

(L)

main23761-26010i1ADFTV..ADE150200901-200903

main23761-26030i1ADFTV..ADE150¥8,400200903-201001

(J)

90105W0126

main90105-W0126

9020910021

main90209-10021¥90

9672119017

main96721-19017¥160
