WATER PUMP

0001 1 0002 1 0003 1 0004 1

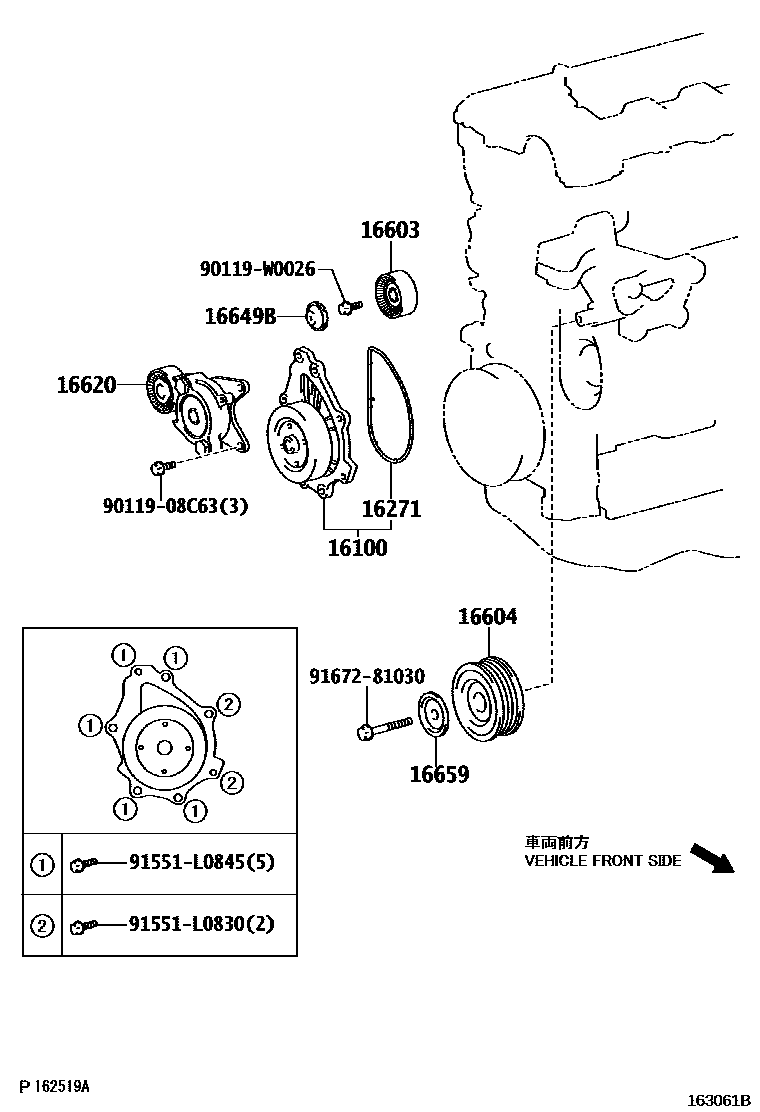

16100PUMP ASSY, ENGINE WATER

main16100-09310i4ZZFE..ZZE150200706-200811

(L)

sub16100-29415

main16100-09340i1ADFTV..ADE150200706-201001

sub16100-09341

main16100-09500i1ZR#,2ZRFE..ZRE15#..RS,RT,RX200810-200909

(L)

sub16100-09501

sub91551-80825

main16100-09501i1ZRFAE..ZRE151200909-201001

(L)

sub16100-09502

main16100-29415i4ZZFE..ZZE150200706-200811

(J)

main16100-39465i1ZR#,2ZRFE..ZRE15#..RS,RT,RX200706-200906

(J)

sub16100-39466

sub91551-80825

main16100-39466i1ZR#,2ZRFE..ZRE15#..RS,RT,RX200906-201001

(J)

main16100-80004i1NRFE..NRE150..TERRA200811-201210

sub16100-80010

sub91552-81050

16271GASKET, WATER PUMP

main16271-26010i1ADFTV..ADE150200706-201001

main16271-37010i1ZRFAE..ZRE151200706-201211

main16271-47031i1NRFE..NRE150..TERRA200811-201210

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0R010i1ADFTV..ADE150200706-201001

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-26011i1ADFTV..ADE150200706-201001

sub16604-26012

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0R010i1ADFTV..ADE150200706-201001

main16620-22012i4ZZFE..ZZE150200706-200811

sub16620-22013

main16620-47010i1NRFE..NRE150..TERRA200811-201210

16649BPLATE, IDLER PULLEY COVER

main16649-0R010i1ADFTV..ADE150200706-201001

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-26010i1ADFTV..ADE150200706-201001

9011908C63

main90119-08C63

90119W0026

main90119-W0026

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167281030

main91672-81030

12 parts on this diagram · 4 diagrams in section
