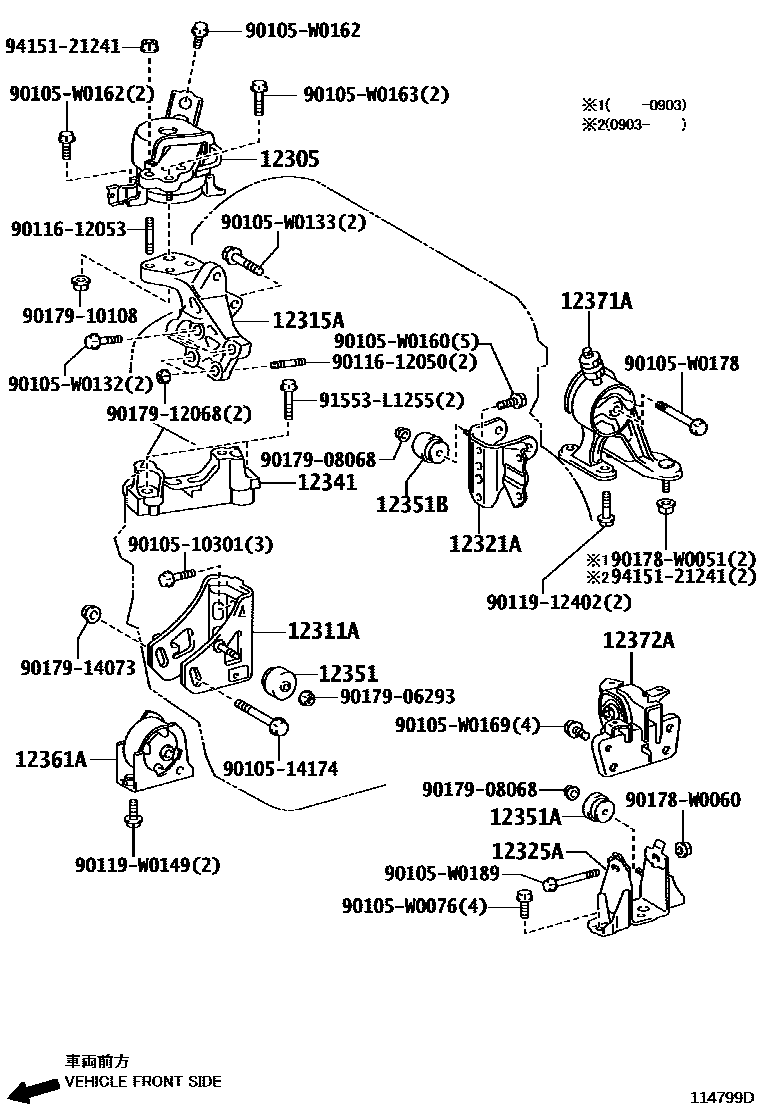

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0D070i4ZZFE..ZZE150200706-200811

main12305-0D100i1ZRFE,2ZRFE..ZRE15#200706-200709

sub12305-0T070

main12305-0R020i1ADFTV..ADE150200706-201001

main12305-0T070i1ZRFE,2ZRFE..ZRE15#200710-201001

main12305-0Y020i1NRFE..NRE150..TERRA200811-201001

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0D140i4ZZFE..ZZE150200706-200811

main12311-0D150i1ZRFE,2ZRFE..ZRE15#200706-200902

main12311-0R010i1ADFTV..ADE150..RX200706-201001

main12311-0T120i1ZR#,2ZRFE..ZRE15#..RS,RT,RX200811-201001

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0R020i1ADFTV..ADE150200706-201001

main12315-22020i4ZZFE..ZZE150200706-200811

main12315-37030i1ZRFAE..ZRE151200706-201001

main12315-47040i1NRFE..NRE150..TERRA200811-201001

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0D200i4ZZFE..ZZE150200706-200811

main12321-0D210i1ZRFE,2ZRFE..ZRE15#200706-200902

main12321-0R010i1ADFTV..ADE150200706-201001

main12321-0T130i1ZR#,2ZRFE..ZRE15#..RS,RT,RX200902-201001

main12321-0Y010i1NRFE..NRE150..TERRA200811-201001

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0D040i1ZRFE,2ZRFE..ZRE15#200706-200902

main12325-0R010i1ADFTV..ADE150200706-200902

sub12325-0R050

main12325-0R050i1ADFTV..ADE150200902-201001

main12325-0T140i1ZRFAE..ZRE151200902-201001

main12325-0Y020i1NRFE..NRE150200811-201001

12341SPACER, ENGINE MOUNTING

main12341-26010i1ADFTV..ADE150200706-200801

sub12341-26011

main12341-26011i1ADFTV..ADE150200802-201001

12351DAMPER, ENGINE MOUNTING

main12351-0D080i1ZRFE,2ZRFE..ZRE15#200706-200902

main12351-0T090i1ZRFAE..ZRE151200811-201001

main12351-63010i1ADFTV..ADE150200706-201001

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-0R010i1ADFTV..ADE150..RX200706-201001

12351BDAMPER, ENGINE MOUNTING

main12351-0D060i4ZZFE..ZZE150200706-200811

main12351-0R010i1ZRFAE..ZRE151200706-201001

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0D180i1ZRFAE..ZRE151200706-201001

main12361-0R020i1ADFTV..ADE150200706-200708

main12361-0R050i1ADFTV..ADE150..RX200708-201001

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0D180i1NRFE..NRE150200706-201001

main12371-0R020i1ADFTV..ADE150200706-201001

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0D140i1ZRFE,2ZRFE,4ZZFE..ZRE15#,ZZE150..5F,6F200706-200902

main12372-0D200i1ZRFE,2ZRFE..ZRE15#..5F,6F200709-200902

main12372-0R020i1ADFTV..ADE150200706-201001

main12372-0T070i1ZRFAE..ZRE151..6FS200902-201001

main12372-0T130i1ZRFE,2ZRFE..ZRE15#200902-201001

main12372-0Y020i1NRFE..NRE150200811-200812

sub12372-0Y021

main12372-0Y020i1NRFE..NRE150200812-200906

(L)

sub12372-0Y021

main12372-0Y021i1NRFE..NRE150200906-201001

main12372-47040i1NRFE..NRE150200812-200906

(J)

9010510301

main90105-10301

9010514174

main90105-14174

90105W0076

main90105-W0076

90105W0132

main90105-W0132

90105W0133

main90105-W0133

90105W0160

main90105-W0160

90105W0162

main90105-W0162

90105W0163

main90105-W0163

90105W0169

main90105-W0169

90105W0178

main90105-W0178

90105W0189

main90105-W0189

9011612050

main90116-12050

9011612053

main90116-12053

9011912402

main90119-12402

90119W0149

main90119-W0149

90178W0051

main90178-W0051

90178W0060

main90178-W0060

9017906293

main90179-06293

9017908068

main90179-08068

9017910108

main90179-10108

9017912068

main90179-12068

9017914073

main90179-14073

91553L1255

main91553-L1255

9415121241

main94151-21241

36 parts on this diagram · 5 diagrams in section
