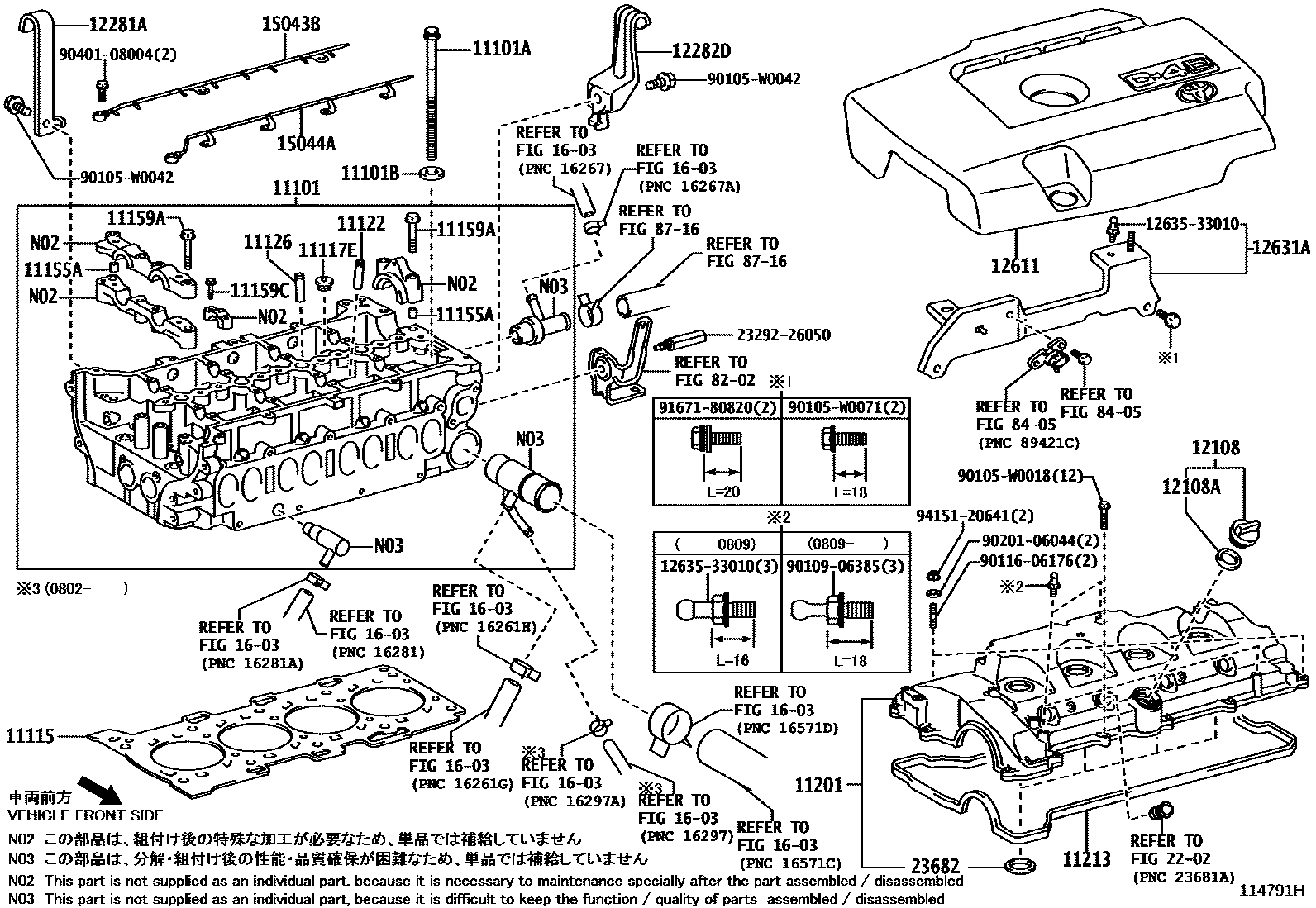

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
(L)
(L)
(L)
(J)
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
MARKA,REFER REPAIR MANUAL
MARKB,REFER REPAIR MANUAL
MARKC,REFER REPAIR MANUAL
MARKD,REFER REPAIR MANUAL
MARKE,REFER REPAIR MANUAL
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
O/S 0.05
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
NO.1
NO.2
(J)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
*6-1.0PX32-18
*6-1.0PX30-18
(J)
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
12108CAP SUB-ASSY, OIL FILLER
(J)
*149,*148
12108AGASKET(FOR OIL FILLER CAP)
*149,*148
(J),(L)
(J)
12281AHANGER, ENGINE, NO.1
W/O(PAINTED)
12282DHANGER, ENGINE, NO.2
W/O(PAINTED)
12631ABRACKET, ENGINE COVER
15043BPIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, RH
15044APIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, LH
1603
2202
23682GASKET, NOZZLE HOLDER
8202
8405
8716
1263533010JOINT, ENGINE COVER
2329226050PROTECTOR, FUEL HOSE
main23292-26050
90105W0018
main90105-W0018
90105W0042
main90105-W0042
90105W0071
main90105-W0071
9010906385
9011606176
9020106044
9040108004
9167180820
9415120641
