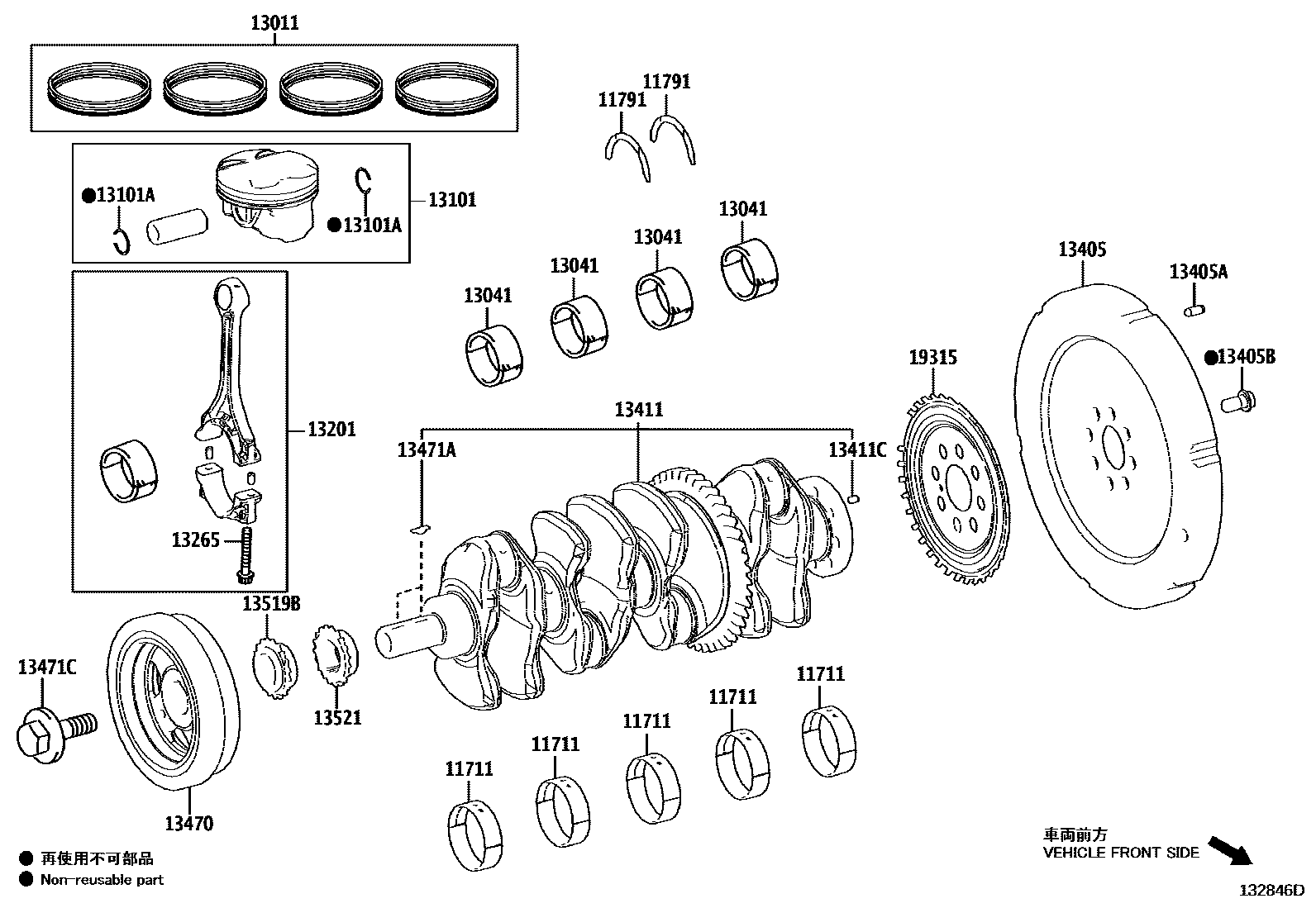

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
MARK 1,*132:REFER R/M
MARK 2,*132:REFER R/M
MARK 3,*132:REFER R/M
MARK 4,*132:REFER R/M
MARK 5,*132:REFER R/M
MARK 6,*132:REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK4,(J),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK 1,*613:REFER R/M
MARK 2,*613:REFER R/M
MARK 3,*613:REFER R/M
MARK 4,*613:REFER R/M
MARK 5,*613:REFER R/M
MARK 6,*613:REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,*132
STD
STD
STD,*613
13011RING SET, PISTON
STD,*132
STD,(J),*613
STD
STD
STD,(L),*613
STD,*613
13041BEARING, CONNECTING ROD
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK 1,*132:REFER R/M
MARK 2,*132:REFER R/M
MARK 3,*132:REFER R/M
MARK1,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK 1,*613:REFER R/M
MARK 2,*613:REFER R/M
MARK 3,*613:REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,MARK=2X
STD,*613
STD,*132
STD,MARK=2S
STD
STD,*613
13101ARING, HOLE SNAP(FOR PISTON PIN)
*132,*613
*132
*613
13201ROD SUB-ASSY, CONNECTING
(L)
MARK A,*132:REFER R/M
MARK B,*132:REFER R/M
MARK C,*132:REFER R/M
(J)
MARK A,*613:REFER R/M
MARK B,*613:REFER R/M
MARK C,*613:REFER R/M
13265BOLT, CONNECTING ROD
*613
*132
*132,*613
13405FLYWHEEL SUB-ASSY
*613
*132
*132,*613
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
L=18,OD=8,*132
L=18,OD=8,*613
L=18,OD=8,*132,*613
13405BBOLT, FLYWHEEL SETTING
*613
*132,*613
*132
13411CRANKSHAFT
(L)
*132
*132
(J)
*613
*613
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
*132
*613
*132,*613
13470PULLEY ASSY, CRANKSHAFT
*613
*132
*132,*613
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
*132
*613
*132,*613
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
*132,*613
*132
*613
13519GEAR, OIL PUMP DRIVE
(L)
(J)
13519BSPROCKET, OIL PUMP DRIVE
*132
*613
*132,*613
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L),MADE IN TMMNA
(L),MADE IN EUROPE
*132
*613
(J),*613
*132,(J),*613
(J)
(L),*613
19315PLATE, CRANK ANGLE SENSOR, NO.1
*132
*613
*132,*613
(J),*613
(L),*613
