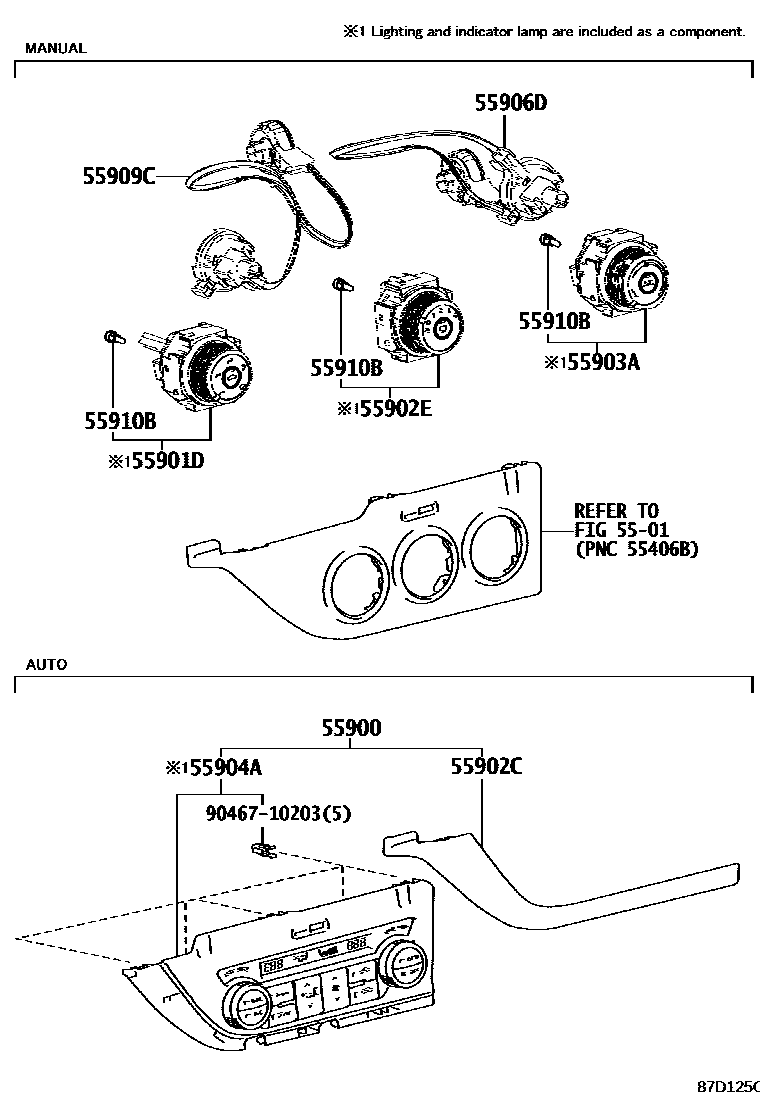

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501
55900CONTROL ASSY, AIR CONDITIONER
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),BLACK,TRIM2#
BLACK,TRIM2#
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),BLACK,TRIM2#
SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
55901DCONTROL SUB-ASSY, HEATER, NO.1
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
55902CPANEL SUB-ASSY, AIR CONDITIONER
BLACK,TRIM2#
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),BLACK,TRIM2#
55902ECONTROL SUB-ASSY, HEATER, NO.2
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
55903ACONTROL SUB-ASSY, HEATER, NO.3
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
55904AHOUSING SUB-ASSY, HEATER CONTROL
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
55910BBULB, HEATER CONTROL
"S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)
9046710203
main90467-10203
11 parts on this diagram · 4 diagrams in section
