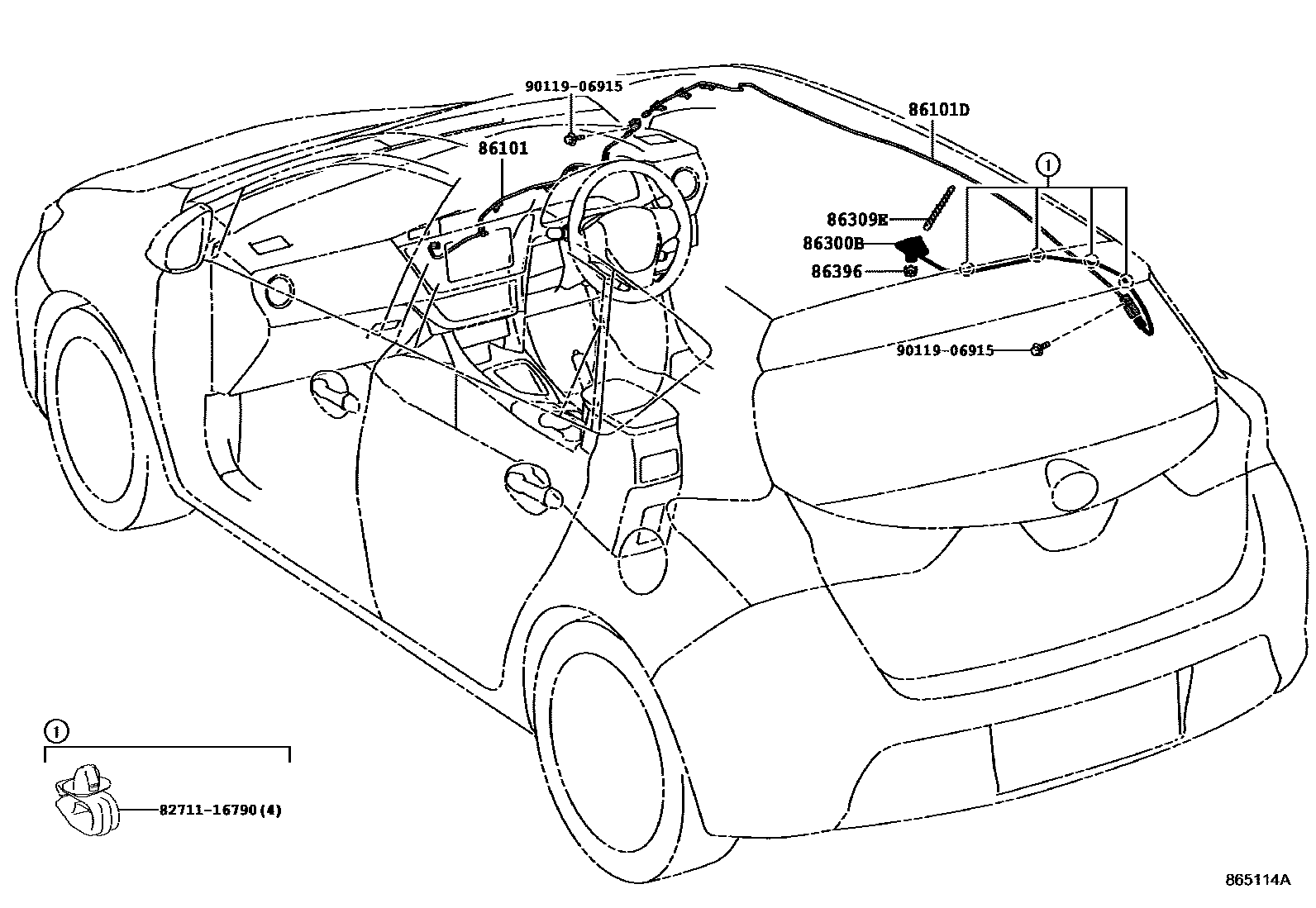

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-12870iNRE180,ZRE18#201208-201503

main86101-12A70iZWE186201604

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-12800iNRE180,ZRE18#201208-201503

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-12A90iNRE180,ZRE18#201208-201503

main86300-12B30-A0iNRE180,ZRE18#,ZWE186201503-201805

SUPER WHITE 2,040

main86300-12B30-A1iNRE180,ZRE18#,ZWE186201503-201805

WHITE PEARL CS.,070

main86300-12B30-B0iNRE180,ZRE18#,ZWE186201503-201805

SILVER ME.,1F7

main86300-12B30-C0iNRE180,ZRE18#,ZWE186201503-201805

BLACK MC.,209

main86300-12B30-D0iNRE180,ZRE18#,ZWE186201503-201805

RED M.M.,3R3

main86300-12B30-E0iNRE180,ZRE18#,ZWE186201503-201805

ORANGE ME.,4R8

main86300-12B30-G0iNRE180,ZRE18#,ZWE186201503-201805

CITRUS M.M.,6W2

main86300-12B30-J1iNRE180,ZRE18#,ZWE186201503-201805

BLUE ME.,8X7

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-47020iNRE180,ZRE18#201208-201503

86396NUT, ANTENNA

main86396-47010iNRE180,ZRE18#201208-201503

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906915

main90119-06915

7 parts on this diagram · 2 diagrams in section
