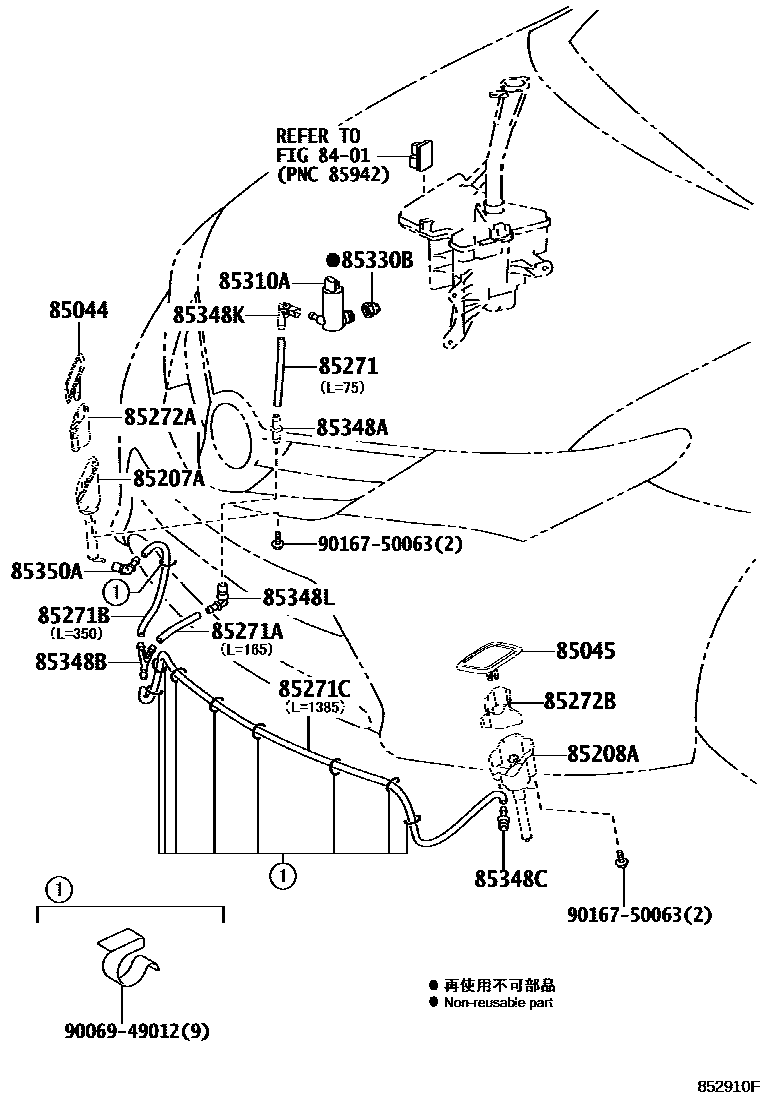

HEADLAMP CLEANER

8401

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85353-12070-A0i201604-201805

SUPER WHITE 2,040

main85353-12070-A1i201604-201805

WHITE PEARL CS.,070

main85353-12070-B0i201604-201805

SILVER ME.,1F7

main85353-12070-C0i201604-201805

BLACK MC.,209

main85353-12070-D0i201604-201805

RED M.M.,3R3

main85353-12070-E0i201604-201805

ORANGE ME.,4R8

main85353-12070-G0i201604-201805

CITRUS M.M.,6W2

main85353-12070-J1i201604-201805

BLUE ME.,8X7

main85353-12090-A0i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,SUPER WHITE 2,040

sub85353-12906

main85353-12090-A1i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,WHITE PEARL CS.,070

sub85353-12906

main85353-12090-B0i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,SILVER ME.,1F7

sub85353-12906

main85353-12090-C0i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,BLACK MC.,209

sub85353-12906

main85353-12090-D0i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,RED M.M.,3R3

sub85353-12906

main85353-12090-E0i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,AVANT-GARDE BRONZE ME.,4V8

sub85353-12906

main85353-12090-E1i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,ORANGE ME.,4R8

sub85353-12906

main85353-12090-J1i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,BLUE ME.,8T7

sub85353-12906

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85354-12070-A0i201604-201805

SUPER WHITE 2,040

main85354-12070-A1i201604-201805

WHITE PEARL CS.,070

main85354-12070-B0i201604-201805

SILVER ME.,1F7

main85354-12070-C0i201604-201805

BLACK MC.,209

main85354-12070-D0i201604-201805

RED M.M.,3R3

main85354-12070-E0i201604-201805

ORANGE ME.,4R8

main85354-12070-G0i201604-201805

CITRUS M.M.,6W2

main85354-12070-J1i201604-201805

BLUE ME.,8X7

main85354-12090-A0i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,SUPER WHITE 2,040

sub85354-12906

main85354-12090-A1i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,WHITE PEARL CS.,070

sub85354-12906

main85354-12090-B0i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,SILVER ME.,1F7

sub85354-12906

main85354-12090-C0i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,BLACK MC.,209

sub85354-12906

main85354-12090-D0i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,RED M.M.,3R3

sub85354-12906

main85354-12090-E0i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,AVANT-GARDE BRONZE ME.,4V8

sub85354-12906

main85354-12090-E1i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,ORANGE ME.,4R8

sub85354-12906

main85354-12090-J1i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM,BLUE ME.,8T7

sub85354-12906

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-02170i201604-201805

main85207-02130i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-02170i201604-201805

main85208-02130i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM

85271HOSE, HEADLAMP CLEANER, NO.1

main85271-0W050i201604

*318:REFER ILLUST.

85271AHOSE, HEADLAMP CLEANER, NO.2

main85271-0W050i201604

*318:REFER ILLUST.

85271BHOSE, HEADLAMP CLEANER, NO.3

main85271-0W050i201604

*318:REFER ILLUST.

85271CHOSE, HEADLAMP CLEANER, NO.4

main85271-0W060i201604

*318:REFER ILLUST.

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-02060i201604-201805

main85272-02070i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM

85272BCLAMP, HEADLAMP CLEANER, NO.2

main85273-02010i201604-201805

main85273-02070i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85280-05050i201604

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90069-20005i201604

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85279-02150i201604

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85287-05110i201604

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85278-05110i201503

HEADLAMP-LED & WITH(*AHB)

main85279-05110i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main85278-05110i201604

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

main85278-05110i201604

85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3

main85278-05110×2i201604

9006949012

main90069-49012

9016750063

main90167-50063

21 parts on this diagram · 2 diagrams in section
