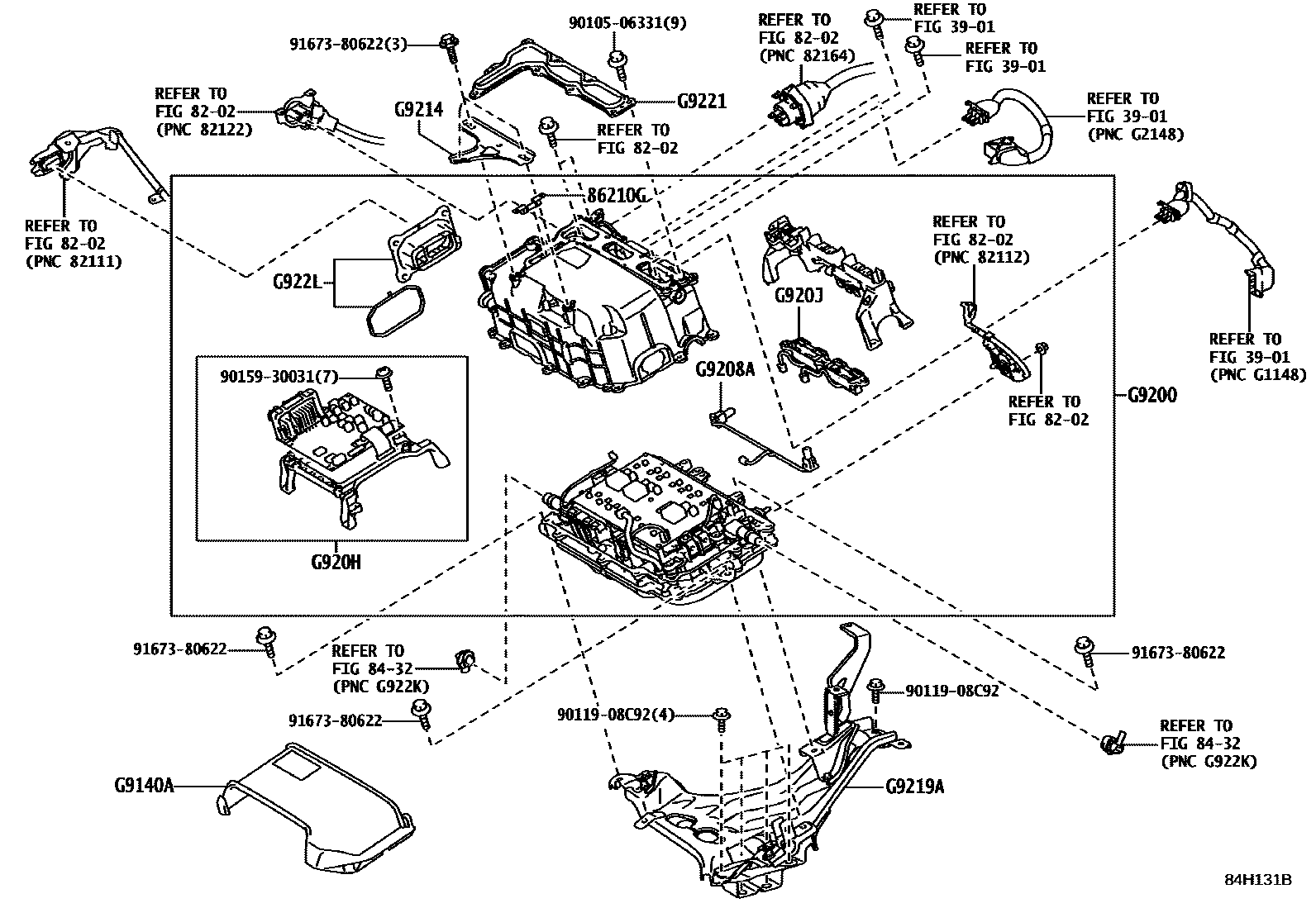

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS 0003 1

3901

8202

8432

86210GFUSE, HIGH VOLTAGE

main90982-11050iZWE186201604-201805

G9140ACOVER ASSY, INVERTER, LH

mainG914047010iZWE186201604

G9200INVERTER ASSY, W/CONVERTER

mainG920049025iZWE186201604

G9208AWIRE SUB-ASSY, INVERTER

mainG920847090iZWE186201604

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H47030iZWE186201604

subG920H-47150

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iZWE186201604

G9214BRACKET, INVERTER, NO.1

mainG921412010iZWE186201604

G9219ABRACKET, INVERTER TRAY

mainG911047030iZWE186201604

G9221COVER, INVERTER

mainG902247041iZWE186201604

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iZWE186201604

9010506331

main90105-06331

9011908C92

main90119-08C92

9015930031

main90159-30031

9167380622

main91673-80622

17 parts on this diagram · 3 diagrams in section
