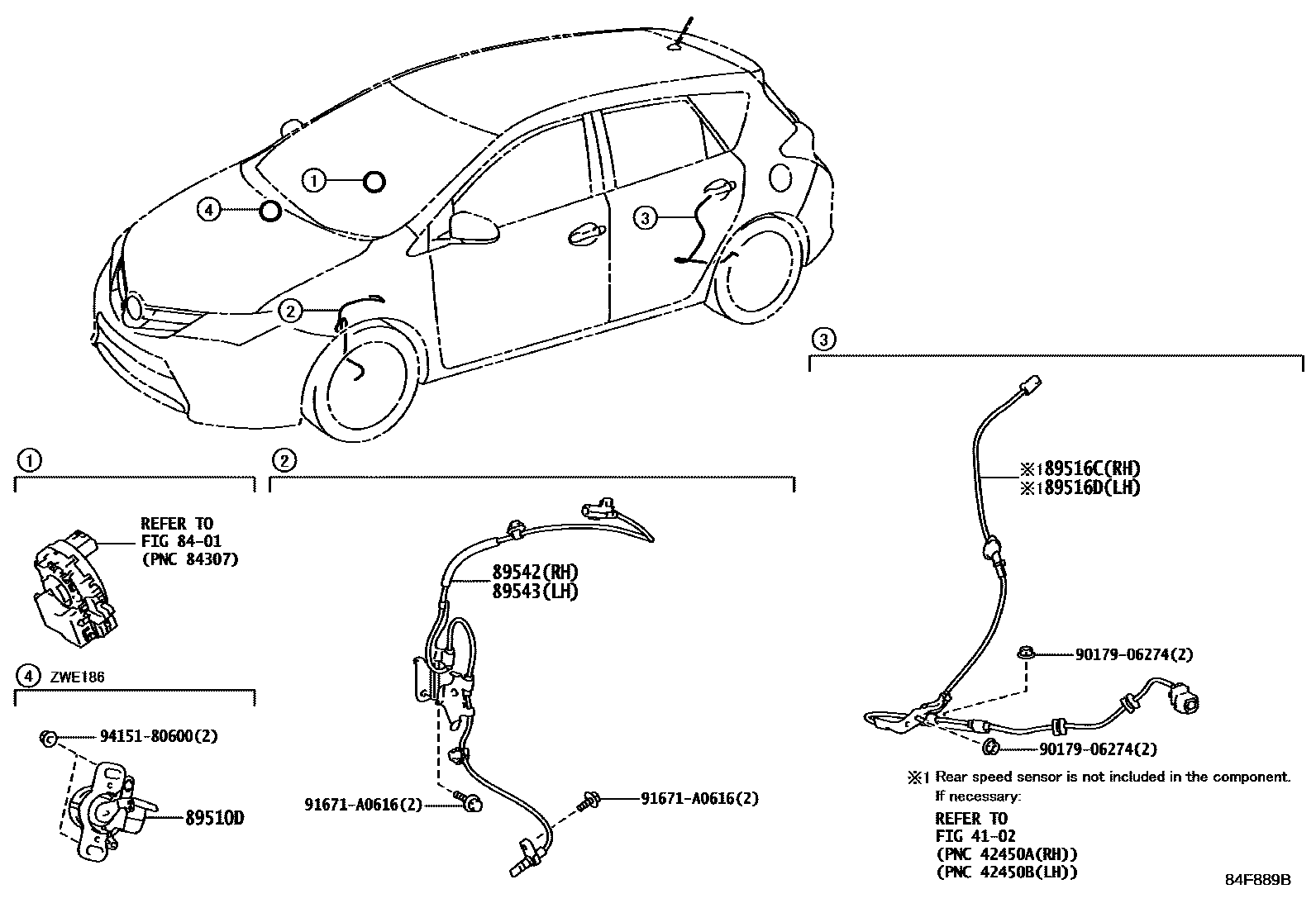

ABS & VSC

0001 1 0002 1

4102

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-20041iZWE186201604

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-12070iNRE180,ZRE18#201208-201503

main89516-12160iZWE186201604

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-12080iNRE180,ZRE18#201208-201503

main89516-12170iZWE186201604

89542SENSOR, SPEED, FRONT RH

main89542-12080iNRE180,ZRE18#201208-201503

89543SENSOR, SPEED, FRONT LH

main89543-12080iNRE180,ZRE18#201208-201503

9017906274

main90179-06274

91671A0616

main91671-A0616

9415180600

main94151-80600

10 parts on this diagram · 2 diagrams in section
