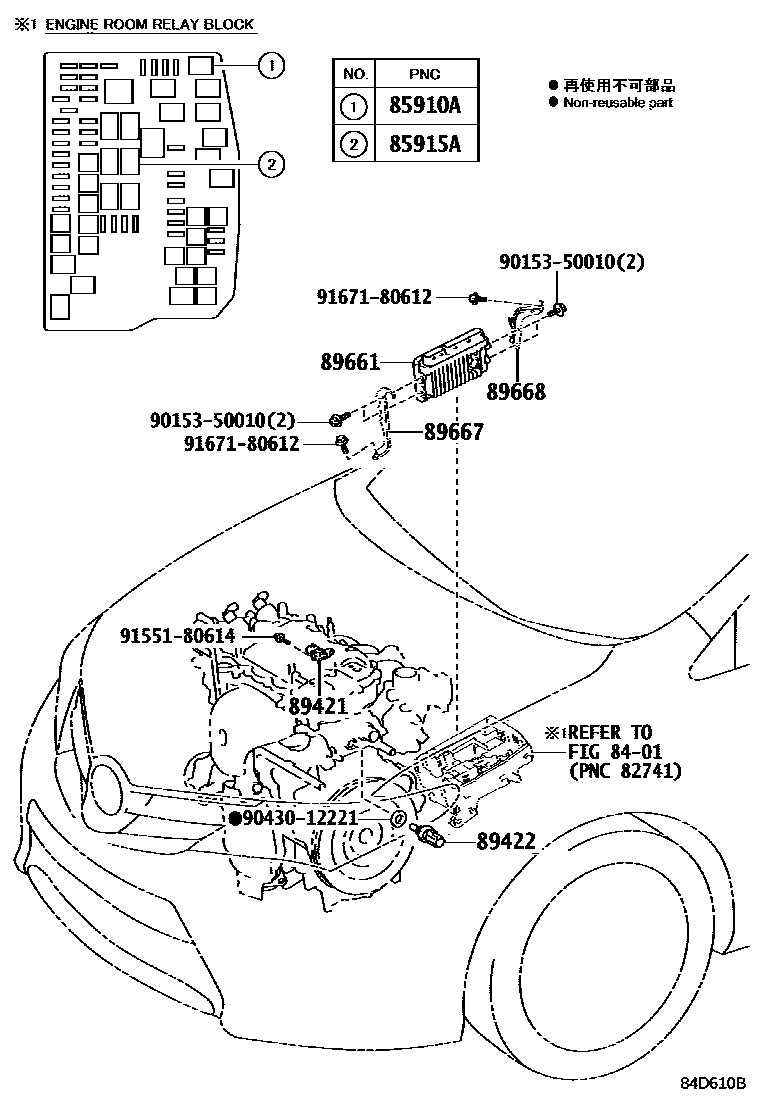

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iNRE180,ZRE18#201208-201503

85915ARELAY, MAIN

main90987-02027iNRE180,ZRE18#201208-201503

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNRE180,ZRE181201208-201805

main89421-47010iZWE186201604-201805

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNRE180,ZRE18#201208-201503

89661COMPUTER, ENGINE CONTROL

main89661-12Q90iNRE180201208-201307

sub89661-12Q91

main89661-12Q91iNRE180201308-201503

main89661-12R20iZRE181..6F201208-201503

main89661-12R50iZRE181..CVT201208-201411

sub89661-12R51

main89661-12R51iZRE181..CVT201412-201503

main89661-12R70iZRE182..6F201208-201503

main89661-12R90iZRE182..CVT201208-201311

sub89661-12R91

main89661-12R91iZRE182..CVT201312-201503

main89661-12U90iZRE182..6F201503

main89661-12V00iZRE182..CVT201503

main89661-12V10iZRE181..6F201503

main89661-12V20iZRE181..CVT201503

main89661-12V50iNRE180201503

main89661-12W70iZWE186201604

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02290iZWE186201604

main89667-12340iNRE180,ZRE18#201208-201503

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02270iZWE186201604

main89668-12270iNRE180,ZRE18#201208-201503

9015350010

main90153-50010

9043012221

main90430-12221

9155180614

main91551-80614

9167180612

main91671-80612

12 parts on this diagram · 3 diagrams in section
