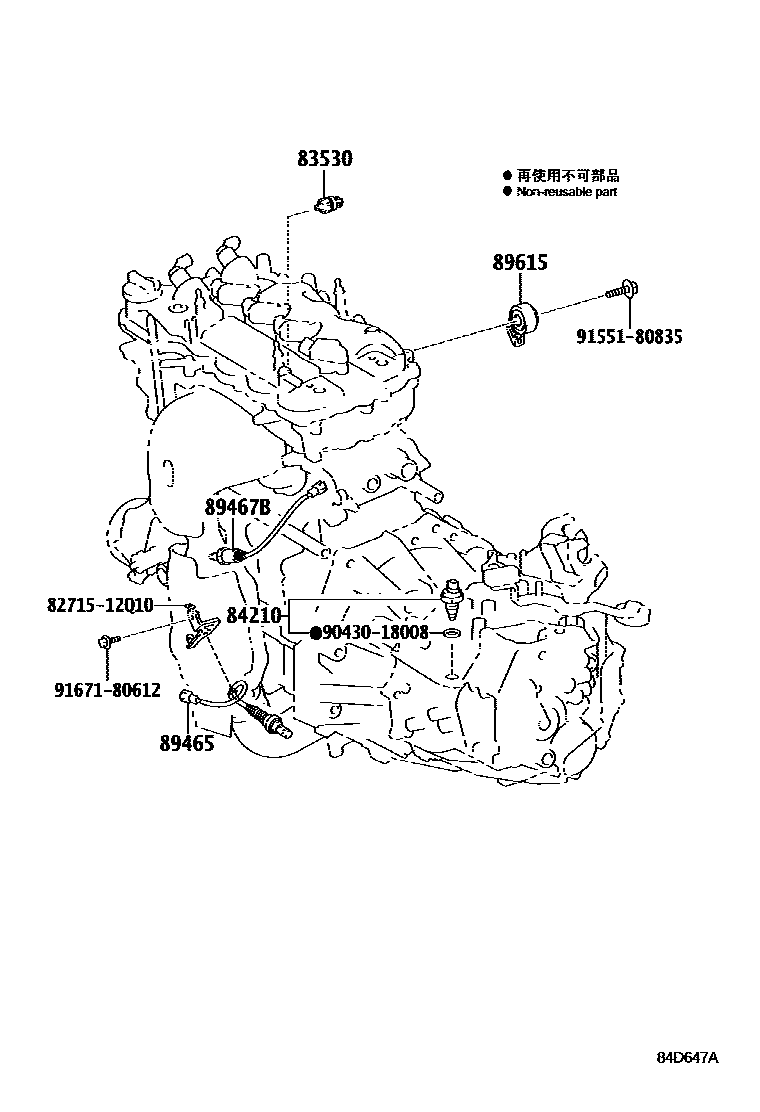

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1STEERING 0012 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZRE18#¥3,150201310-201402

YAZAKI

sub83530-12060¥1,970

main83530-12060iZRE18#¥1,970201503-201805

main83530-28020iZRE18#¥1,970201208-201805

DENSO

main83530-28020iZRE18#¥1,970201402-201503

main83530-60020iZRE18#¥1,970201208-201805

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNRE180,ZRE18#..6F¥1,360201208-201805

89465SENSOR, OXYGEN

main89465-12800iZRE18#¥9,400201208-201503

main89465-12A40iZRE181¥8,500201503

main89465-12A50iNRE180201208-201503

main89465-12B70iNRE180201503

main89465-47080iZWE186¥7,800201604

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZRE181¥13,200201208-201503

main89467-52060iZRE182¥9,900201208-201805

main89467-52110iNRE180¥9,900201208-201805

89615SENSOR, KNOCK CONTROL

main89615-02020iZRE18#¥10,600201208-201503

(L)

main89615-20090iNRE180¥2,370201208-201503

(J)

main89615-20090iNRE180,ZRE18#,ZWE186¥2,370201503

8271512Q10BRACKET,WIRING HARNESS CLAMP

main82715-12Q10

9043018008

main90430-18008¥110

9155180835

main91551-80835¥80

9167180612

main91671-80612¥60

9 parts on this diagram · 12 diagrams in section
