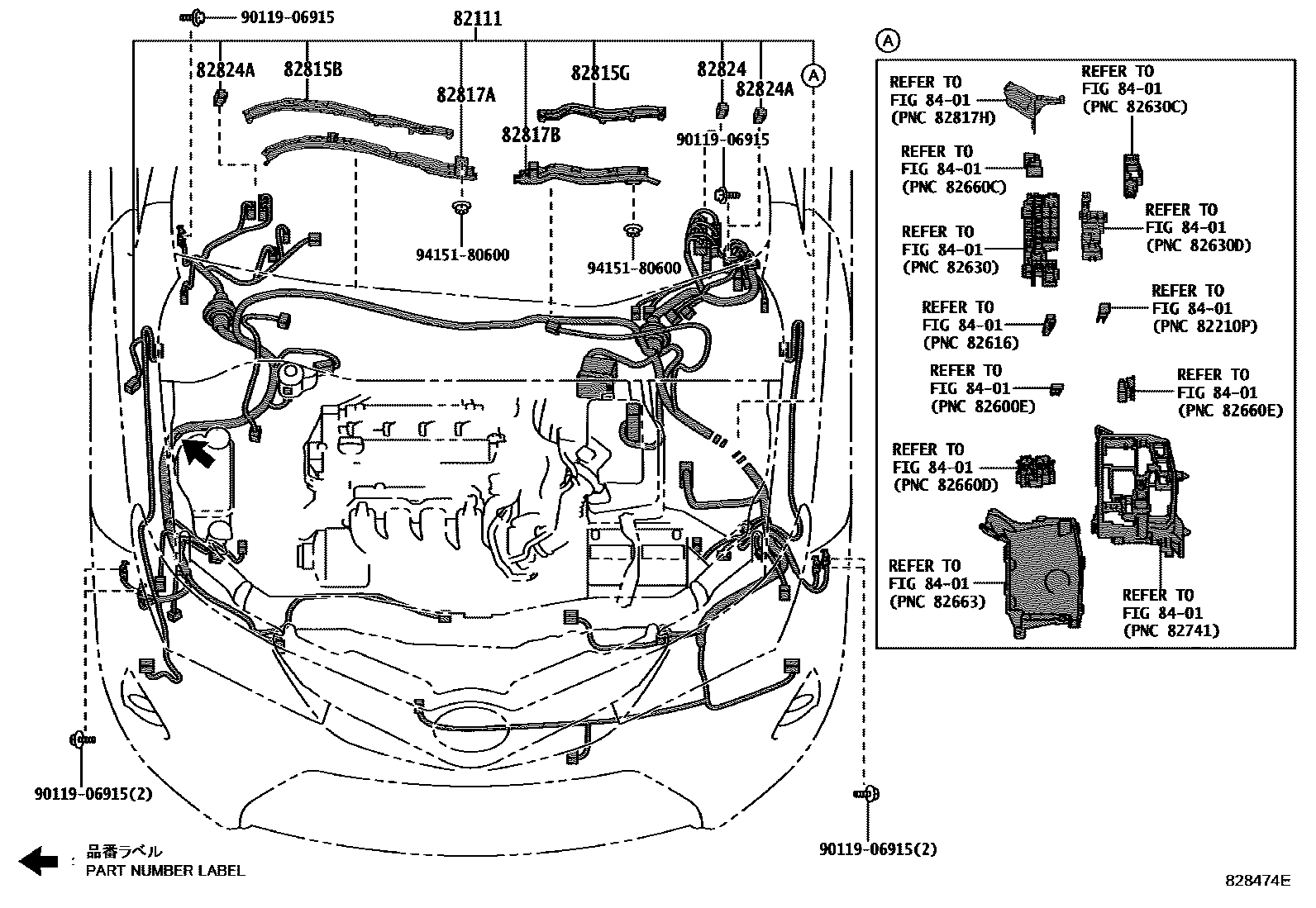

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
sub82111-1HC21
"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM
sub82111-1HC41
"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM
sub82111-1HC51
"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM
sub82111-1HC71
"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM
sub82111-1HC81
sub82111-1HC91
sub82111-1HD11
P/N LABEL=821111HW40
SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),P/N LABEL=821111HW40
WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&HEADLAMP-LED&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONT
WITH(TFT COLOR MULTI INFORMATION DISPLAY&HEADLAMP-LED
WITH(TFT COLOR MULTI INFORMATION DISPLAY&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED &WITH(*AHB)
WITH(TFT COLOR MULTI INFORMATION DISPLAY&PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&HEADLAMP-LED & WITH(*AHB)&AIR CONDITION
P/N LABEL=821111KJ30
82815BCOVER, WIRING HARNESS PROTECTOR
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82824CONNECTOR, WIRING HARNESS
82824ACONNECTOR, WIRING HARNESS
8401
9011906915
main90119-06915
9415180600
main94151-80600
11 parts on this diagram · 16 diagrams in section
