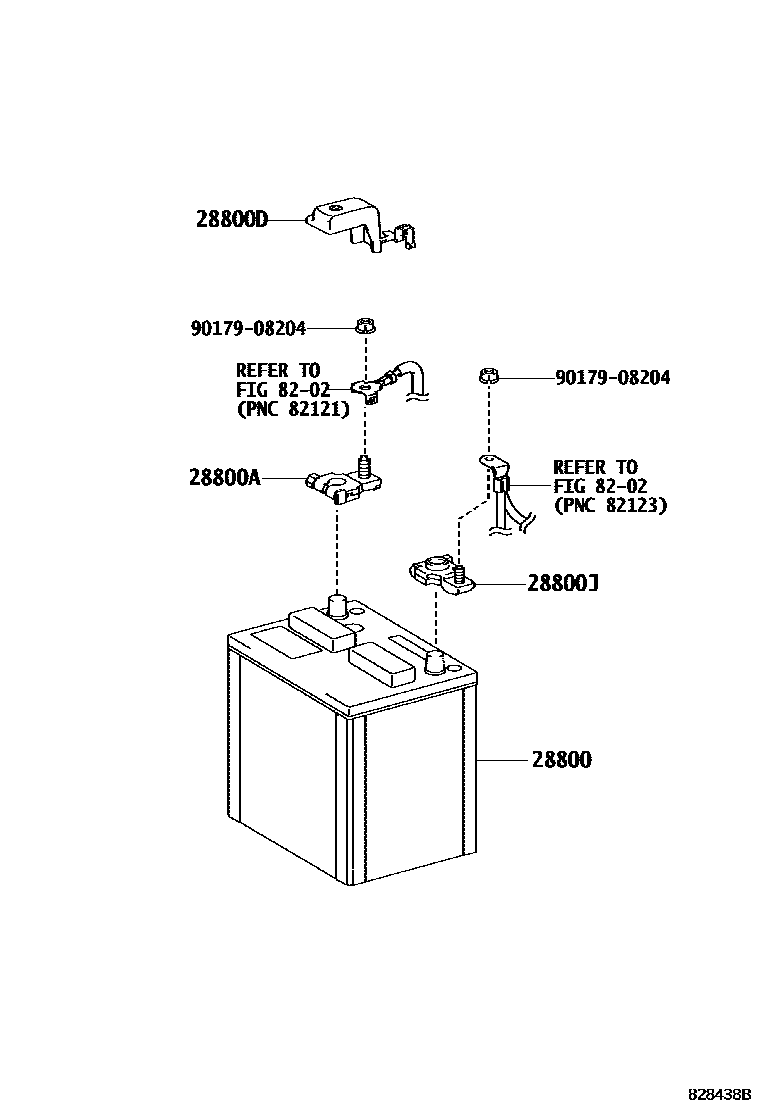

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-37080i2ZRFXE..ZWE186201604-201805

S34B20L-A

sub28800-37081

main28800-42062i1NRFE,1ZRFAE,2ZRFE..NRE180,ZRE18#201208-201805

55D23L

sub28800-42063

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1NRFE,1ZRFAE,2ZRFE..NRE180,ZRE18#201208-201503

main90982-05063i2ZRFXE..ZWE186201604

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i1NRFE,1ZRFAE,2ZRFE..NRE180,ZRE18#201208-201503

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i1NRFE,1ZRFAE,2ZRFE..NRE180,ZRE18#201208-201503

8202

9017908204

main90179-08204

6 parts on this diagram · 5 diagrams in section
